DC 775 Motor 12V-24V 6000-12000RPM, High Torque Low Noise Electric Motor with Bracket for Mini Angle Grinder, Drill

DC 775 Motor 12V-24V 6000-12000RPM 775 Electric Motor Double Ball Bearing High Torque Large Power Low Noise DC Motor with Bracket DIY for Mini Angle Grinder Table Saw Drill Electrical Tools

DC 775 Motor 12V-24V 6000-12000RPM, High Torque Low Noise Electric Motor with Bracket for Mini Angle Grinder, Drill

A good helper for modern industrialization. Rated Voltage: 12V-24V Motor Rated Current: 12A Motor Rated Speed: 6000-12000 10%RPM No-load Current: 0.5A Stall Current: 10A Torque: 0.43N.m Cooling Fan: Yes Pure copper wire winding, no copper clad aluminum. High-quality iron core, refined and fine-turned crafted motor rotor. Permanent magnet ferrite with small temperature coefficient, good temperature stability at high temperatures, high coercivity, high magnetic accumulation, high efficiency and low dynamic losses. The gears are made of high quality steel teeth, heat-treated at 45 , with smooth transmission, wear-resistant, not easy to jam the teeth, and large transmission torque. 775 motor kit, can be used for all kinds of DIY tool making. Table saw, hand drill, lawn mower, cutter and so on.

Key Features

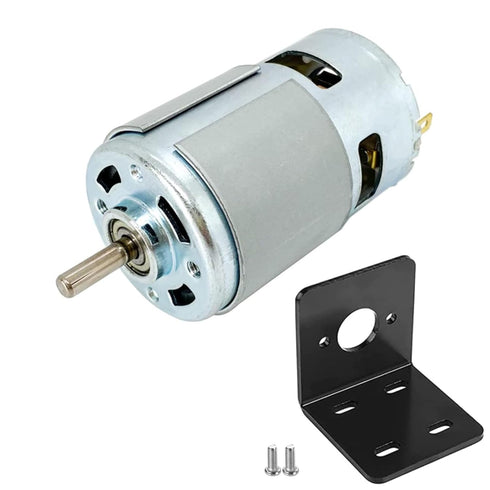

• ✅ [FEATURES] This 775 DC motor has the characteristic of high speed, Large torque, low noise, built-in cooling fan, small size, durable and long service life. It can rotate CW and CCW. Default with motor mounting bracket and 2-In-1 3.2in length flat and Phillips screwdrivers. it is a good choice for DIY power tools and equipment.
• ✅ [QUALITY MATERIAL] This 775 brushed magnet motor adopts integrated forging case, metal back cover, round shaft to increase concentricity, front and rear double ball bearings, internal pure copper winding rotor, 2pcs fan-shaped powerful magnet, built-in cooling fan, high matching Magnetic protection ring, Use high-quality carbon brushes.

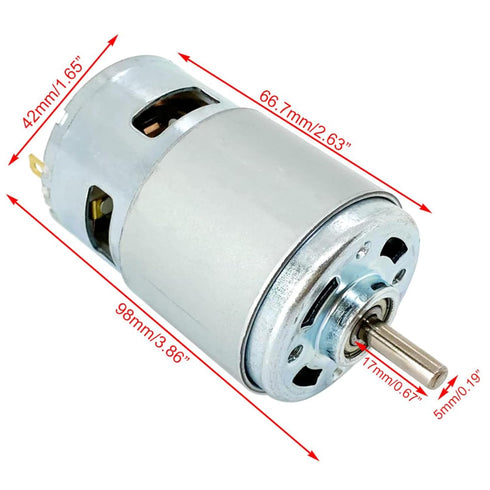

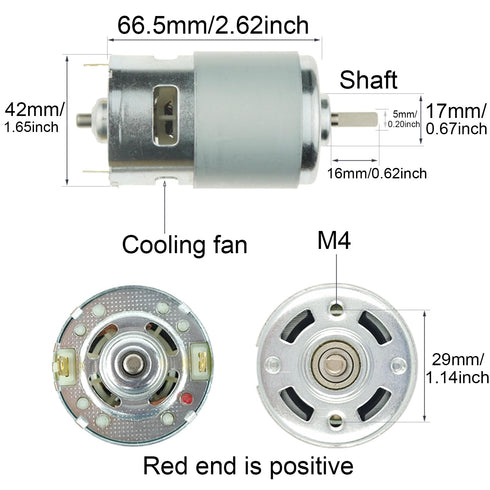

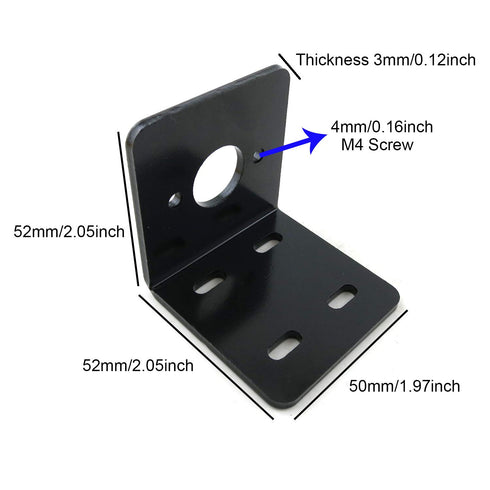

• ✅ [MOTOR SPECIFICATION] Rated Voltage: 12V-24V; Rated Speed: 6000-12000 10% RPM; No-load current: about 0.5A; Stall current: 10A; Motor body diameter: 1.65", Motor body length: 2.62"; Shaft length: 0.63", Shaft diameter: 0.196"; Mounting hole size: M4, Mounting Hole Pitch: 1.14"; The specification of L- bracket: Length: 1.97", Width: 2.0", Height: 2.0", Mounting hole diameter: M4, Thickness of bracket: 0.118".

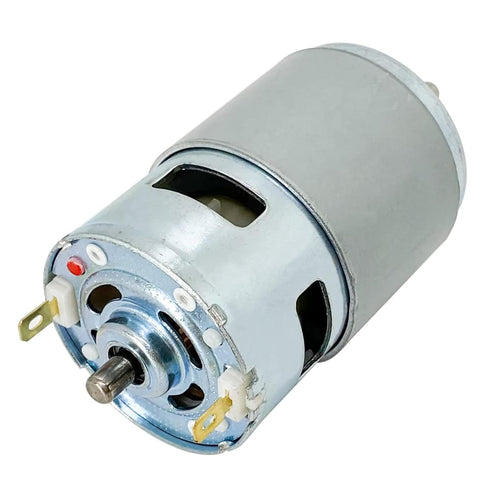

• ✅ [USE TIPS] The power supply voltage is DC 12V-24V. The starting current should be 10A or more. It is recommended to use a power supply such as a switching power supply or a battery. Motor is a high speed motor, please securely connect the tool accessories. Prevent accidents. Please connect the polarity correctly (the terminal near the red silicone point is positive), otherwise it will damage the motor.

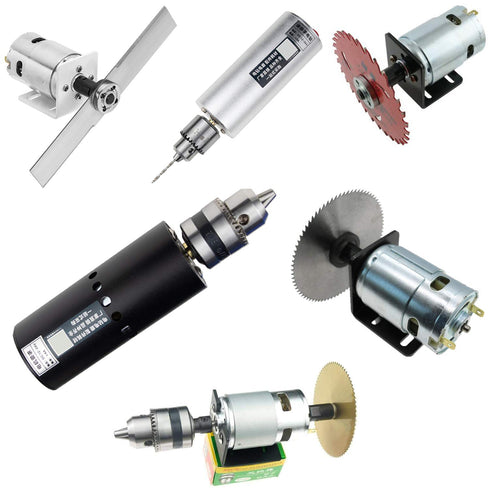

• ✅ [WIDE APPLICATION] This electric motor is perfect for electrical tools DIY, eg. small electric drill, angle grinder, small cutting machine, small table saw, paper shredder, electric fans, electric screwdriver, electric cleaners, electric fan toys, juice machine, vacuum etc. and other hand tools, power tools.

✅ Product Dimensions: 2.63 x 2.63 x 1.65 inches; 12.35 ounces
