DC/AC Multi Meter, Mobile Phone Repair Digital Multimeter Voltage Resistance Diode hFE Tester

DC/AC Multi Meter Mobile Phone Repair Digital Multimeter Voltage Resistance Diode hFE Tester Smart Multimeter Electronic Service Tool KM-DM09A

DC/AC Multi Meter, Mobile Phone Repair Digital Multimeter Voltage Resistance Diode hFE Tester

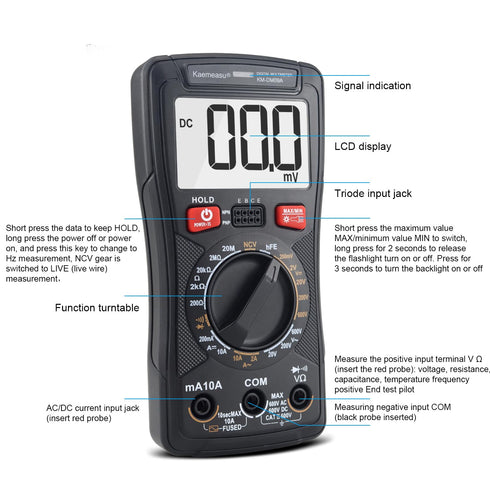

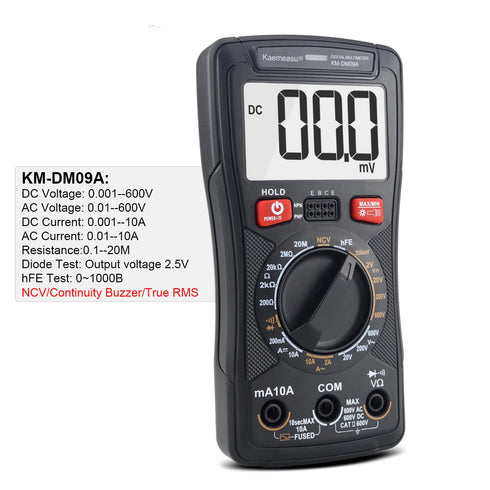

Basic function Model:KM-DM09A DC Voltage:200mV/2V/200V/600V AC Voltage:20V/200V/600V DC Current:200mA/10A AC Current:2A/10A Resistance:200 /2k /20k /2M /20M Express function Display:1999(3 1/2) Diode Test: Continuity Buzzer: hFE Test: Non contact measurement NCV: Full symbol display: MAX/MIN: True RMS: Data Hold: Flashlight: Back light: Auto Power Off:

Key Features

• ✅ This series of meters is a high reliability digital multimeter with stable performance and AAA battery driven. The instrument adopts full symbol, 23mm high LCD display, and the reading is clear; Backlight display and overload protection function, more convenient to use.
• ✅ This series of instruments can be used to measure the true RMS of DC voltage and AC voltage, DC current and AC current, resistance, triode, diode/on-off, etc., which is more convenient for maintenance personnel. The whole machine takes double integral A/D conversion as the core, which is a tool and instrument with superior performance.
• ✅ On-off indicator - sound/light dual alarm Loud sound prompt when the switch is on and off, also has the on-off alarm light.
• ✅ An repair artifact that can measure large capacitors Before testing the capacitor, fully discharge the capacitor to prevent damage to the meter (note: input voltage is prohibited in this gear)
• ✅ NCV - non-contact voltage measurement, be safer Place the top of the instrument close to a place with AC signal, when the transmitter detects the voltage, it will sound an audible and visual alarm.
• ✅ Accurate measurement of arbitrary waveform AC voltage - True RMS Measure arbitrary waveform voltage. Accurate measurement of non-sinusoidal power is a special capability.
• ✅ Transistor hFE test Insert the transistor pin into the corresponding hole and set it to the HEF gear to measure the magnification of the transistor.
• ✅ Human body functional design provides a stronger grip, intelligent anti-burning in all gears, wrong gear anti-burn, overload protection
