DC Miniature Circuit Breaker, 2 Pole 600V 20 Amp Isolator for Solar PV System, DIN Rail Mount
SKU: PGABL1458164
VENDOR: CHTAIXI
You Save: $2.82 (12%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.
DC Miniature Circuit Breaker, 2 Pole 600V 20 Amp Isolator for Solar PV System, Thermal Magnetic Trip, DIN Rail Mount DC Disconnect Switch C20
DC Miniature Circuit Breaker, 2 Pole 600V 20 Amp Isolator for Solar PV System, DIN Rail Mount

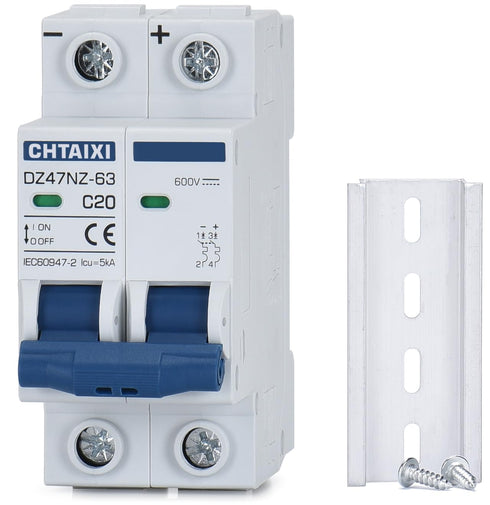

Main product name: DZ47NZ-63 product type DC Miniature circuit breaker rated operational voltage: 600 V DC rated current [In]: 10 A 16 A 20 A 25 A 32 A 40 A 50 A 63 A Poles: 2 P trip unit technology: Thermal-magnetic curve code: C breaking capacity: 5 kA Ics=Icu Complementary rated impulse withstand voltage [Uimp]: 4 kV mechanical durability: 10000 cycles electrical durability: 2200 cycles mounting support: 35 mm DIN rail net weight: 0.190 kg tightening torque: 2.5 N.m standard: IEC60947-2 operating temperature: -13 F(-25 ) ~ 140 F(60 ) Installation tips Pay attention to polarity. Select wire size according to rated current. package includes: 1 x DC miniature circuit breaker 1 x DIN rail 2 x screws
Key Features

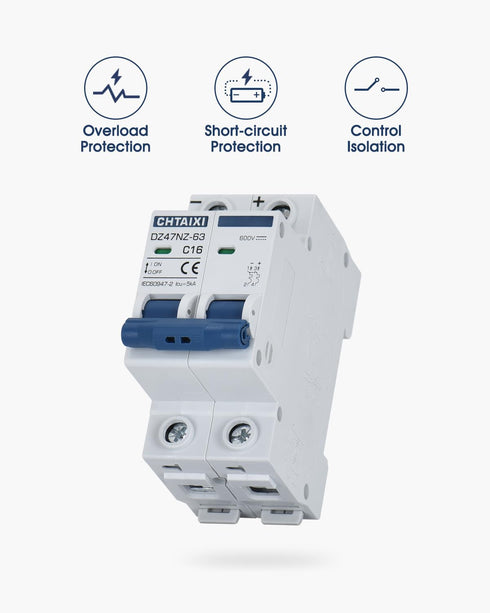

- ✅ FUNCTIONS: Used to protect power distribution facilities from overload and short-circuit damage, and can also be used for control and isolation.

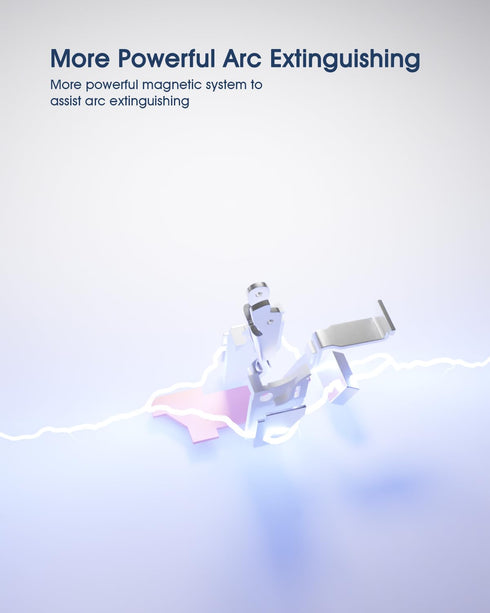

- ✅ ARC EXTINGUISHING: These DC miniature circuit breakers have a more powerful arc extinguishing magnetic system to help extinguish arcs.

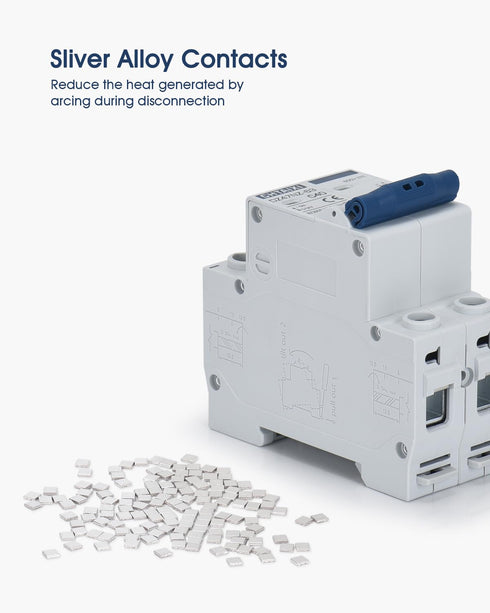

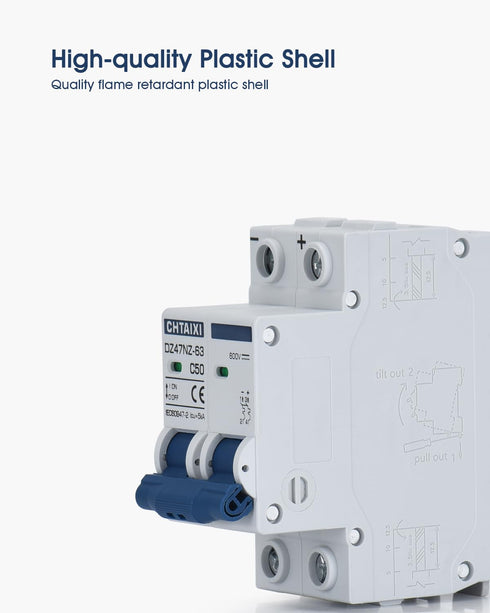

- ✅ QUALITY: Silver alloy contacts, flame retardant material shell, color indicators.
- ✅ APPLICATION: Used in DC power system, ship electric power system, solar photovoltaic system, or other DC system.
- ✅ INSTALLATION: 35mm DIN rail mount, Screw clamp wires(soft silicone wire needs to crimp fixed the wire end with copper crimp first).

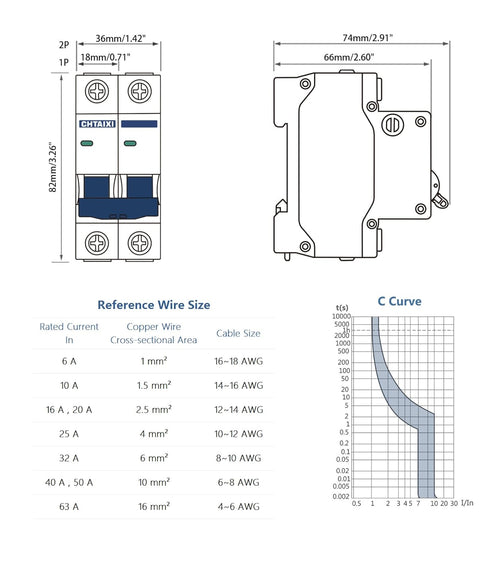

✅ Product Dimensions: 2.95 x 1.42 x 3.15 inches; 6.6 ounces
