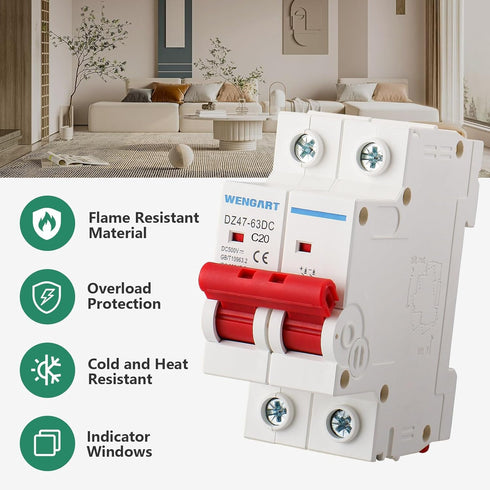

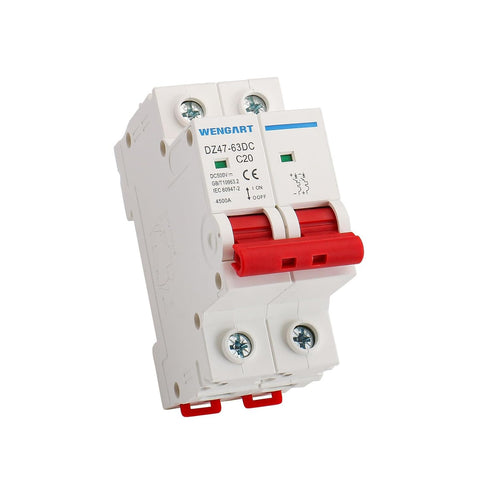

DC Miniature Circuit Breaker DZ47-63Z, 500V 2 Poles 10-63A for Battery and Solar PV Systems, DIN Rail Mount

DC Miniature Circuit Breaker DZ47-63Z,500V 2 Poles 10-63A,Work for Battery and Solar PV Systems and Other DC Systems, DIN Rail Mount,DC Disconnect Switch (20A)

DC Miniature Circuit Breaker DZ47-63Z, 500V 2 Poles 10-63A for Battery and Solar PV Systems, DIN Rail Mount

Wengart DC series circuit breakers are specially used in photovoltaic systems, and their rated operating voltage can reach DC 1000V. Important components are protected from the hazards of high DC reverse current and AC feedback current caused by inverter failure, ensuring the reliable operation of solar photovoltaic power generation systems. Specification:

Key Features

• ✅ This DC miniature circuit breaker is used to protect power distribution facilities from overload and short-circuit damage, trip quickly, ensure reliable operation of loads, and prolong the life of DC circuit breakers

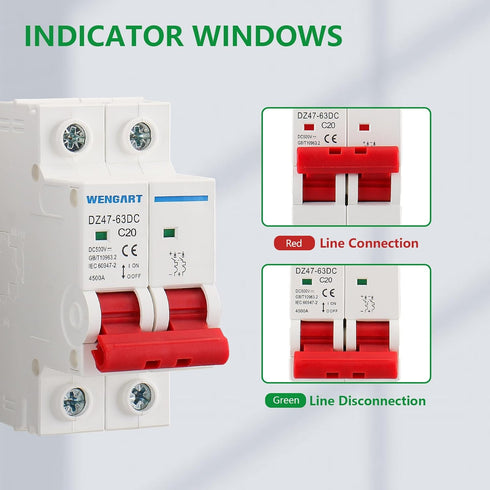

• ✅ This DC miniature circuit breaker features a magnetic system to assist with arc extinguishing, allowing for more accurate tripping based on current flow, and a color indicator in the handle for at-a-glance operating status.

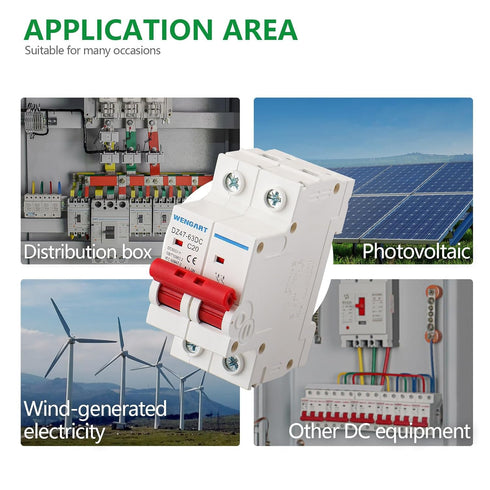

• ✅ This DC miniature circuit breaker is widely used in various DC systems such as DC power supply systems, batteries, UPS, inverters, marine power systems, and solar photovoltaic systems.

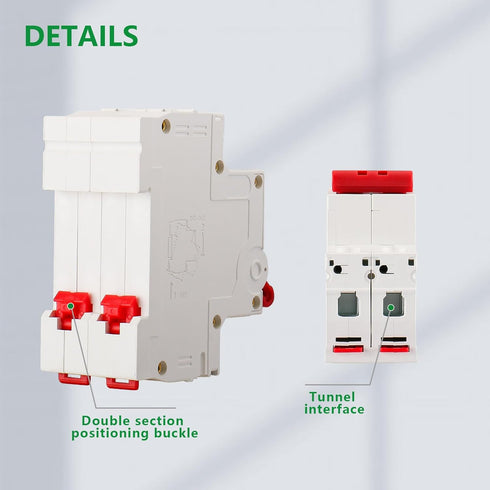

• ✅ This solar system circuit breaker can be easily mounted on a 35mm DIN rail for ease of use.
• ✅ This solar DC circuit breaker has an optional Rated Current of 10-63A, a Rated Voltage of 500V, a Breaking Capacity of 4KA, and the number of layers: 2 poles.

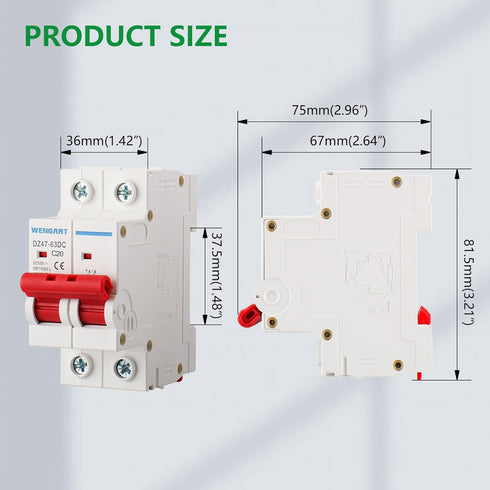

✅ Product Dimensions: 2.99 x 1.38 x 2.64 inches; 6.38 ounces
