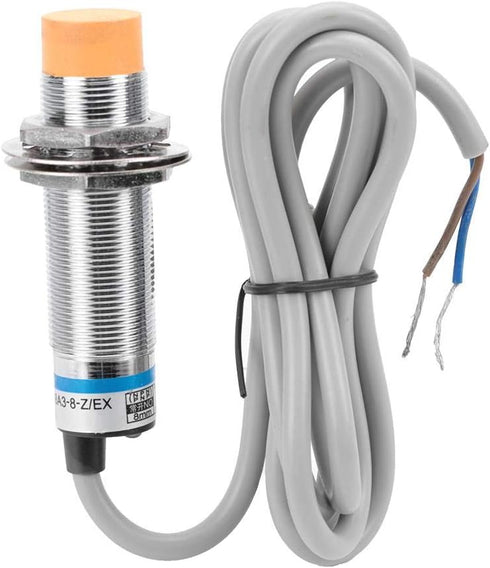

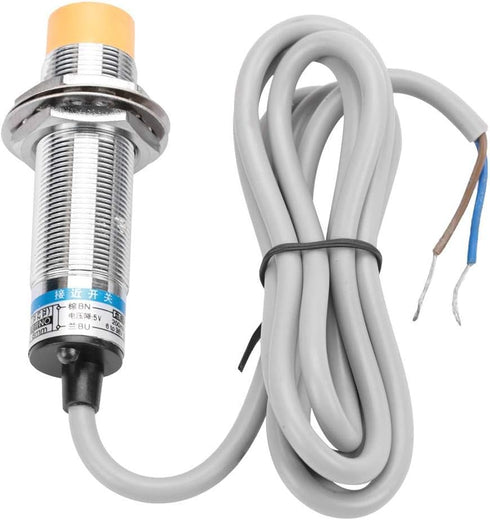

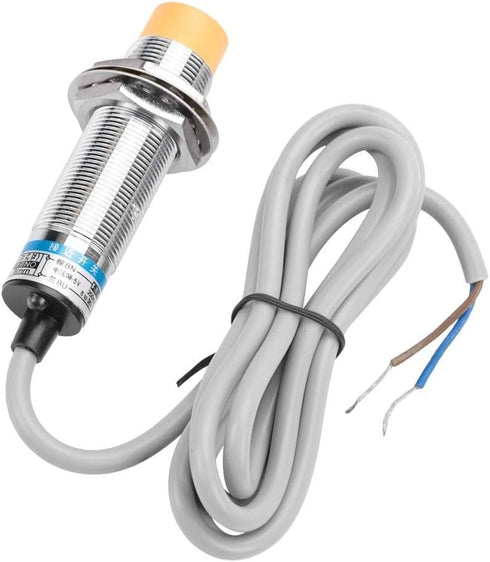

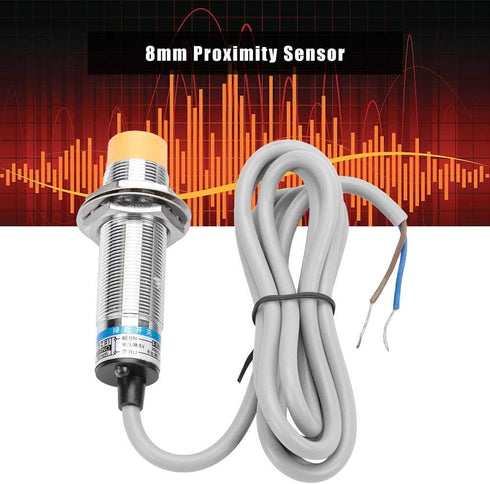

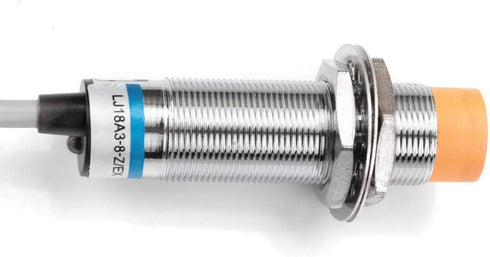

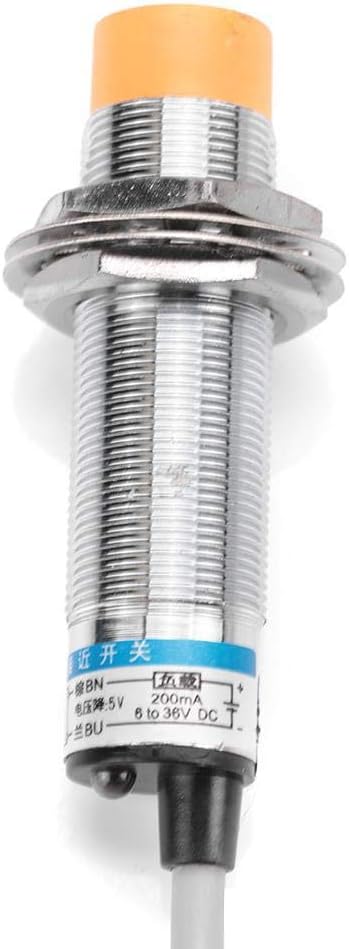

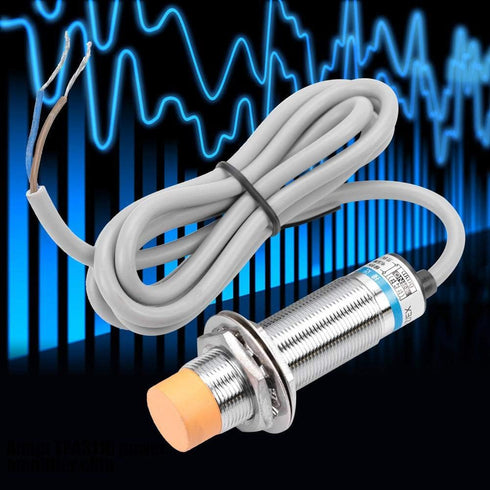

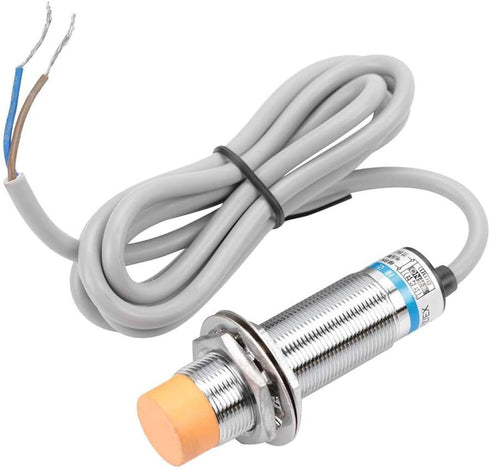

DC12-24V Proximity Switch, 2-Wire Normally Open Inductive Sensor

DC12-24V(6-36V) Proximity Switch,2-Wire Normally Open Inductive Proximity Switch Sensor,8mm NPN NO Proximity Switch Sensor

DC12-24V Proximity Switch, 2-Wire Normally Open Inductive Sensor

Features: This is a normally open proximity switch sensor with detection distance of 8mm to 10mm. When proximity switch is close to some target object, it will send out control . Widely used in automatic control industry for detecting, controlling, and non-contact switching. High sensitivity, quick response, stable performance. Non-contact detection avoids the sensor and the target object from damages. Specification: Detection distance: 8mm±10% Setting distance: 0-7mm Delay distance: <10% of detection distance Detection object: Magnetic metal(The detection distance decreases when it is non-magnetic metal) Standard detection object: Iron 30*30*1mm Response frequency: 0.5kHz Supply voltage: DC12-24V (6-36V) impulse (P-P) below 10% Withstand voltage: AC1000V 50/60Hz 1min consumption: N.P type: <13mA, D type: <0.8mA, A type: <1.7mA Control output: N.P type: <300mA, D type: <200mA, A type: <400mA Loop : N.P.D type: reverse connection , absorption, load short circuit , type A: absorption Ambient temperature and humidity: -30-65?, 35-95%RH Temperature influence: Temperature range -30-65?, at 23?, ±15% detection distance; Temperature range -25-60?, at 23?, ±10% 0detection distance Insulation impedance: >50MO Housing material: brass plating Detection surface: ABS Package list: 1 * Inductive Proximity Switch Note: 1. Please allow slight error due to manual measurement. 2. Different monitor colors may be different. Thanks for your kind understanding.

Key Features

• ✅ This is a normally open proximity switch sensor with detection distance of 8mm to 10mm.
• ✅ Widely used in automatic control industry for detecting, controlling, and non-contact switching.
• ✅ When proximity switch is close to some target object, it will send out control .
• ✅ High sensitivity, quick response, stable performance.
• ✅ Non-contact detection avoids the sensor and the target object from damages.

✅ Product Dimensions: 1.18 x 2.76 x 1.18 inches
