Digital Tachometer, Non-Digital Photo Tachometer RPM Meter with LCD Display, 2.5 to 99 RPM Range

Digital Tachometer, Non Digital Photo Tachometer RPM Meter, with LCD Display, 2.5 to 99, RPM Range

Digital Tachometer, Non-Digital Photo Tachometer RPM Meter with LCD Display, 2.5 to 99 RPM Range

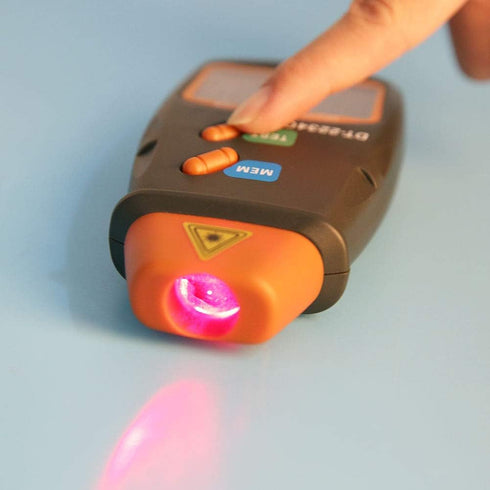

Model: -2234C+ Material: ABS Plastic Display: 5-digit 18mm(0.7") LCD Display Measuring Range: 2.5RPM - 99,999RPM Resolution: 0.1RPM at 2.5-.9RPM, 1RPM at 1000-99,999RPM Accuracy: ±(0.05%+1 digit) Measuring Distance: 50-500mm / 2-20in Time Base: 6MHz Quartz Crystal Oscillator Range Selection: Auto range Sampling Time: 0.8s(over 60RPM) Power Supply: 1 x 9V 6F22 Battery(NOT included) Power Consumption: Approx. 30mA Working Temperature: 0? ~ 50?(32? ~ 122?) The principle of this tachometer is very simple, the head emits red light after the reflection of the reflective paper, dipole induction tube induction, IC calculate the speed. NOTE: 1. Must be attached to the reflective paper 2. test distance 5CM-50CM Test method. A: Install the battery(NOT included in the package), to be tested on the object stick a reflective mark C, installed batteries and press the test TEST button, so that the visible beam of light and the target to be measured in a straight line D. To be displayed after the value is stable, release the test TEST button, at this time there is no display, but the maximum value of the measurement results, the minimum value of the last displayed value are automatically stored in the instrument, press the MEM memory key, according to a certain rule to display Some measurements. B: Low speed measurement: In order to improve the measurement accuracy, when measuring very low speed, it is recommended that the user put several reflective markers evenly on the object to be measured, at this time the reading on the display divided by the total number of reflective markers to get the actual speed value. Package list: 1 x Digital Tachometer 1 x Storage Bag 3 x Reflective Tape 1 x User Manual

Key Features

• ✅ ACCURATE MEASUREMENT: This handheld digital tachometer provides wide measuring range from 2.5RPM to 99999 RPM and high resolution of 0.1RPM at 2.5-.9RPM, 1RPM at 1000- 99999rpm, with 50-500mm measuring distance. Gives you accurate rotational speed readings from a distance.
• ✅ POWERFUL FUNCTION: The digital LCD tachometer can automatically record the , Min and LAST value. Its large LCD display ensures the clearer reading. It also supports low battery indication to remind you.

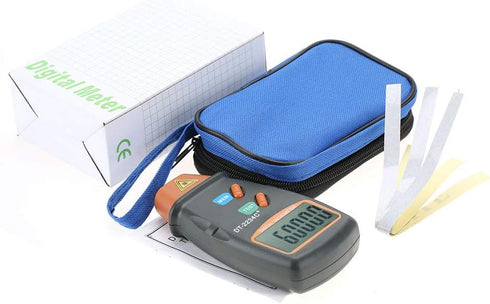

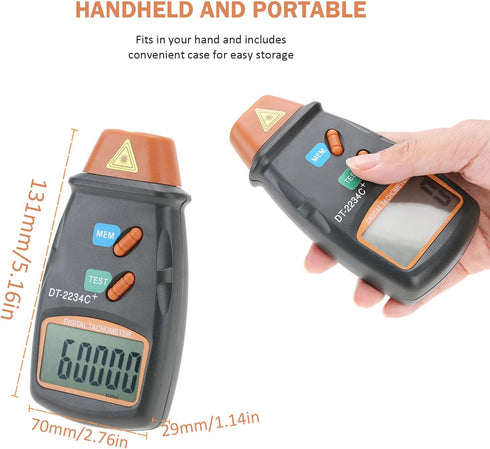

• ✅ HANDHLD AND PORTABLE: The handheld tachometer is small-sized and lightweight, and also comes with a blue storage bag for easy carrying, which is convenient for your outdoor use.
• ✅ PREMIUM MATERIAL: This non motor speed gauge is made of ABS material, and adopts rugged housing design, which is comfortable and anti-slip to hold and use.
• ✅ WIDE APPLICATION: This non speedometer is widely used in the field of motor, wheels, lathe for metal or wood cutting work, electrical fan, paper making, plastic industry, washing machines, chemical fiber, car making, etc.

✅ Product Dimensions: 5.12 x 2.68 x 1.02 inches
