DIGITEN 4 Digital Green LED Tachometer RPM Speed Meter with Hall Proximity Switch Magnet Sensor for Lathe
SKU: PGABL1406854
VENDOR: DIGITEN
You Save: $3.80 (13%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.
DIGITEN 4 Digital Green LED Tachometer RPM Speed Meter + Hall Proximity Switch Magnet Sensor NPN for Lathe Conveyor Belt
DIGITEN 4 Digital Green LED Tachometer RPM Speed Meter with Hall Proximity Switch Magnet Sensor for Lathe

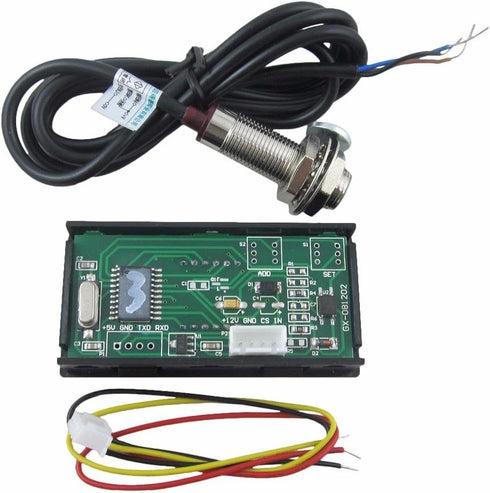

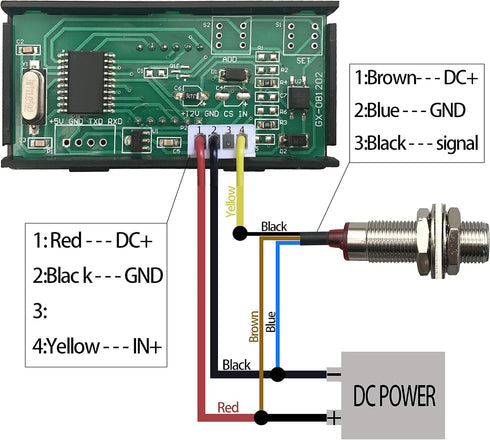

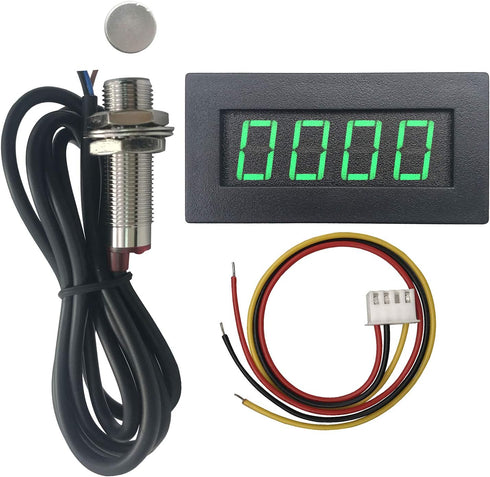

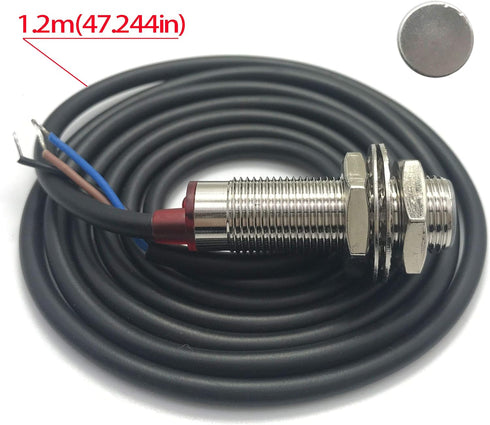

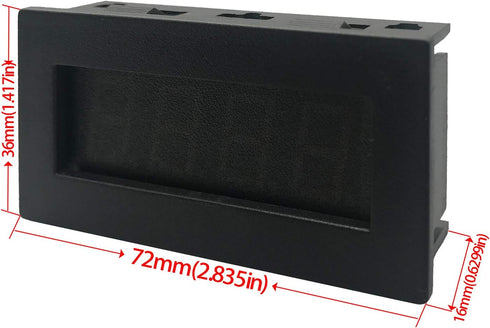

Specification Power requirement: DC 8-15V Measure range : 5-9999RPM. Clear zero: Automatic. Clear zero time: about 10s. The greater RPM value, the longer clear zero time. Refresh frequency: 0.2-0.5S@120-1200RPM;0.25-0.06S@2400-9999RPM. Measure accuracy: RPM<5000,±2;RPM>5000,±3. Display: Green 0.56 inch LED Sign: Pusle signal,Hall NPN 3 wires normally closed. Hall proximity model: NJK-5002D Appearance: M12mm cylinder. Detection range: 2-3mm Proximity output current: 200mA Detected objects: magnet Response frequency: 100HZ Tachometer dimension:72x36x20mm,panel cutout Dimension:68x33mm. Sensor dimention: M12x37mm. Sensor wiring: brown--Power+; blue--Power-; black--signal. Operating temperature: 0 to 50°C. Package includes Tachometer x 1 Hall NPN proximity sensor x 1 Magnet x 1 Tips: 1.Please confirm that all the wires are connected correctly. 2. The direction of the magnet must be correct. If it is not correct, please flip the magnet. 3.The distance between the magnet and the sensor must be kept at 2-3mm (0.07"-0.12"). If you have any other questions, please feel free to contact us by email, we will definitely solve the problem for you.
Key Features
- ✅ Power requirement:DC 8-15V
- ✅ Come with hall sensor and magnet
- ✅ Display: Green 0.56" LED
- ✅ Application: Lathe, CNC, Mower, Spring, etc.Measure varied motor RPM.
✅ Product Dimensions: 2.8 x 0.8 x 1.4 inches
