DIN Rail Mount 4 Channels Relay, AC/DC 24V Control 4 SPDT 10A Pluggable Power Relay Module for PLC MCU Projects

DIN Rail Mount 4 Channels Relay, AC/DC 24V Control 4 SPDT 10A Pluggable Power Relay Module for PLC MCU

DIN Rail Mount 4 Channels Relay, AC/DC 24V Control 4 SPDT 10A Pluggable Power Relay Module for PLC MCU Projects

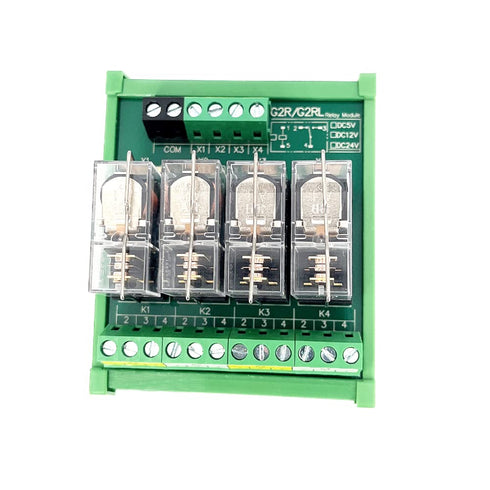

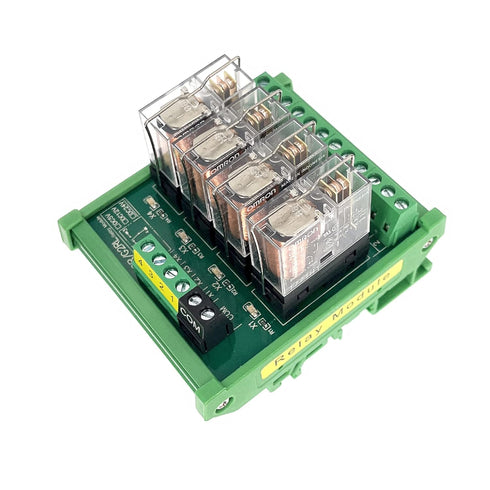

This is a 24V 4-Channel Relay interface board, be able to control various appliances, and other equipments with large current. It can be controlled directly by Microcontroller (Arduino, 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic). Specifications: Relay: OMRON G2R-1 Channel: 4 Control voltage: 24 VDC Coil current: 21.8mA Contact type: 1 normally open, 1 normally close, single pole Normally Opened Compatible Load: 250VAC 10A; 30VDC 10A Action time: less 15ms reset time: less 5ms Input/Output connections: Screw terminal block Wire range: 0.2-2.5mm2 Stripping Length: 6-7mm DIN rail mountable: 15/28/35mm Max frequency: 18000 times/h Relay install: plugged Flame Retardance: UL94-V0 Module Size: 40mmX86mmX60mm /1.57X3.39X2.36inch (L*W*H) LED indicator for each relay channel, relay coil protection by means of a freewheeling diode. The output contact has a surge protection function Support AC / DC control signals Package Content: 1PCS DIN Rail Mount 24V 4 Channels Relay

Key Features

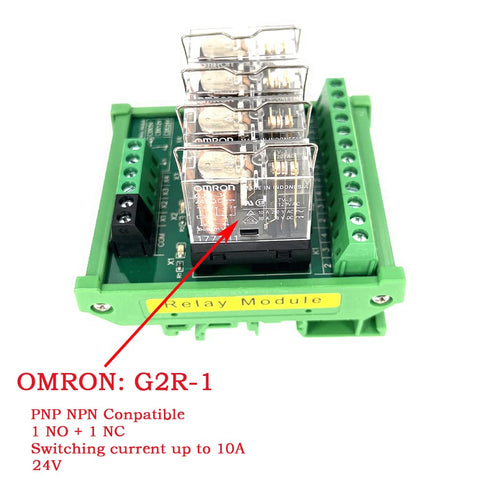

• ✅ Built-in Omron relay G2R-1-E certified with UL, Switching current up to 10A at 250VAC or 30VDC.

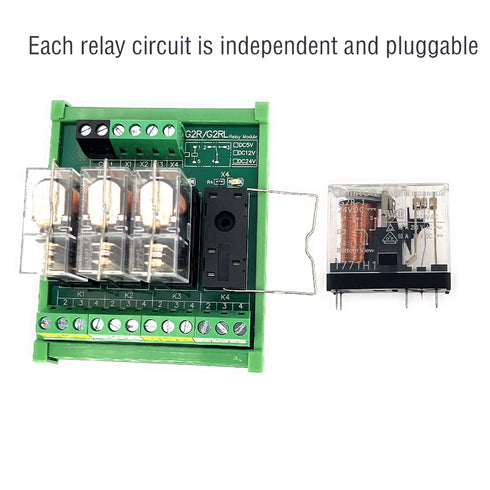

• ✅ Each relay circuit is independent and pluggable. Relay status indicator LED, surge suppression protection and overvoltage protection are provided for each relay channel.

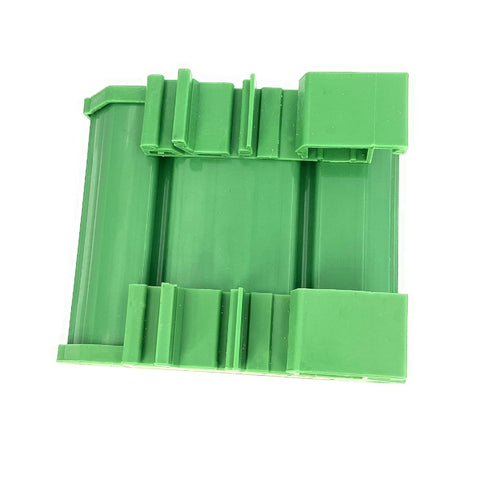

• ✅ Din rail mountable - for width 35 / 32 / 15mm rails. It is convenient and quick to install, firm and stable, and more convenient to disassemble.

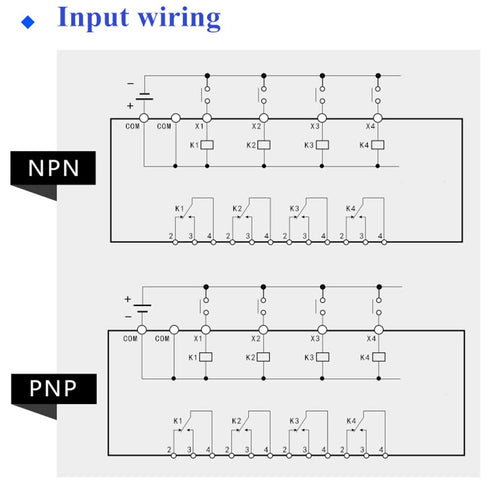

• ✅ NPN&PNP can be interchangeable, AC&DC can be in compatible.

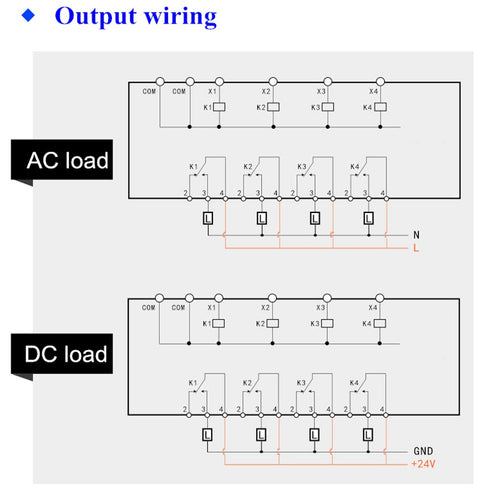

• ✅ All interfaces can be directly wired out through the terminals. Standard interface that can be controlled directly by microcontroller (Arduino , 8051, AVR, PIC, DSP, ARM, ARM, MSP430, TTL logic).
