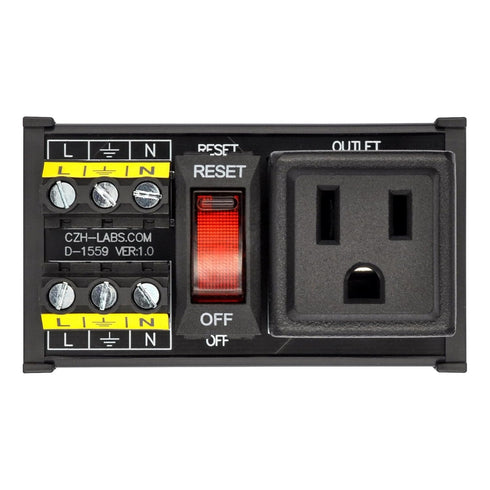

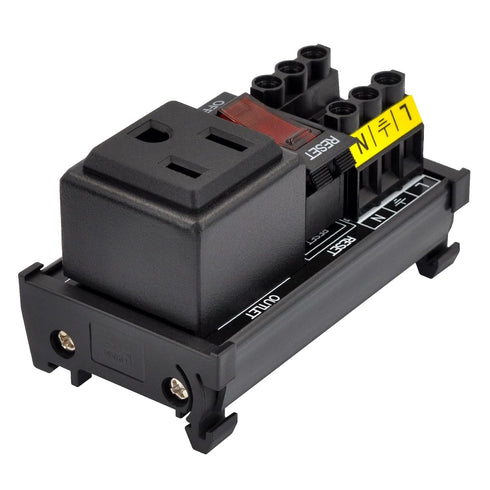

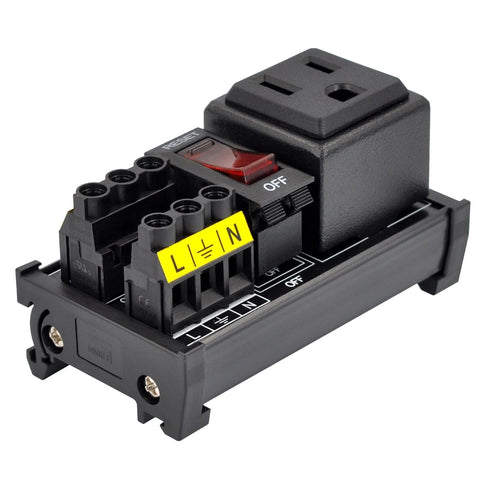

DIN Rail Mount AC 120V NEMA 5-15R Single Receptacle Outlet Power Strip Module with Rocker Switch Thermal Circuit

DIN Rail Mount AC 120V NEMA 5-15R Single Receptacle Outlet Power Strip Module, with Rocker Switch Thermal Circuit Breaker Overload Protector

DIN Rail Mount AC 120V NEMA 5-15R Single Receptacle Outlet Power Strip Module with Rocker Switch Thermal Circuit

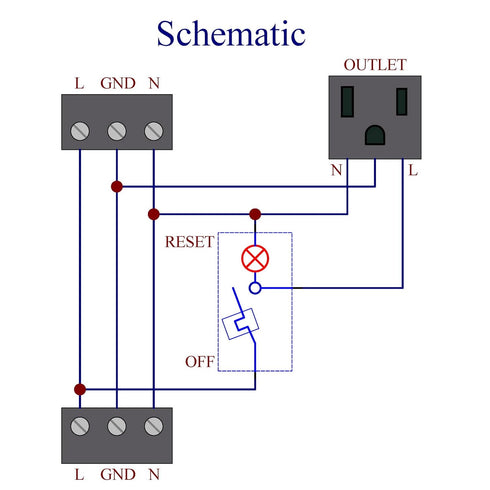

DIN Rail Mount AC 120V NEMA 5-15R Single Receptacle Outlet Power Strip Module, with Rocker Switch Thermal Circuit Breaker Overload Protector. The overload protector has a built-in red indicator light. When the overload protector is working normally, built-in indicator light is on and the receptacle output is normal. When the overload protector is disconnected due to overcurrent, built-in indicator light goes out and the live wire of the receptacle is disconnected. After troubleshooting the overload, you can press the overload protector to RESET position to restore its connection. In addition, by pressing overload protector to RESET or OFF position, you can also manually control all receptacles output ON / OFF. 1, Outlet: 3-prong grounded NEMA 5-15R AC receptacle. Reinforced AC receptacle to ensure stability. 2, Working voltage AC 120V. Receptacle rated current 15 Amps. 3, Resettable rocker switch thermal circuit breaker overload protector current 15 Amps, built-in red indicator, support manually control output ON / OFF. 4, Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules. 5, DIN rail mount carrier can support width 35mm rail. High quality fireproof nylon material. 6, UL CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL CE CQC certified terminal blocks. UL certified NEMA 5-15R receptacle. UL certified circuit breaker.

Key Features

• ✅ Outlet: 3-prong grounded NEMA 5-15R AC receptacle. Reinforced AC receptacle to ensure stability.
• ✅ Working voltage AC 120V. Receptacle rated current 15 Amps.
• ✅ Resettable rocker switch thermal circuit breaker overload protector current 15 Amps, built-in red indicator, support manually control output ON / OFF.
• ✅ Input terminals pitch 7.62mm/0.3", maximum current 30 Amps for per position, wire size 26~10 AWG, stripping length 8mm, Metric M3 slotted screw. Support power supply expansion connect to other modules.

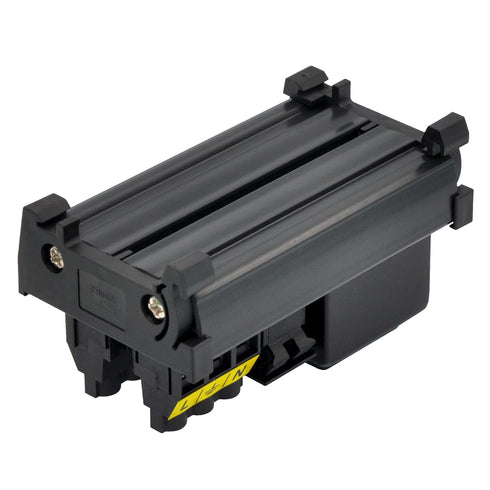

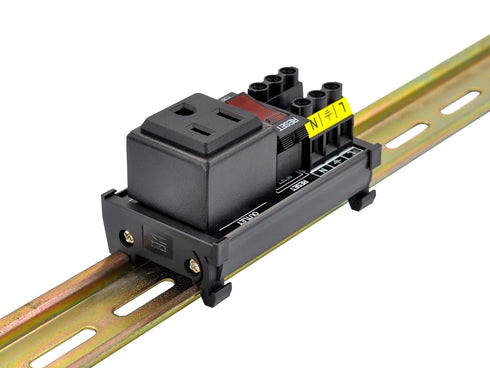

• ✅ DIN rail mount carrier can support width 35mm rail. High quality fireproof nylon material.
• ✅ UL CE certified DIN rail nylon material mount carrier. UL 94-V0 certified FR-4 fiberglass material PCB. UL CE CQC certified terminal blocks. UL certified NEMA 5-15R receptacle. UL certified circuit breaker.
