DIN Rail Mount Screw Terminal Block Breakout Module for Raspberry Pi Pico
SKU: PGABL1875292
VENDOR: OONO
You Save: $6.16 (16%)
Hurry! Only 0 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.

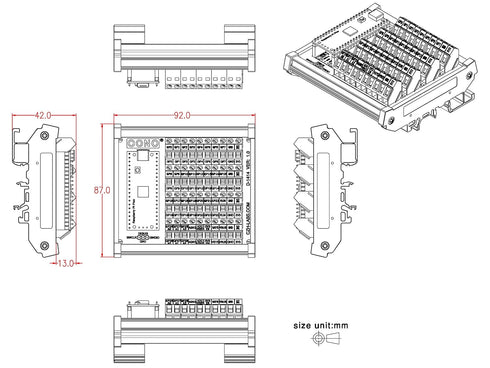

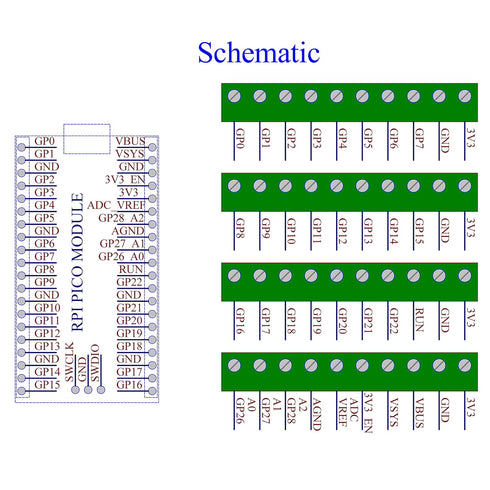

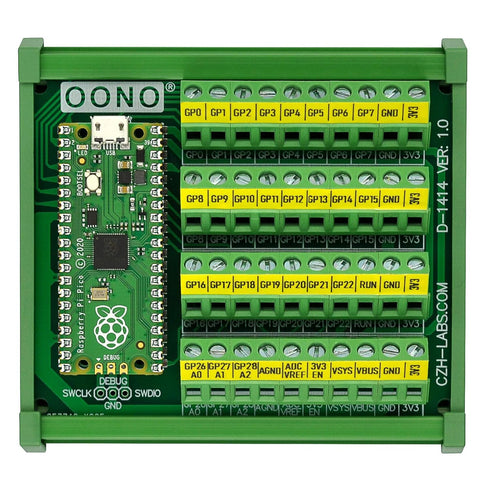

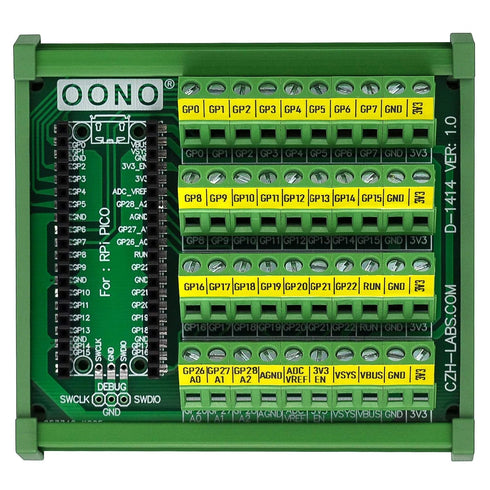

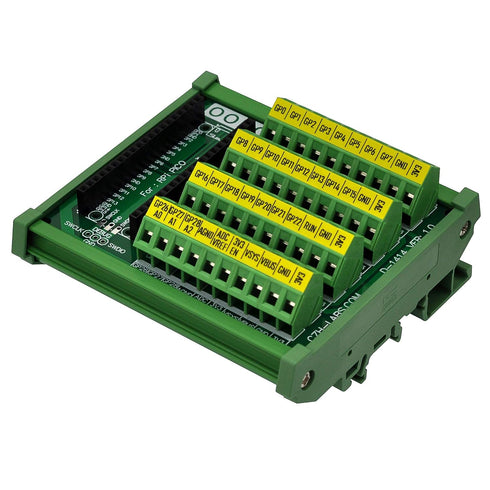

DIN Rail Mount Screw Terminal Block Breakout Module for Raspberry Pi Pico
DIN Rail Mount Screw Terminal Block Breakout Module for Raspberry Pi Pico
1, DIN Rail Mount Screw Terminal Block Breakout Module for Raspberry Pi Pico. With the breakout board, you can easily extend Raspberry Pi Pico projects to industrial control, home automation or other applications. 2, PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square. 3, FR-4 fiber glass PCB, dual copper layers. 4, High quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use. 5, Packing list: 1pcs Breakout module, 2pcs 1x20pin 2.54mm pin header connectors(the connector must be soldered to Raspberry Pi Pico), 1pcs 1x3pin 2.54mm pin header connector(for debug). Note: the item not include Raspberry Pi Pico module.
Key Features
- ✅ DIN Rail Mount Screw Terminal Block Breakout Module for Raspberry Pi Pico. With the breakout board, you can easily extend Raspberry Pi Pico projects to industrial control, home automation or other applications.
- ✅ PCB mount Terminal Block: pitch 5.0mm/0.197", strip length 7mm, screws - M2.5, steel, Cr3+ Zn plated. pin header and cage - brass. Wire range 28AWG ~ 12AWG / 2.5mm square.
- ✅ FR-4 fiber glass PCB, dual copper layers.

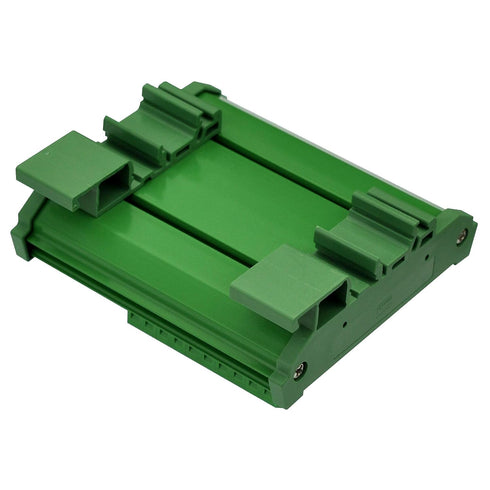

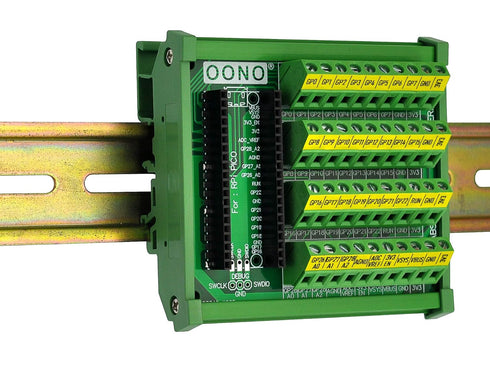

- ✅ High quality Taiwan DINKLE Fireproof nylon material DIN rail mount carrier, can support width 35mm / 32mm / 15mm rail, and the carrier can be taken apart for panel mount use.

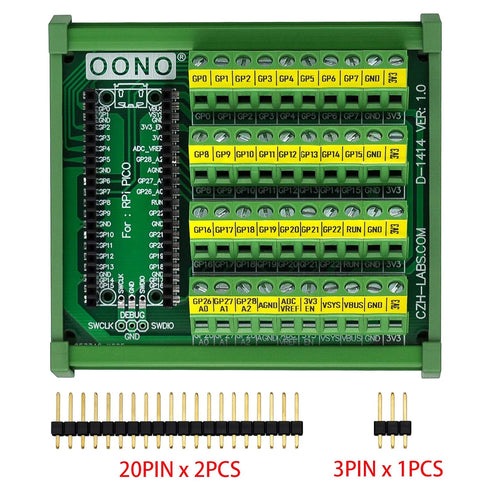

- ✅ Packing list: 1pcs Breakout module, 2pcs 1x20pin 2.54mm pin header connectors(the connector must be soldered to Raspberry Pi Pico), 1pcs 1x3pin 2.54mm pin header connector(for debug). Note: the item not include Raspberry Pi Pico module.
