DIN Rail Terminal Blocks Kit 12 Connection Dinkle DK2.5N with Jumpers, 12-22 AWG, 20 Amp, 600 Volt UL (Black, Green,
SKU: PGABL2054703
VENDOR: Dinkle
You Save: $4.18 (15%)
Hurry! Only 0 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.
DIN Rail Terminal Blocks Kit 12 Connection International Connector Dinkle DK2.5N with Jumpers, 12-22 AWG, 20 Amp, 600 Volt UL (Black, Green & White)
DIN Rail Terminal Blocks Kit 12 Connection Dinkle DK2.5N with Jumpers, 12-22 AWG, 20 Amp, 600 Volt UL (Black, Green,

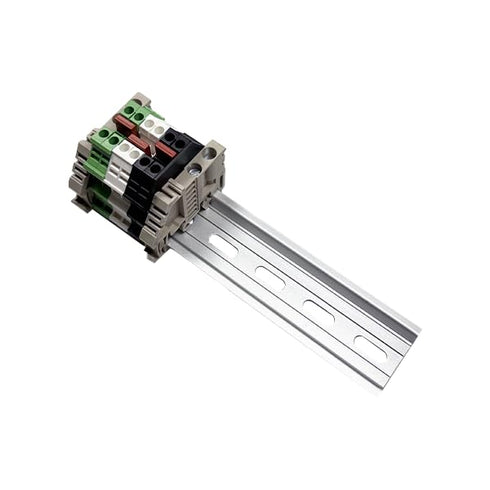

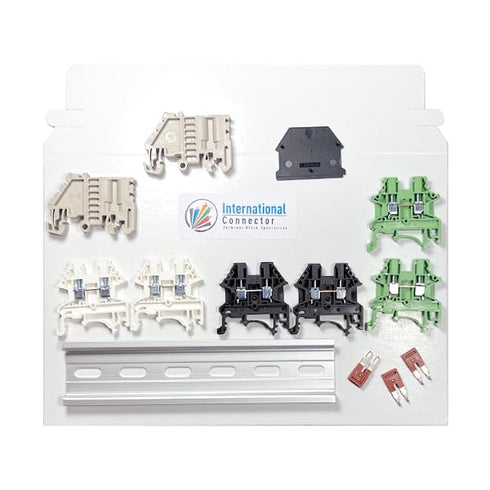

This kit includes 6 DK2.5N Dinkle terminal blocks in the color of your choosing, 2 SS2 end brackets, 1 DK4NC end cover in the color of your choosing, 8 DSS10N-02P jumpers, a 6" piece of aluminum RoHS rail, and either 2 3-pole DSS2.5N-03P jumpers or 3 2-pole DSS2.5N-02P jumpers depeding on your color choice. These are 6 separate circuits, but you can use the jumpers to make them in common. Fully customizable! Technical Data (UL) Rated Voltage: 600V Rate Current: 20A Conductor Cross-section, Solid (AWG): 22-12 Conductor Cross-section, Flexible (AWG): 22-12 Rated Impulse Withstand Voltage: 6KV Torque (N-m): 0.4 Screw: M4 Wire Strip Length: 9-11mm Insulating Material: PA TxHxW (mm): 5.1 x 39.6 x 40.5 (Individual Blocks) DIN Rail (mm): 35, 32 Jumper/Bridge: Press-fit/Insertion. Accepts TM47W marking tags.
Key Features
- ✅ Kit for Wire Extension or Power Distribution
- ✅ UL 600V Rating
- ✅ UL 12-22 AWG Rating
- ✅ UL 20A Rating
- ✅ All separate terminals made common with jumpers
✅ Product Dimensions: 1.59 x 1.59 x 1.56 inches; 3.84 ounces
