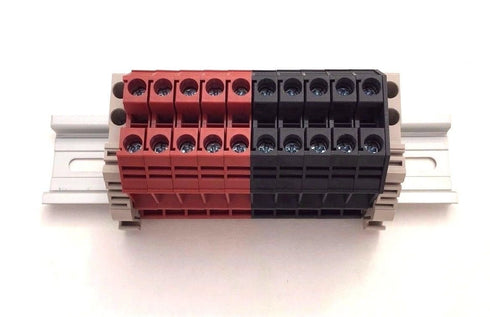

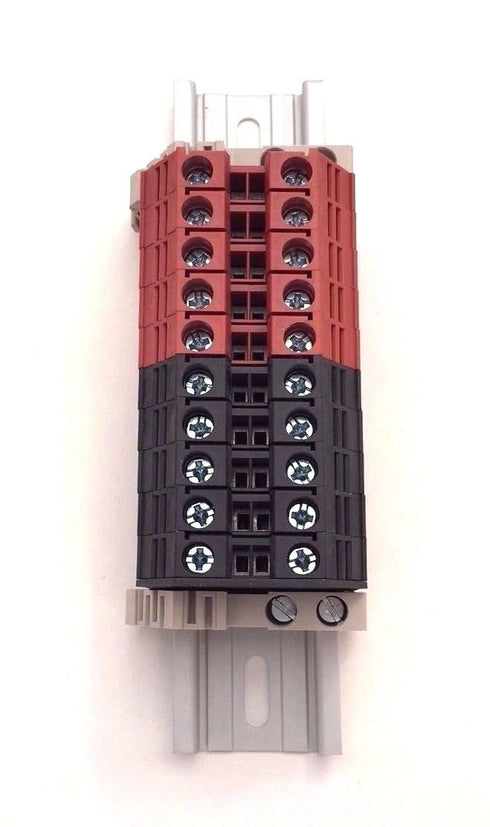

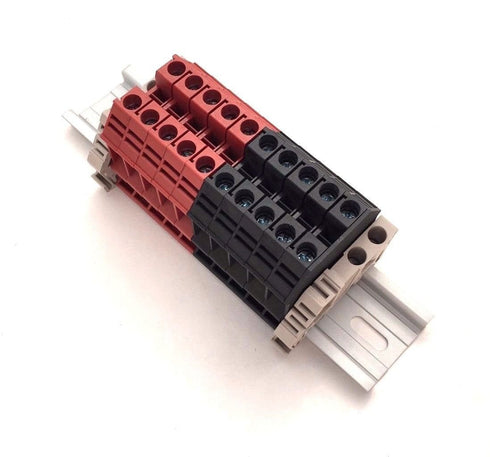

Dinkle DK6N Red/Black 10 Gang Box Connector DIN Rail Terminal Blocks, 8-20 AWG, 50 Amp, 600 Volt Circuits Separate
SKU: PGABL1216740
VENDOR: Dinkle
You Save: $5.00 (13%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.
Dinkle Assembly DK6N Red/Black 10 Gang Box Connector DIN Rail Terminal Blocks, 8-20 AWG, 50 Amp, 600 Volt Separate Circuits
Dinkle DK6N Red/Black 10 Gang Box Connector DIN Rail Terminal Blocks, 8-20 AWG, 50 Amp, 600 Volt Circuits Separate
Technical Data (UL) Rated Voltage: 600V Rate Current: 50A Conductor Cross-section, Solid (AWG): 20-8 Conductor Cross-section, Flexible (AWG): 20-8 Rated Impulse Withstand Voltage: 8KV Torque (N-m): 1.2 Screw: M4 Wire Strip Length: 12-14mm Insulating Material: PA TxHxW (mm): 8 x 45 x 41.75 (Individual Blocks) DIN Rail (mm): 35, 32 Jumper/Bridge: Press-fit/Insertion. This assembly includes 5 DK6N-RD Dinkle terminal blocks, 5 DK6N-BK Dinkle terminal blocks, 2 SS2 end brackets, and 1 DK6NC-BK end cover, all mounted on a 6" piece of aluminum RoHS rail. The 10 blocks are all separate circuits.
Key Features
- ✅ Made in USA
- ✅ Prebuilt Assembly Red/Black Color
- ✅ UL 600V Rating
- ✅ UL 8-20 AWG Rating
- ✅ UL 50A Rating
- ✅ Separate circuits
✅ Product Dimensions: 1.64 x 1.64 x 0.31 inches; 8.64 ounces
