Dixon Valve & Coupling FBVG75 Brass Ball Valve, 3/4" NPT Female

Dixon Valve & Coupling FBVG75 Brass Ball Valve, 3/4" NPT Female

Dixon Valve & Coupling FBVG75 Brass Ball Valve, 3/4" NPT Female

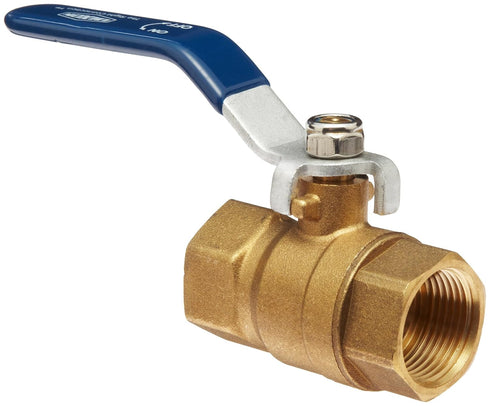

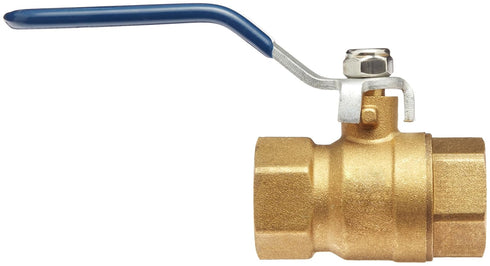

This Dixon FBVG75 ball valve is made of forged brass for higher corrosion resistance than steel and has a plastic-covered lever handle for on/off manual control. This inline valve has a full port flow for higher operating efficiency than standard port and 3/4" female National Pipe Taper (NPT) threads for connecting two male threaded pipes going in the same direction. It is pressure rated to 600 pounds per square inch (psi) at a maximum operating temperature of 248 degrees F. This full port ball valve is suitable for applications of water and air only. Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve and is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter or the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and termed reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications. Dixon Valve & Coupling Company manufactures pipe and hose fittings and accessories. The company, founded in 1916, is headquartered in Chestertown, MD.

Key Features

• ✅ Forged brass for higher corrosion resistance than steel
• ✅ Plastic-covered lever handle for on/off manual control
• ✅ Full port flow for higher operating efficiency than standard port
• ✅ Inline valve for connecting two pipes going in the same direction
• ✅ Female NPT threads for connecting to male threaded pipe fittings
