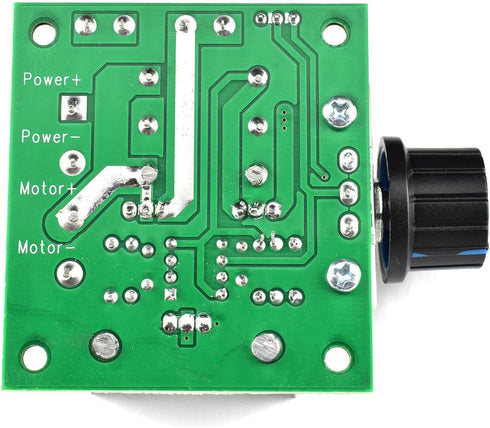

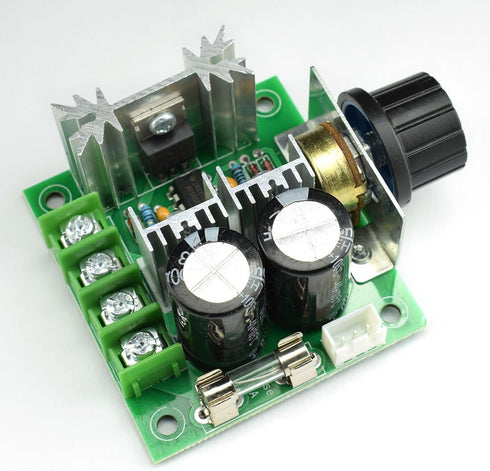

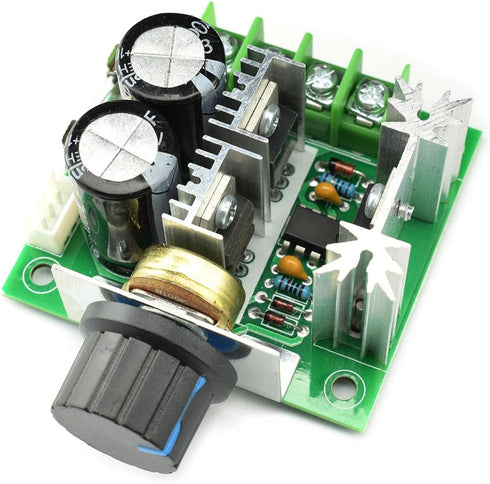

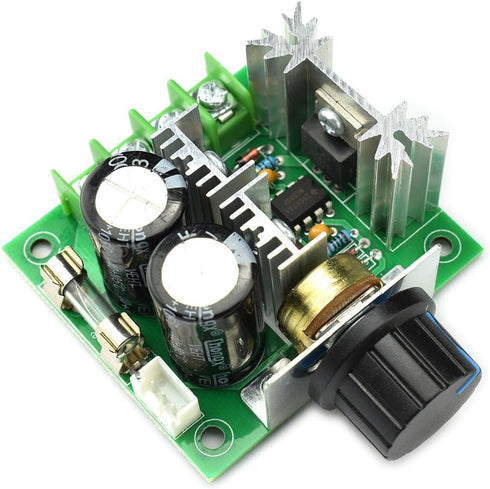

DZS Elec 10A 12V-40V DC Motor Speed Controller, 12V 24V PWM Variable Speed Regulator with Speed Control Knob

DZS Elec 10A 12V-40V DC Motor Speed Controller 12V 24V PWM Variable Speed Regulator Governor Switch CCMHCN With Speed Control Knob

DZS Elec 10A 12V-40V DC Motor Speed Controller, 12V 24V PWM Variable Speed Regulator with Speed Control Knob

Feature: Module Size: 60x55x28mm Work Voltage: DC 12V-40V Rated Current: 8A Max Current: 10A Quiescent Current: 0.02A (Standby) Output Voltage: Approx.0%-100% of input voltage Speed Range: 10%-100% PWM Frequency: 13KHz PWM Pulse Width Speed Range: 10%-100% Power Range: 0.01-400W Knob Potentiometer: Resistance B100K, Trepanning 8mm Fuse Wire: 5x20mm 10A Adopting 50V 1000uF large capacitance,with power supply reverse polarity protection, over-voltage protection funcion. Reserved lead type knob interface, if use lead type knob, it need to dismantle the fixed potentiometer first. Suitable for DC motor speed control etc. Note: DC power supply polarity can not be inversed, otherwise is may damage speeder. Not suitable for AC power supply. Package List: 1pcs 12V-40V 10A DC Motor Speed Controller

Key Features

• ✅ Type: DC 10A 12V-40V motor speed controller, high efficiency, high torque, low heat radiation.
• ✅ Function: With power supply reverse polarity protection, over-voltage protection, 10A standard fuse over-load protection, more safer and reliable.
• ✅ PWM Duty Cycle: 10%-100%, Control Power: 0.01-400W, adopting variable speed knob potentiometer to control motor speed.
• ✅ Rated Current: 8A, Max Current: 10A, Quiescent Current: 0.02A (Standby)
• ✅ Applications: Suitable for DC motor speed control, PLC speed control etc.
