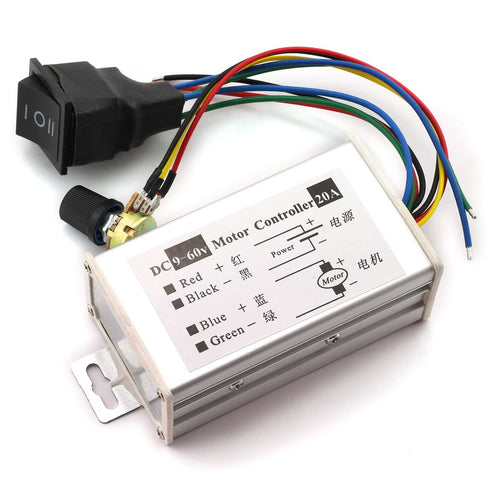

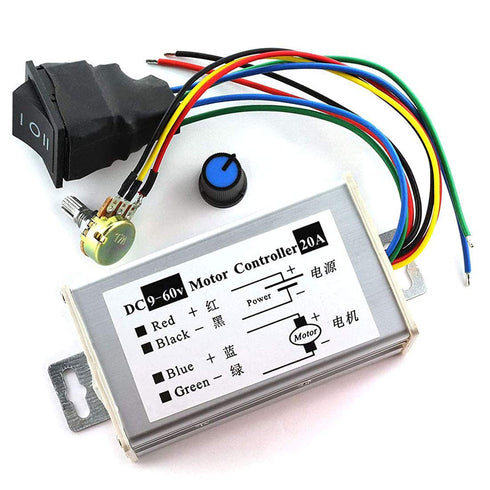

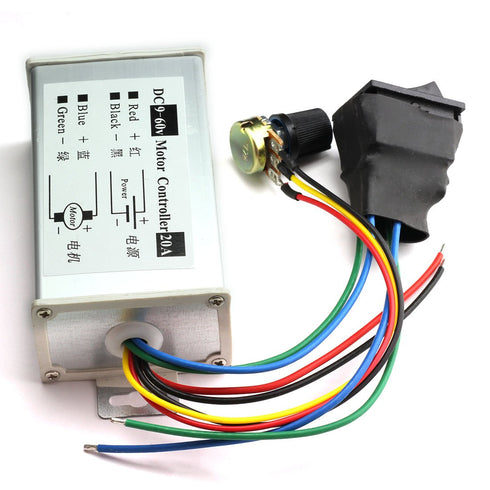

DZS Elec DC Motor Speed Controller 9-60V, High Power PWM Control Switch for 12V 24V 36V 48V 60V 20A

DZS Elec 1pc DC Motor Speed Controller 9-60V Forward/Reverse High Power PWM Control Switch Motor Speed Regulator DC 12V 24V 36V 48V 60V 20A 1200W

DZS Elec DC Motor Speed Controller 9-60V, High Power PWM Control Switch for 12V 24V 36V 48V 60V 20A

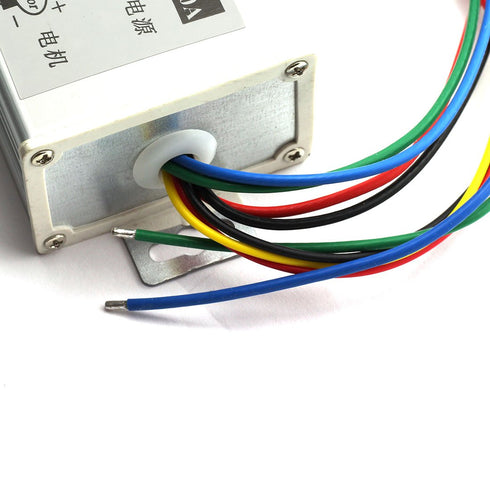

Specification: Product Name: PWM DC Motor Speed Controller Work Voltage: DC 9-60V Output Current: 0-20A Continuous Power: 1200W (max) Control Frequency: 25KHZ Speed Range: 0%-100% Output Voltage: Load Linear Speed Mode: Potentiometer Speed Type: Adjusting current Forward/Reverse Rotation: YES Suitable Motor: DC brush Fix Mode: Mounting Lug Mounting Lug Hole Spacing: 104mm Potentionmeter Hole Diameter: 7mm Forward/Reverse Button Size: 31x26mm, hole 28x22mm Module Size: 92x52x36mm Connection: Red Line: Positive power supply + Black Line: Negative power supply - Blue Line: Positive motor + Yellow Line: Negative motor - Note: Please do not switch direction while high speed running, can not be used for electrombile. Package: 1pcs 20A 9-36V DC Motor Speed Controller

Key Features

• ✅ PWM DC Motor Speed Controller, Work Voltage: 9V-60V; Output Current: 0A-20A; Continuous Power: 1200W (max)
• ✅ Speed Range: 0%-100%; Control Frequency: 25KHZ, adopting current adjusting, PWM to control light and speed.

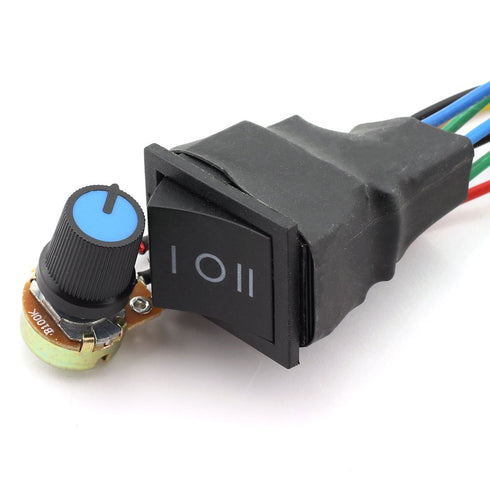

• ✅ Linear regulate motor speed by potentionmeter, support forward / reverse rotation regulation.
• ✅ Adopting advanced technology, high efficient, large torque, low heat etc. performance.
• ✅ Can be widely used for DC brush motor speed controlling, light dimming in DC circuit, PWM can take full advantage of power energy.
