Electric Meter, KWh Meter, Single Phase 4P LED DIN-rail Power Consumption Wattmeter Energy Meter, 10-40A

Electric Meter, KWh Meter, Single Phase 4P LED DIN-rail Electricity Power Consumption Wattmeter Energy Meter, 10-40A

Electric Meter, KWh Meter, Single Phase 4P LED DIN-rail Power Consumption Wattmeter Energy Meter, 10-40A

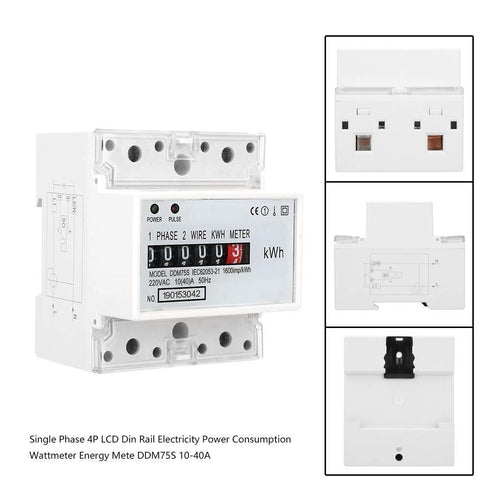

1 * Energy Meter Item Type: Din Rail Energy Meter Model: DDM75S Display mode: (5+1) digital display Installation method: rail installation Weight: 246 g / 8.7 oz(approx.) Small size, light weight, good reliability and easy installation. 35mm standard DIN-rail mounting in accordance with standard DIN EN50022. Six widths (12.5mm modulus) in accordance with DIN43880. Standard configuration 5+1(99999.1KWh) digital display. Double color LED indicates the power status (green) and the energy pulse signal (red). Direct connection operation, two wiring methods. Standard configuration S type wiring, U type wiring can be selected. Extend the terminal cover to protect the use of the security. One-way measurement of single-phase two - wire active energy consumption . This has nothing to do with the direction of the load current. Comply with IEC 62053-21. The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar). It is easy to contact with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864.

Key Features

• ✅ DIN Rail Mounting The energy monitor is small size, light weight, with good reliability and easy installation. 35mm standard DIN-rail mounting in accordance with standard DIN EN50022. Six widths (12.5mm modulus) in accordance with DIN43880.

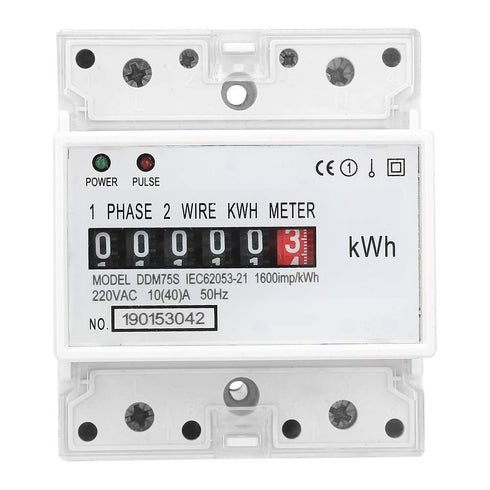

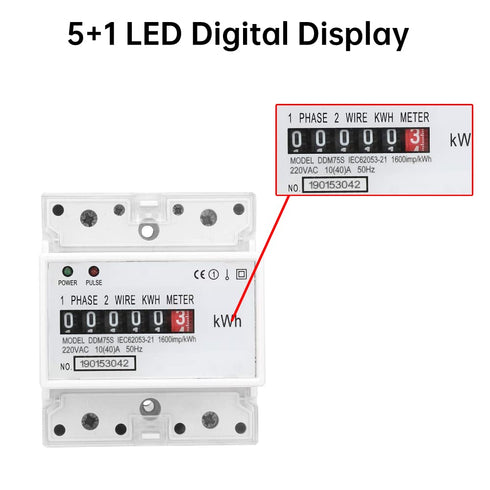

• ✅ 5+1 LED Digital Display Standard configuration 5+1(99999.1KWh) digital display. Double color LED of kilowatt meter indicates the power status (green) and the energy pulse (red).
• ✅ Easy to Contact The standard configuration pulse output is passive (polar) and the remote pulse output can be selected as passive (non-polar). KWH meter is easy to contact with various AMR systems and conforms to the standards IEC 62053-31 and DIN43864.
• ✅ One-way measurement One-way measurement of single-phase two - wire active energy consumption. This has nothing to do with the direction of the load current. Comply with IEC 62053-21.

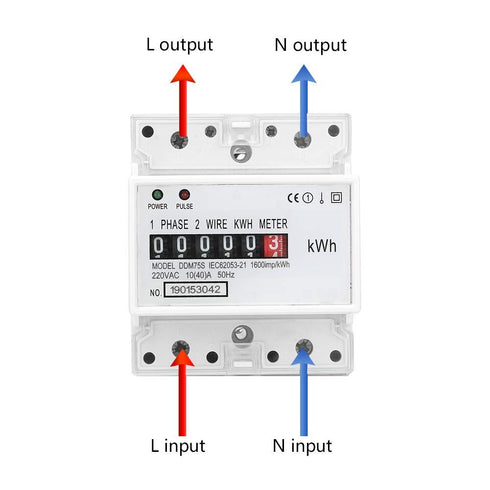

• ✅ Two Wiring Methods The din rail energy meter has direct connection operation, two wiring methods. Standard configuration S type wiring, U type wiring can be selected. Extend the terminal cover to protect the use of the security.

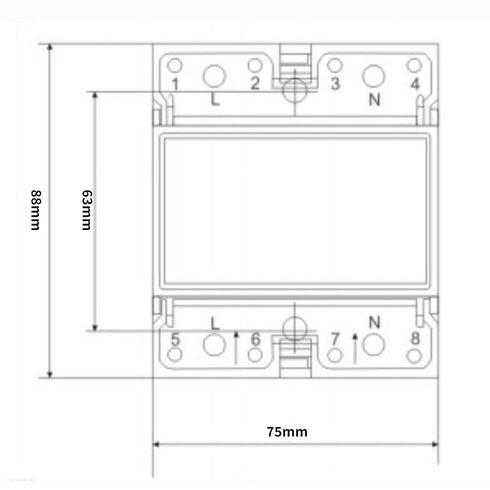

✅ Product Dimensions: 4.33 x 3.15 x 3.15 inches; 8.47 ounces
