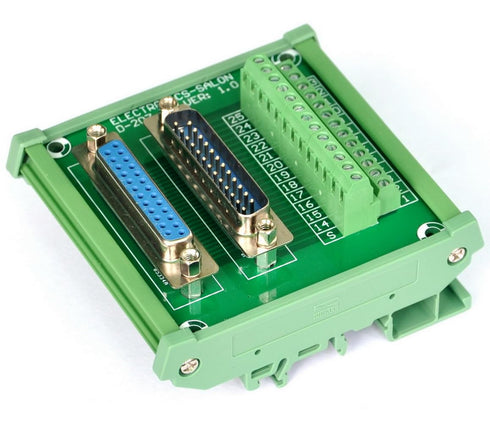

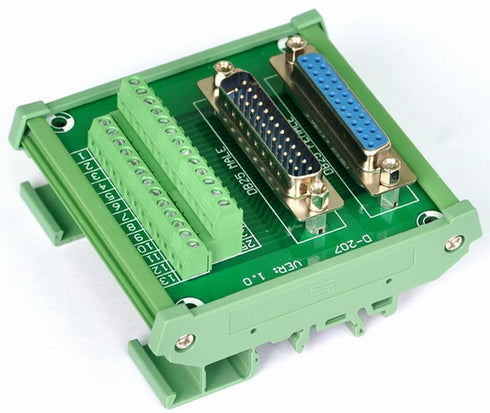

Electronics-Salon DB25 D-SUB DIN Rail Mount Interface Module, Male/Female, DSUB Breakout Board
SKU: PGABL1706649
VENDOR: Electronics-Salon
You Save: $4.60 (14%)
Hurry! Only 0 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.
Electronics-Salon DB25 D-SUB DIN Rail Mount Interface Module, Male/Female, DSUB Breakout Board.
Electronics-Salon DB25 D-SUB DIN Rail Mount Interface Module, Male/Female, DSUB Breakout Board
DIN Rail Mount DB25 Interface Module. Male and Female DB25 connectors. Screw terminal block. Din rail mountable - for width 35 / 32 / 15mm rails. Din mount case can be taken apart for panel mount use. High quality PCB carrier. FR-4 fiber glass PCB. External dimensions: 87 x 80 x 43mm(W x L x H). PCB dimensions: 72 x 77.35mm(W x L). 100% new, never used. Terminal block specifications: Pitch - 3.81mm. Rated voltage - 150V. Rated current - 10A. Wire range - 26-16AWG. Strip length - 5mm. Screws - M2,steel,Cr3+ Zn plated. Torque - 0.2Nm (1.7Lb-In.). Pin header and Cage - Brass.
Key Features
- ✅ Male and Female DB25 connectors, Screw terminal block.

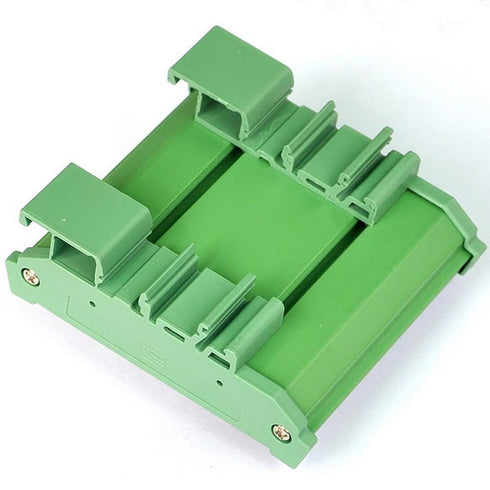

- ✅ Din rail mountable - for width 35 / 32 / 15mm rails, Din mount case can be taken apart for panel mount use.
- ✅ FR-4 fiber glass PCB.

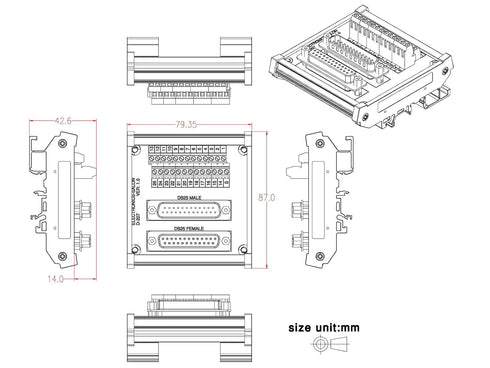

- ✅ External dimensions: 87 x 80 x 43mm(W x L x H).
- ✅ PCB dimensions: 72 x 77.35mm(W x L).
Shipping & Guarantees
- ✅ FREE standard shipping within the United States (3–6 business days)
- ✅ 100% money-back guarantee for lost or damaged items
- ✅ Secure checkout with encrypted payment processing
- ✅ Shipping via UPS, FedEx, and USPS
- ✅ Ships to lower 48 states only (no PO Boxes / APO / FPO)
Returns
- ✅ 30-day hassle-free returns
- ✅ Items must be unused and in original packaging
- ✅ Full refund if item is not delivered
- ✅ Guaranteed delivery within 6–7 business days
Payment Methods
✅ Credit Cards, PayPal, Shop Pay, Apple Pay, Google Pay, Amazon Pay, Meta Pay
Customer Support
✅ Questions? Contact us at Support@GiftAbay.com
We respond within 24 hours on business days.
SEO Title:
Keywords:
Category: Industrial & Scientific
Subcategories: Industrial Electrical, Controls & Indicators, IO Modules
