Encoder Metal Gearmotor 12V DC High Speed 600RPM Gear Motor with Encoder for Robotics

Encoder Metal Gearmotor 12V DC High Speed 600RPM Gear Motor with Encoder for Robotics

Encoder Metal Gearmotor 12V DC High Speed 600RPM Gear Motor with Encoder for Robotics

Advantage: Characteristics: Sweet tips: Application:

Key Features

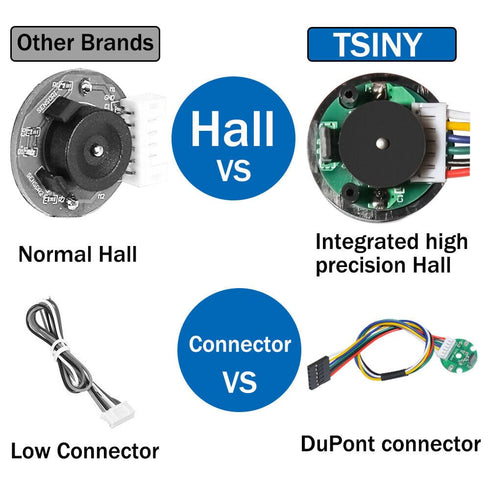

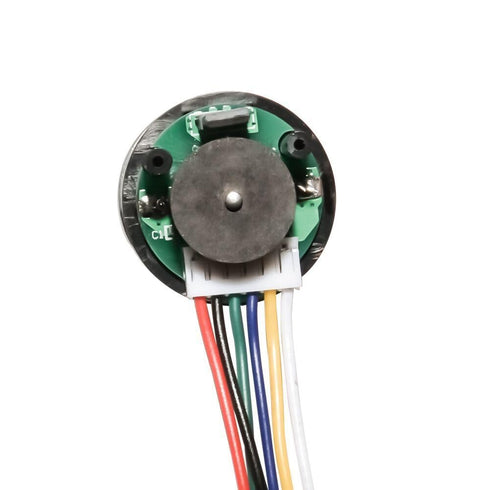

• ✅ ?Product type: DC Gear motor with two-channel Hall effect encoder; Rated Voltage: 12V; No-Load Speed: 600RPM; No-Load Current: = 0.15A; Rated Torque: 0.25kg.cm;

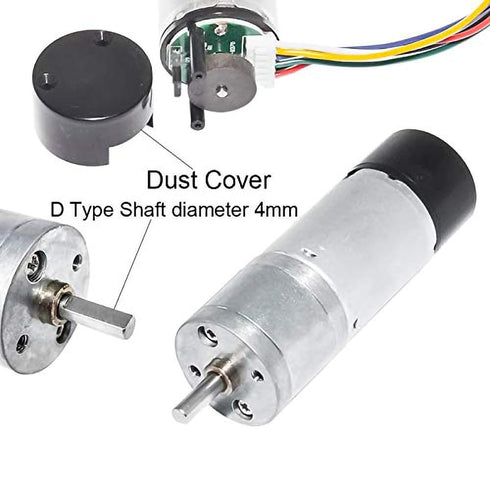

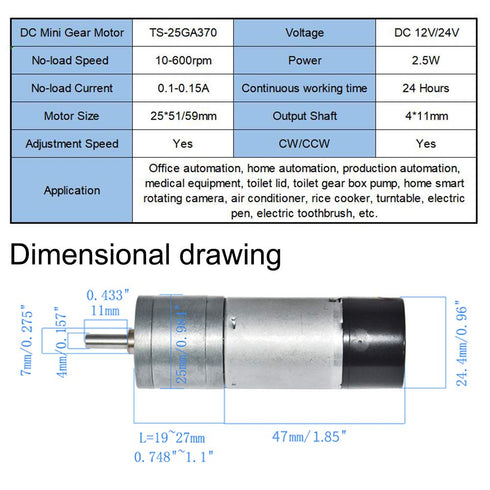

• ✅ ?Main Body Dimensions: 66 x 19mm / 2.6in x 0.75in (L*D); Out Shaft Dimensions: 11 x 4mm / 0.433 x 0.1575in (L*D) with 10 x 0.5mm / 0.39 * 0.017inches flat cut off;
• ✅ ?Single Output 120 Pulses Per Revolution: Gear Reduction Ratio: 1/10, Each Loop Output Pulses: 12PPR 10*12=120PPR;

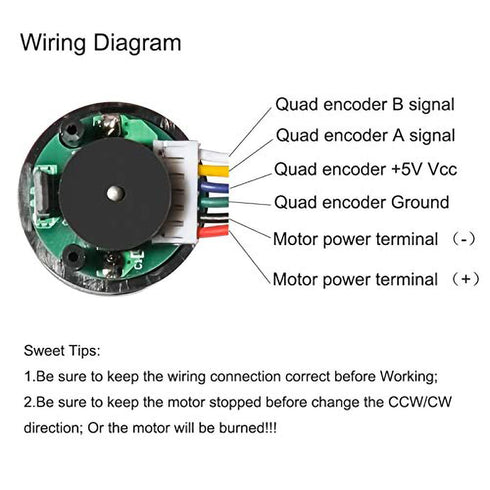

• ✅ ?Wiring Diagram: Red - Motor power terminal (+); Black - Motor power terminal(-); Green - Quad encoder Ground; Blue - Quad encoder +5V Vcc; Yellow - Quad encoder A signal; White - Quad encoder B signal.
• ✅ ?Application: Suit for Projects Such as Robotics, RC Car Model, Custom Servo, Arduino and 3D Printers, DIY Engine Toy.

✅ Product Dimensions: 2.91 x 0.96 x 0.96 inches; 4.8 ounces
