Gravity: Analog Turbidity Sensor for Arduino / ESP32 / STM32 / Raspberry Pi (ADC Required) | Water Quality Monitor | <500ms Response Time & 0-4000NTU Range

ESP32 STM32 <500ms 0-4000NTU Gravity: Analog Turbidity Sensor for Arduino / / / Raspberry Pi (ADC Required) | Water

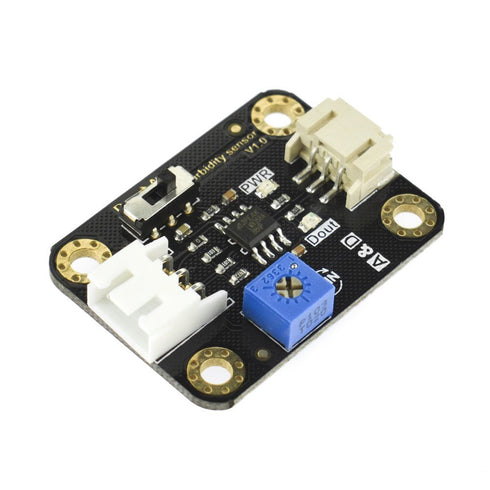

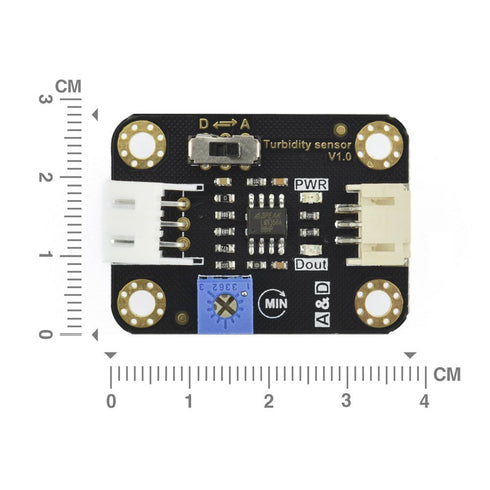

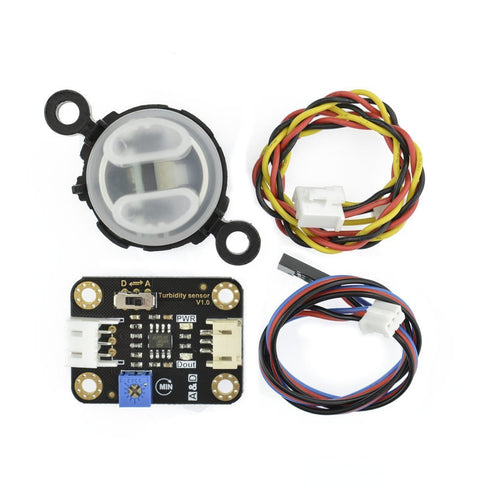

INTRODUCTION The arduino turbidity sensor detects water quality by measuring level of turbidity. It is able to detect suspended particles in water by measuring the light transmittance and scattering rate which changes with the amount of total suspended solids (TSS) in water. As the TTS increases, the liquid turbidity level increases. This arduino turbidity sensor have both analog and digital signal output modes. You can select the mode according to the MCU as threshold is adjustable in digital signal mode. Turbidity sensors can be used in measurement of water quality in rivers and streams, wastewater and effluent measurements, sediment transport research and laboratory measurements. Please note that the top of probe is not waterproof! SPECIFICATION Operating Voltage: 5V DC Operating Current: 40mA (MAX) Response Time: <500ms Insulation Resistance: 100M (Min) Output Method:Analog Analog output: 0-4.5V Digital Output: High/Low level signal (you can adjust the threshold value by adjusting the potentiometer) Operating Temperature: 5~90 Storage Temperature: -10~90 Weight: 30g Adapter Dimensions: 38*28*10mm/1.5 *1.1*0.4inches SHIPPING LIST Turbidity sensor adapter x1 Turbidity sensor probe x1 Turbidity sensor cable x1 Gravity analog sensor cable x1

Brand: DFROBOT

test measure, quality monitor, raspberry adc, inspect, adc, scientific, 4000ntu, response, sensor, adc required, scientific test, instrumentation Industrial & Scientific Test, Measure & Inspect Substance Analysis Instrumentation Turbidity Meters

Key Features

• ✓ Easy to Use: This Turbidity Sensor is compatible with Arduino, ESP32, STM32, and Raspberry Pi (ADC Required).
• ✓ Dual Signal Output: Supports both Analog (0-4.5V) and Digital (High/Low) modes for flexible integration.
• ✓ Fast Detection: Detects turbidity levels from 0-4000NTU with a fast response time of <500ms, suitable for various applications including rivers, streams, wastewater and effluent measurements, sediment transport research, and laboratory measurements.
• ✓ Detailed Tutorials: Find comprehensive tutorials for using this Turbidity Sensor on the DFRobot Official website.
• ✓ Usage Note: Avoid fully submerging the sensor in water. Place the small round head of the split parts into the water for measurement. Please be aware that the top of the probe is not waterproof.

Product Details

• ✓ Material Type: Plastic
