Figure 8 Fastener, Heavy Duty Table Top Fasteners, Desktop Clips Connector Bracket (Black) (20)

Figure 8 Fastener, Heavy Duty Table Top Fasteners, Desktop Clips Tabletop Connector Bracket (Black) (20) (20)

Figure 8 Fastener, Heavy Duty Table Top Fasteners, Desktop Clips Connector Bracket (Black) (20)

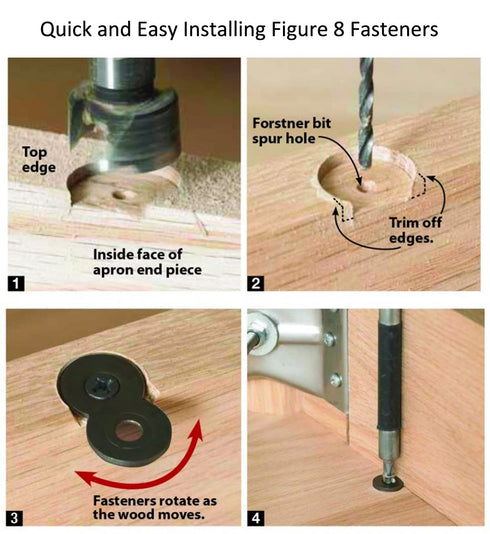

As a tabletop expands and contracts, this connector rotates within a round mortise in the edges of the apron end parts to keep the top from buckling. Figure 8 connectors vary in size and shape, with some having equal-size loops and some with the apron-side loop larger than the tabletop loop. Advantages: Figure 8 connectors require no apron grooves and are slightly less conspicuous than the Z-shape clips. Chuck into your drill press a Forstner bit just slightly larger than the figure-eight connector. Every 12"–18", on the edges of the apron end pieces, drill mortises a hair deeper than the connector thickness. Using the spur hole from the Forstner bit as a guide, drill a mounting screw pilot hole. Then trim off the mortise edges with a chisel, as shown. To allow the connector to rotate back and forth about one-eighth of a turn. Screw the figure 8 connector to the apron just loosely enough to allow it to rotate. Check that the connector sits flush with or a little lower than the apron edge. Repeat these steps to mount the remaining connectors. Do not mount them on the side pieces of the apron. With the tabletop upside down on your workbench, center the apron/leg assembly on the underside of the tabletop, and mark the mounting screw locations. Drill pilot holes into the tabletop using a depth stop and insert the mounting screws.

Key Features

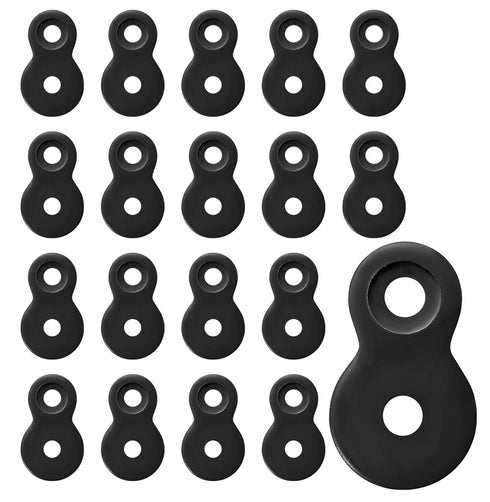

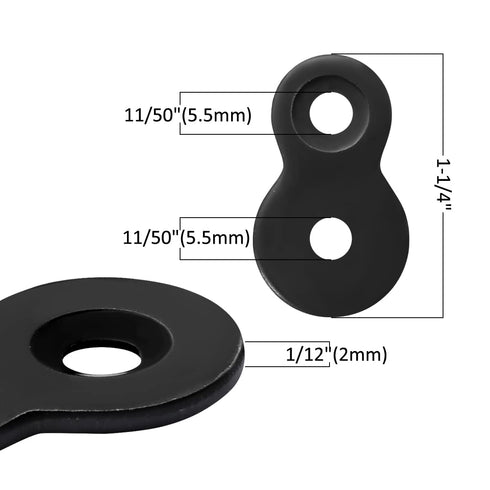

• ✅ Sophisticated Appearance: Elegant black exterior, clean figure 8 design, and stable function at the same time. The total length is about1-1/4"(32mm), the diameter of the small circle is about 3/5"(15mm), approx 1/12" thick, and the diameter of the middle screw mounting hole is about 11/50"(5.5mm).
• ✅ Wide Range of Applications: Figure 8 fasteners are a quick, safe way to attach tabletops to table skirts and reduce wood splitting. This product is used for fixing various kinds of wood, such as the extension of wooden table tops, the fixing of table legs, the reinforcement and restoration of cabinets and drawers, etc.
• ✅ Sufficient Quantity: This link contains a total of 20 Figure 8 clips as a gift. The thoughtful combination will fully meet your daily needs.
• ✅ Superior Quality: Thickened cast iron material, sturdy and durable. The upgraded coloring process is not easy to rust. Fine workmanship, smooth surface does not hurt hands.
• ✅ Easy to Use: After determining the position, use a drill or screwdriver to fix the screw on the figure 8 clip, which can be easily done by one person. Be careful not to overtighten the screws when installing, and provide a little space to accommodate seasonal wood changes.

✅ Product Dimensions: 1.26 x 0.79 x 0.08 inches; 4.52 ounces
