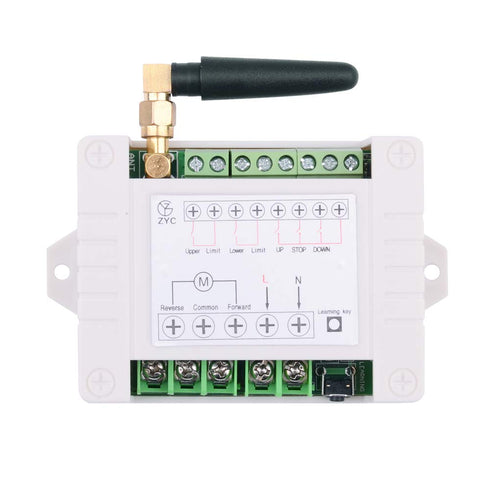

fushionsea 110V 220V 10A 85V-250V 433MHz Motor Wireless Remote Control Switch AC High Power Roller Shutter Door

Motor Wireless Remote Control Switch 110V 220V AC 10A High Power Roller Shutter Door Electric Curtain Remote Forwards Reverse, Wide Voltage 85V-250V 433MHz RF Remote Control Relay

fushionsea 110V 220V 10A 85V-250V 433MHz Motor Wireless Remote Control Switch AC High Power Roller Shutter Door

Working Voltage: AC 85V-250V Working Frequency: 433Mhz Max Load: 10A Relay ( have better load less than 5A PCB Size:75*58*15mm;Case Size :95*62*29mm #Function: Limit & Wire External Button Original State OFF, (Suddenly, the electricity was cut off, then comes again, the State still is OFF, you need manual turn it ON) Out State: Momentary Latched Adjusted by the Jumper on the Receiver Momentary---Jumper on 1 Pin Latched----Jumper on L&S Momentary ----Press button"Up", the Motor Forward, Release is Stop.Press Button "Down", the Motor Reverse, Release is Stop. Latched----Press button "Up", the Motor Forward, Press Button "Stop" is stop.Press Button "Down", the Motor Reverse, Press Button "Stop" is stop When the relay is activated, the buzzer synchronize with a beep prompt. When the receiver output state is Latched, we have set it 0.5s time delay for forwards and reverse, it is the Protection function. We have made transmitter and receiver working together and test it before ship it,when you get it don't need to do anything ,just install it. Learning Code : Press the learning button for 1 time,the learning indicator flashes slowly,Then press the transmitter button up (first button default for forward) ,the learning indicator flash 5 times and OFF,It mean the first button learning Successfully Press the learning button for 2 times,the learning indicator flashes slowly,Then press the transmitter button down (second button default for forward) ,the learning indicator flash 5 times and OFF,It mean the second button learning Successfully(Third button default for stop ,When the jumper set for Latched) Clear code : Press the learning button on the receiver for 5s,the learning indicator will flash 3 times and OFF, It mean all the transmitter code in the receiver have been cleared. Package Include: 1 x Receiver 2 x TransmitterBattery included

Brand: fushionsea

motor, reverse, wide, 433mhz, supplies, 250v, 110v, relay, electric curtain, forwards reverse, high, high power Tools & Home Improvement Building Supplies Building Materials Doors Garage Doors, Openers & Parts

Key Features

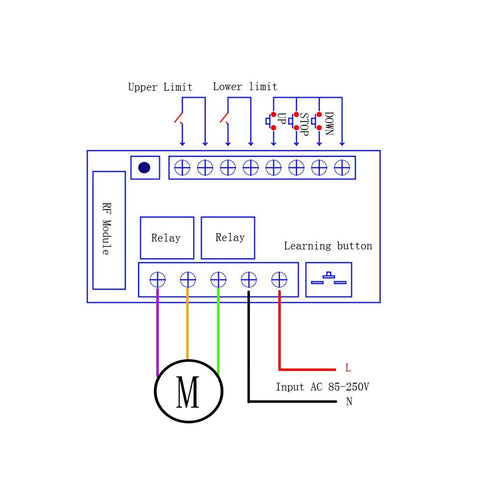

• ✓ The Receiver power supply is AC 85V--250V, Output with electricEqual to input voltage. Receiver With special limit switch and manual control button wiring port. (Notice: Max Load: 10A Relay, have better load less than 5A; have better load less than 500W)
• ✓ The wireless remote control switch adopts radio frequency identification technology. This is a wide voltage 85V-250v 2-Channel wireless remote control switch. it has stable and reliable performance, and has the advantages of simple use, safety and reliability.
• ✓ Signal of the wireless RF switch can pass through walls, floors and doors, steadily control receiver from any place within a reliable distance. Resist InterferenceIt adopts non-directional wireless encoding technology, allowing independent control without mutual interference. Max range is up to 20--100meters with no obstacle.
• ✓ We have made transmitter and receiver working together and test it before ship it,when you get it don't need to do anything ,just install it. Out State: Momentary Latched Adjusted by the Jumper on the Receiver, ( we ship default as Latched, if you need use Momentary to change the Jumper on the Receiver )
• ✓ It is a new type of intelligent switch, The wireless remote control switch can control one or more devices in the room. widely used in remote water pump switches, motor, Electric curtain machine, wireless remote control machine switches, wireless remote control sockets,lifting equipment, wireless lamps, window, entrance, Garage Doorsvarious types of wireless home appliances control and so on.

Product Details

• ✓ Item Weight: 0.1 Kilograms
• ✓ Wattage: 500
• ✓ Material Type: Plastic
