GODIYMODULES 2PCS DC3-5V 2cm-400cm Ultrasonic Sensor Waterproof Transceiver Split Ultrasonic Ranging Module Distance

2PCS DC3-5V Ultrasonic Sensor Waterproof Transceiver Split Ultrasonic Ranging Module 2cm-400cm Distance for Arduino Ultrasonic Ranging Sensor

GODIYMODULES 2PCS DC3-5V 2cm-400cm Ultrasonic Sensor Waterproof Transceiver Split Ultrasonic Ranging Module Distance

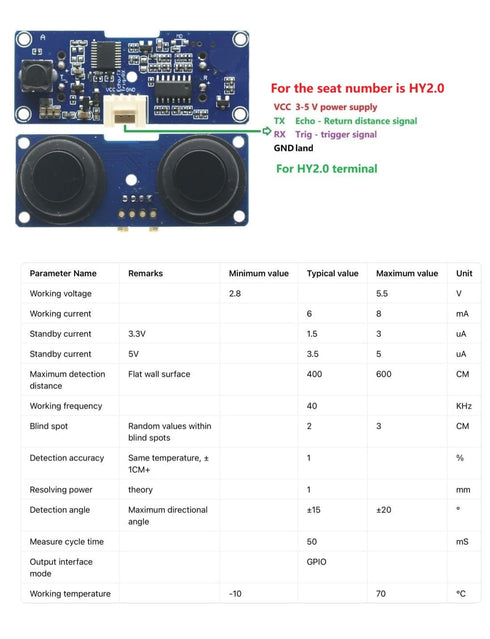

Product parameters: Working voltage: 3-5 V Working current: 6mA Standby current: 3.5uA 5V 1.5uA 3.3V Software compatible with HC-SR04 2CM blind area, 4M typical farthest ranging 50mS measurement cycle Product overview: RCWL-1670 is a waterproof, transceiver split ultrasonic ranging module. 2cm-400cm ranging range, 3-5 V wide voltage operation, 1.5uA 3.3V / 3.5uA 5V Ultra low standby power consumption. The module includes a transmitter receiver split waterproof ultrasonic sensor and a control circuit. The external control software is compatible with the HC-SR04 module. Pin description: Label 5V: 3-5V power supply Label TX: ECHO return distance signal Label RX: TRIG trigger signal Label GND: ground Matters needing attention: 1: This module should not be connected with electricity. If it is necessary to connect with electricity, let the Gnd end of the module connect first. 2: If the test surface is not very regular or when testing remote objects, multiple measurements can be used to correct. 3: The interval between two tests shall not be less than 50mS. Package list: Module *2

Brand: GODIYMODULES

400cm, split ultrasonic, module 2cm, ultrasonic ranging, scientific, 2cm, transceiver, 2pcs dc3, waterproof, godiymodules, ranging, arduino Industrial & Scientific Industrial Electrical Sensors Proximity Sensors Ultrasonic

Key Features

• ✅ The RCWL-1670 is a waterproof transceiver split ultrasonic rangefinder module. Range 2cm-400cm, 3-5 V wide voltage operation.
• ✅ Ultra low standby power consumption. The module includes a transmitter receiver split waterproof ultrasonic sensor and a control circuit. The external control software is compatible with the HC-SR04 module.
• ✅ 2PCS Ultrasonic Sensor Waterproof Transceiver Split Ultrasonic Ranging Module 2cm-400cm Distance For Arduino Ultrasonic Ranging Sensor

Product Details

• ✅ Material Type: Plastic, Ceramic, Silicon
• ✅ Included Components: 2PCS
