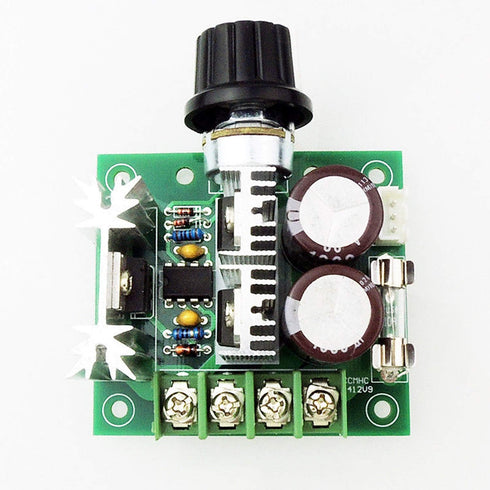

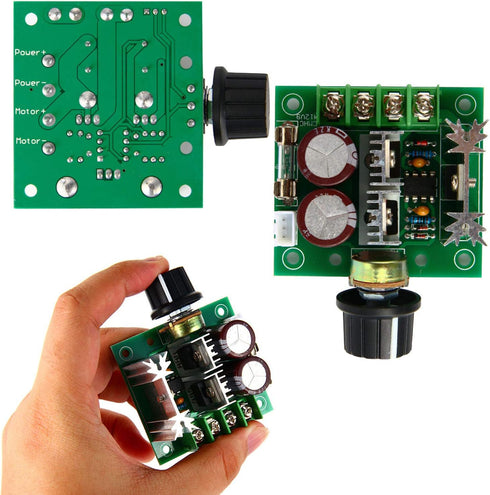

Greartisan 12V-40V 10A DC Motor Speed Controller PWM Variable Speed Regulator with Control Knob

Greartisan 12V-40V 10A DC Motor Speed Controller PWM Variable Speed Regulator Governor Switch CCMHCN with Speed Control Knob

Greartisan 12V-40V 10A DC Motor Speed Controller PWM Variable Speed Regulator with Control Knob

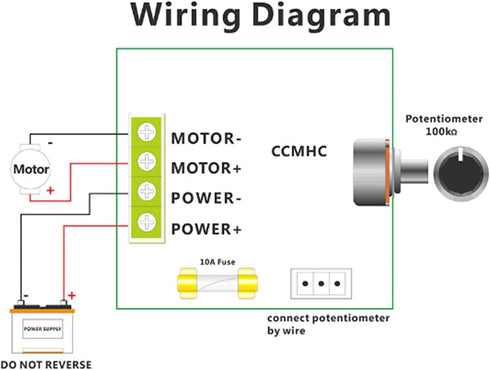

Descprition: Model: CCMHC Knob Potentiometer: Resistance Value B100K; Trepanning 8mm Work Voltage: DC 12V-40V Output Voltage: Approx.0%-100% of Input Voltage Control Power: 12V*8A=96W,24V*8A=192W,......40V*8A=320W Rated Current: 8A Max Current: 10A Quiescent Current: 0.02A (Standby) Speed Range: 10%-100% PWM Frequency: 13kHz PWM Pulse Width Speed Range: 10%-100% Power Range: 0.01-400W Fuse Wire: 5x20mm 10A Module Size: 60*55*28mm Weight: 66g Packages: 1 x DC Motor Speed Controller PLEASE NOTE: 1.DC power supply polarity can not be inversed, otherwise is may damage speeder. 2.If need the forward and reverse function, customer can connect the positive and negative switch. 3.Reserved lead type knob interface, if use lead type knob, it need to dismantle the fixed potentiometer first. Suitable for DC motor speed control etc. 4.Not suitable for AC power supply.

Key Features

• ✅ Military grade board for PCB!
• ✅ All chips are made of advanced materials, rather than being dismantled or refurbished.
• ✅ Adopting 50V 1000uF large capacitance,with power supply reverse polarity protection, over-voltage protection funcion.
• ✅ The power tube uses IRF3205, which is absolutely necessary to carry your motor. (Parameter drain current Id max value: 82A; Max voltage Vds: 75V; ON resistance, Rds(on): 0.013ohm).
• ✅ The terminal uses 8500 high-current terminals, labeled 300V 20A!
