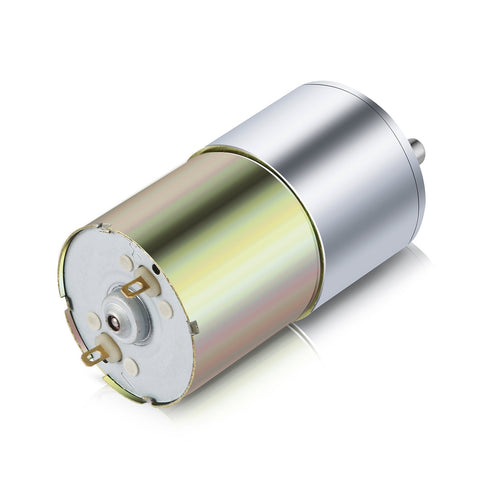

Greartisan DC 24V 5RPM Gear Motor, High Torque Electric Micro Speed Reduction Geared Motor, Eccentric Output Shaft

SKU: PGABL1414337

VENDOR: Greartisan

$25.74$22.74

You Save: $3.00 (12%)

Hurry! Only 10 Left in Stock!

Free Shipping Across the United States

All orders within the United States qualify for 100% free shipping.

Fast Processing & Dispatch

All orders are shipped within 1 business day after purchase.

30-Day Free Returns

Not satisfied? You can return your order for free within 30 days after delivery.

PRODUCT INFORMATION
PRODUCT INFORMATION

Greartisan DC 24V 5RPM Gear Motor High Torque Electric Micro Speed Reduction Geared Motor Eccentric Output Shaft 37mm Diameter Gearbox

Greartisan DC 24V 5RPM Gear Motor, High Torque Electric Micro Speed Reduction Geared Motor, Eccentric Output Shaft

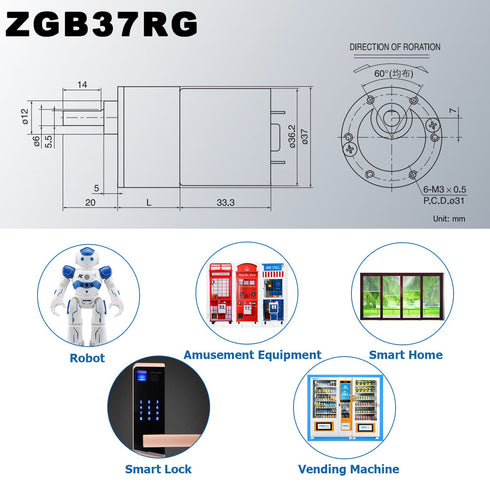

Specifications: Rated Voltage: DC 24V Reduction Ratio: 1:561 No-Load Speed: 5RPM No-Load Current: 0.08Amp Rated Torque: 10Kg.cm Rated Current: 0.18Amp D Shaped Output Shaft Size: 6*14mm (0.24" x 0.55") (D*L) Gearbox Size: 37 x 30.5mm (1.46" x 1.18") (D*L) Motor Size: 36.2 x 33.3mm (1.43" x 1.31") (D*L) Mounting Hole Size: M3 (not included) Application: Vending equipments, pan camera, slot machine, money detector, coin refund devices, automatic doors, peritoneal machine, toys motor etc. Packages: - 1 x DC Geared Motor PLEASE NOTE: 1.Use tolerance: Pay attention to the use of voltage and current range, otherwise the motor performance and motor life will decline. 2.Handling motors: Gently, as far as possible the use of motor shell part. 3.Motor wiring: Red lead to the positive electrode, black lead to the negative pole, if reversed, the motor rotation in the opposite direction. 4.Overload: As far as possible within the specified load range, prohibit motor blocking or close to the stall state for too long time to runs. Otherwise, the motor will burn out. 5.Motor storage: -- Storage temperature: 0 - 40 ; -- Storage humidity: 15% -90% RH; -- Avoid placing in high temperature, high humidity and corrosive gases. 6.Motor use temperature: 0 - 70

Key Features

  • ✅ ALL-METAL GEARS High-temperature resistance, high abrasion resistance, strong load capacity, sturdy and durable, effectively protect the gear box motor body.

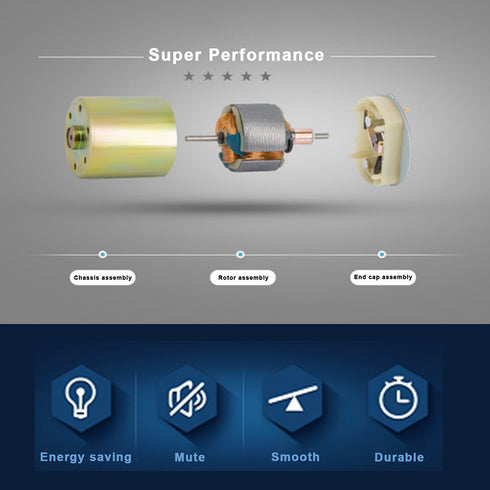

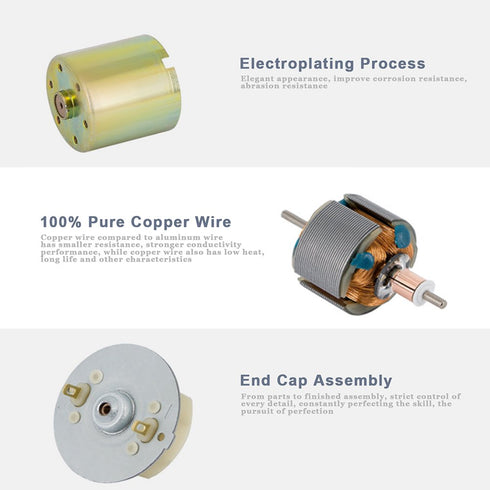

  • ✅ PURE COPPER WIRE CORE ROTOR With precision winding technology, the geared motor power instant increased by 30%.

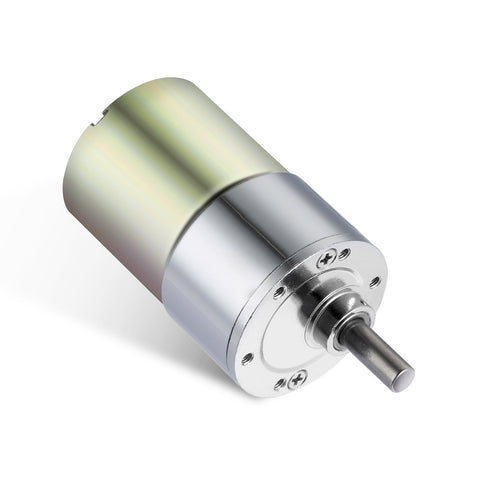

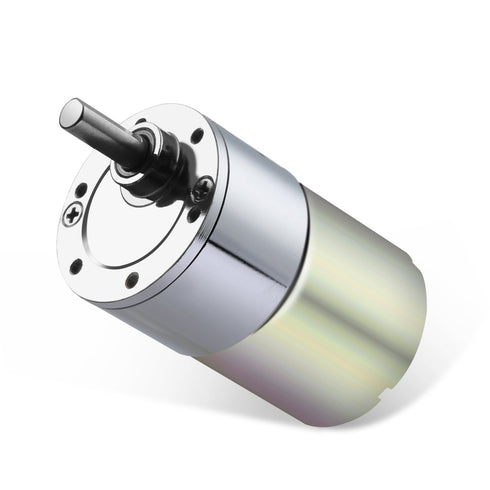

  • ✅ D SHAPED OUTPUT SHAFT Using high hardness steel, good toughness, impact resistance, the quality of the bearing and the service life of the gear motor are improved, extremely durable.
  • ✅ POSITIVE-NEGATIVE ROTATION You also can adjust the speed, but the motor speed can only be reduced, can not be raised. Low noise and high torque, such as 10rpm can drive 15 kilograms.
  • ✅ Greartisan Gurantee We only offer high quality motors! Any quality issues, please feel free to contact our customer service!
