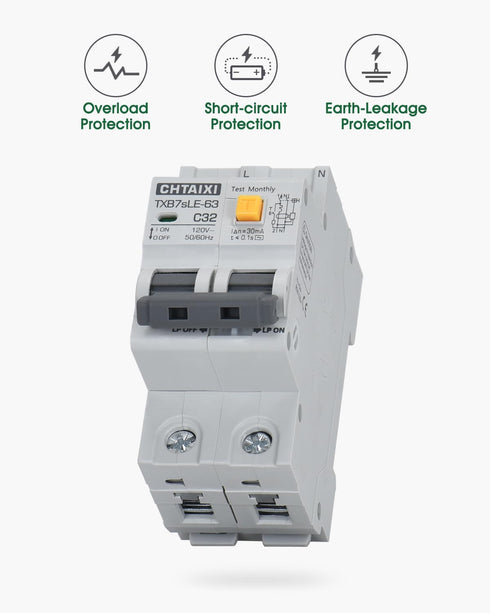

Ground Fault Circuit Breaker, 10 Amp 120V AC, DIN Rail Mount, Thermal-Magnetic Trip Protection

Ground Fault Circuit Breaker, 10 Amp 120V AC DIN Rail Mount Residual Current Circuit Breaker, Thermal-Magnetic Trip, Earth-leakage Protection Circuit Breaker 1PN RCBO C10

Ground Fault Circuit Breaker, 10 Amp 120V AC, DIN Rail Mount, Thermal-Magnetic Trip Protection

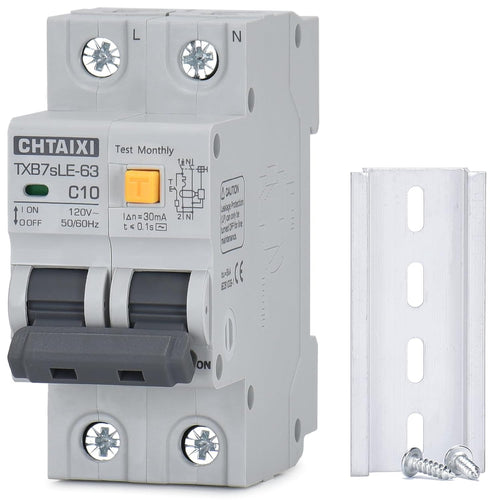

Specifications Product type: Residual Current Circuit Breaker Earth-leakage protection class: AC Earth-leakage sensitivity: 0.03A, t 0.1s. Rated operational voltage: 120V AC Rated current [In]: 10 A / 16 A / 20 A / 25 A / 32 A / 40 A / 50 A (optional) Poles: 1P+N Trip unit technology: Thermal-magnetic, Residual Current Trip Curve code: C Breaking capacity: 6 kA Ics=Icu Uimp: 4 kV Mechanical durability: 10000 cycles Electrical durability: 4000 cycles Operating temperature: -13 F(-25 ) ~ 140 F(60 ) Mounting support: 35 mm DIN rail Tightening torque: 2.5 N.m Standard: IEC61009-1 Package includes 1 x Residual Current Circuit Breaker 1 x DIN rail 2 x screws

Key Features

• ✅ FUNCTIONS: Used for earth-leakage protection ground fault protection of 110V 120V AC circuits, also short-circuit overload protection, control and isolation.
• ✅ Residual Current: AC type, 0.03A, t 0.1s.

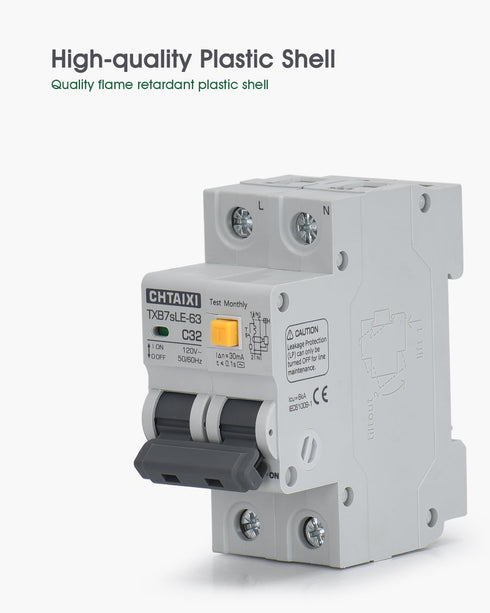

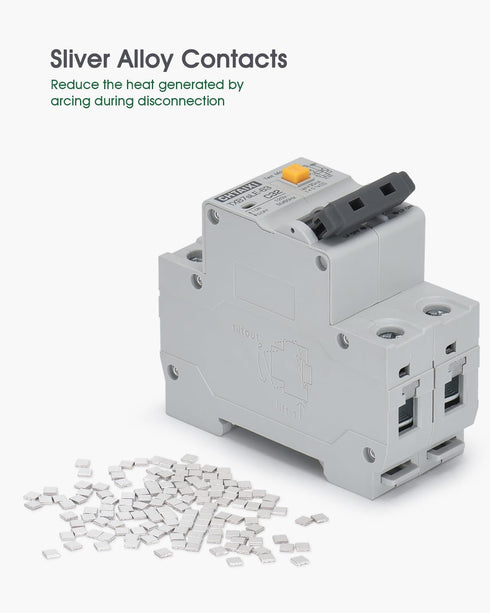

• ✅ QUALITY: Silver alloy contacts, flame retardant material shell, color indicators.
• ✅ APPLICATION: Can be used in solar ac system, RV, home line circuits, or other 50/60Hz AC systems.
• ✅ INSTALLATION: 35mm DIN rail mount, Screw clamp wires (Soft silicone wire needs to crimp fixed the wire end with copper crimp first).

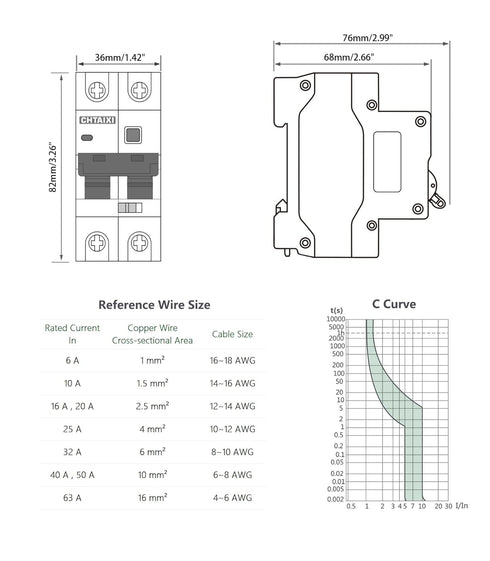

✅ Product Dimensions: 2.95 x 1.42 x 3.15 inches; 6.74 ounces
