Gugxiom 2.0 USB to CAN Adapter, CANable CAN Analyzer Module, Base on Open Source Hardware, Supports Multiple Firmware

Gugxiom USB to CAN Adapter, CANable 2.0 CAN Analyzer Module, Base on Open Source Hardware, Supports Multiple Firmware

Gugxiom 2.0 USB to CAN Adapter, CANable CAN Analyzer Module, Base on Open Source Hardware, Supports Multiple Firmware

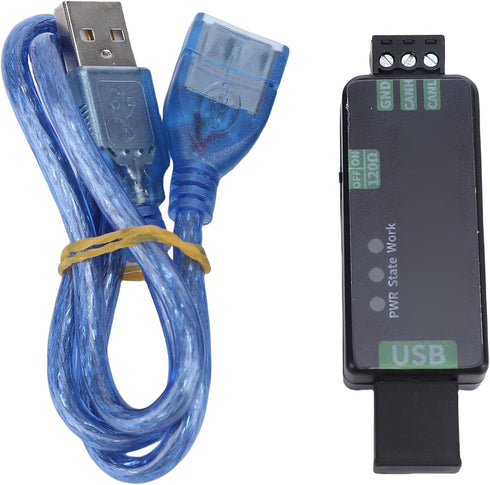

Specification: Item Type: USB to CAN Converter Module Material: ABS Microprocessor: for STM32G431C8T6 Communication Chip: for TJA1051T/3 CAN FD: Support CAN 2.0 A/B: Support Firmware: for candleLight, for slcan Transmission Rate: 1M/2M/5M Signal Isolation: 5.7kV rms Anti Interference: Common Mode Transient Immunity > 75kV/s ESD Protection: 30kV Package List: 1 x USB to CAN Converter Module 1 x USB Cable

Brand: Gugxiom

can analyzer, scientific test, gugxiom, source hardware, test, source, analyzer, usb, multiple, gugxiom usb, base open, measure Industrial & Scientific Test, Measure & Inspect Electrical Testing Circuit Tracers & Analyzers

Key Features

• ✅ USB CAN Analyzer: It is a small, low cost open source USB to CAN analyzer. The CANable enumerates as a virtual serial port on your computer and acts as a serial line interface to the CAN bus. When using the for candleLight firmware, CANable is enumerated as a local CAN interface on for Linux. CANable 2.0 supports standard CAN 2.0A, CAN 2.0B, and CAN FD.
• ✅ Upgrade Version: The CANable V2.0 Pro module is an upgraded version of the CANable V2.0 module, featuring high speed transmission rates and high operational stability, with enhanced anti interference capabilities. It is well suited for industrial debugging or applications in the motor field. The CANable analyzer is compatible with for ARM based embedded platforms such as for ODROID, for , etc., making it ideal for integration into OEM products.
• ✅ Baud Rate: It supports CAN 2.0A and CAN 2.0B, with a baud rate of up to 1M; it supports for candleLight and for slcan firmware, slcan initially supports CAN FD; The test rate can reach 2M/5M baud rate.

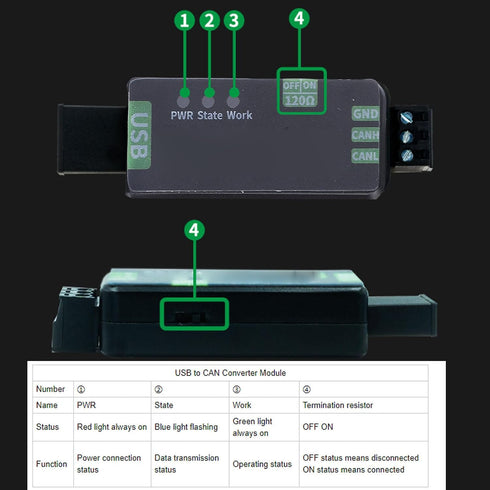

• ✅ Compatibility: USB to CAN module converter is compatible with for socketcan through for slcand; terminal resistors can be enabled/disabled.

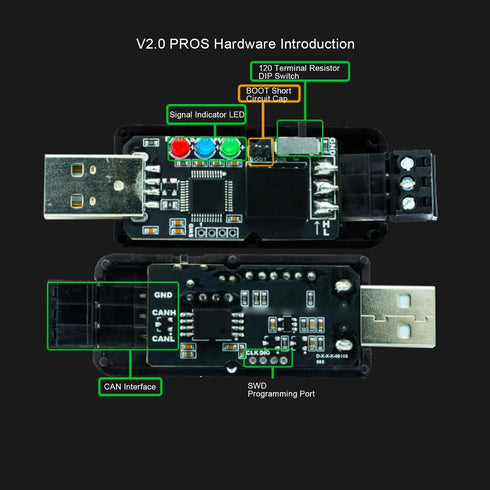

• ✅ Upgrade Firmware: Supports Type C interface for online firmware upgrades and DFU mode firmware upgrades; it uses a high performance for ARM Cortex M4 ST M32G431C8T6 processor, with a running frequency of up to 170MHz.

Product Details

• ✅ Model Number: Gugxiomkzf7ng6bwc
