Hall Sensor DC 12V Proximity Switch NPN Normally Open 3 Wire

Hall Sensor,DC 12V Proximity Switch NPN 3 Wire Normally Open

Hall Sensor DC 12V Proximity Switch NPN Normally Open 3 Wire

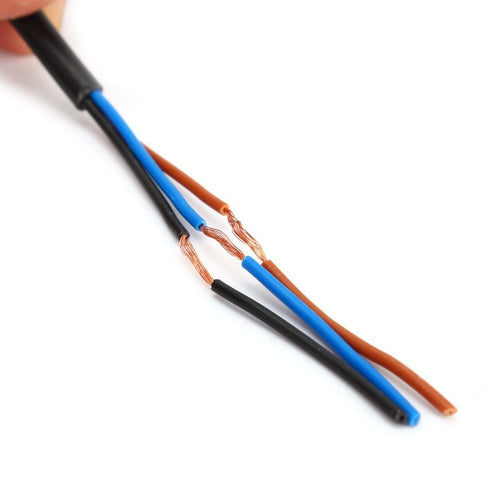

Description: This Hall NPN sensor consists of voltage regulator, voltage generator, difference amplifier, Schmitt and open collector output. The input are the magnetic induction, the output is a digital voltage . Specifications: Type: NJK - 5002C Appearance: M12mm cylinder Output: NPN three wire normally open type The detection distance: 10 mm Supply voltage: 5-24VDC,6-36VDC Output current: 200 mA Objects can be detected: permanent magnets Switching frequency: 320 KHZ The shell material: copper Wiring:brown-Power+,blue-Power-,black- Package included: 1 x Hall NPN sensor

Key Features

• ✅ Hall sensor supply voltage range is wide. The proximity switch has a built-in intelligent sensor chip, which can sensitively detect objects. When the proximity switch is close to a single target object, a control is sent.
• ✅ Appearance: M12mm cylinder; Output: NPN three wire normally open type; The detection distance: 10 mm.
• ✅ Supply voltage: 5-24VDC,6-36VDC; Output current: 200 mA; Switching frequency: 320 KHZ;
• ✅ Hall NPN sensor consists is widely used in automatic control industry for detecting, controlling, and noncontact switching
• ✅ The housing material of the Hall sensor is copper

✅ Product Dimensions: 3.15 x 1.57 x 0.98 inches; 2.4 ounces
