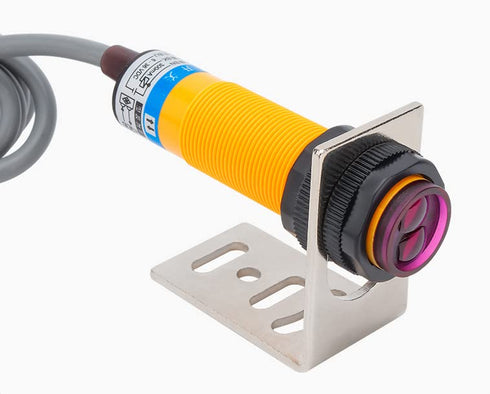

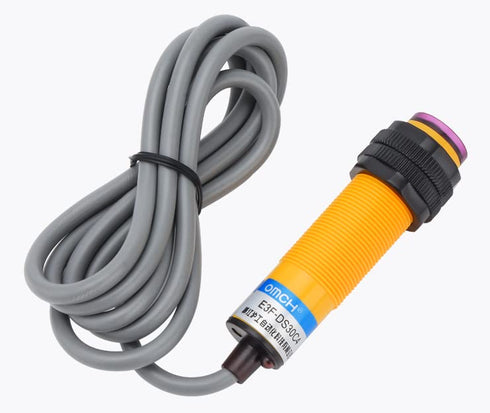

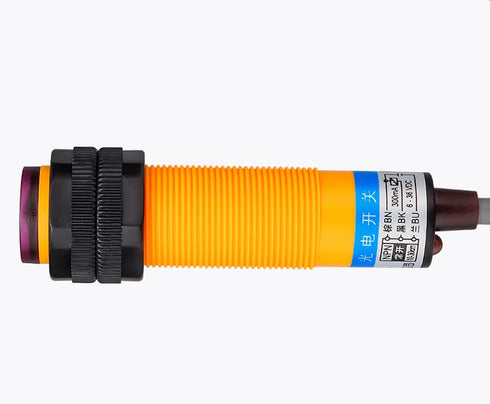

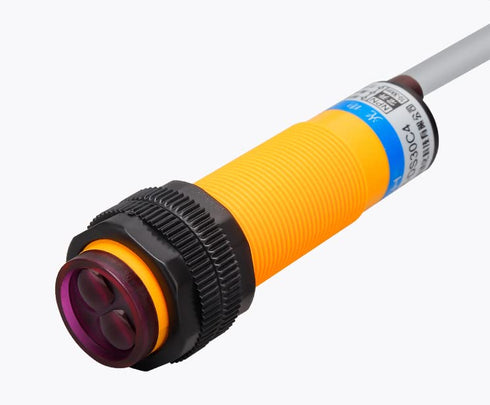

Heyiarbeit M18 Diffuse Photoelectric Switch Sensor Optical E3F-DS30C4 3 Lines NPN 30 cm Adjustable

Heyiarbeit M18 Diffuse Photoelectric Switch Sensor Optical E3F-DS30C4 3 Lines NPN 30 cm Adjustable NPN Proximity Switch DC 6-36V

Heyiarbeit M18 Diffuse Photoelectric Switch Sensor Optical E3F-DS30C4 3 Lines NPN 30 cm Adjustable

The photoelectric switch with integrated circuit technology and SMT surface mount technology, a new generation of optical switch sensor devices are manufactured with external synchronization, anti-interference, high reliability,working for regional stability and self-diagnosis. The interior adopts high-quality transmitting tube, and the lens is PMMA, with long distance, strong light transmission and high precision. The shell is a standard threaded pipe, which is fastened with screws. The material is ABS, insulation, flame retardant, anti-corrosion and moisture-proof. LED light bead, low power consumption, high height, and the sensing state is clearly visible. PVC fiber conductor outer sheath, pure copper wire core, good conductive property and strong anti-aging property. A retroreflective arrangement places the transmitter and receiver at the same location and uses a reflector to bounce the light beam back from the transmitter to the receiver. An object is sensed when the beam is interrupted and fails to reach the receiver. Optical switch control by infraredray,as proximity sensor,including a transmitter and receiver in it. Can be applied in security system, manufacturing industry etc. Diffuse reflection photoelectric switch is widely used in machine tools, metallurgy, chemical industry, aerospace, light textile, printing and other industries. It is used in daily life, such as automatic doors in hotels, restaurants and garages, and automatic hot air heaters. In terms of security and anti-theft, such as data archives, finance and accounting, finance, museums, treasury and other important places, it is usually equipped with various devices close to quick closing.

Key Features

• ✅ ?Specifications?- Product Name: Photoelectric Switch; Model: E3F-DS30C4; Detection Way: Diffuse reflection type; Whether the detection distance is adjustable: Adjustable; Detection object: Opaque object; Color: Black, Orange
• ✅ ?Parameters?- Output Type: NPN NO 3 Wires; Working Voltage: DC 6-36V; Output Current: 300mA; Sensory Distance: 30cm; Thread diameter: M18
• ✅ ?Precise Detecting?- Photoelectric switch sensor is the use of the test object to blocked or reflected beam, by the synchronization loop gating circuit to detect the presence or absence of the object. All objects can reflect light can be detected
• ✅ ?Application?- The current sensor switch is widely used in mechanical automation, 3D Printer Probe Bed Leveling, paper making, light industry for limiting station, orientation taking count, speeding trial etc
• ✅ ?Package Contents?- 1 x Photoelectric Sensors
