HiLetgo 2pcs JSN-SR04T Waterproof Ultrasonic Module Distance Measuring Transducer Sensor for Arduino

HiLetgo 2pcs JSN-SR04T Integrated Ultrasonic Module Distance Measuring Transducer Sensor Waterproof for Arduino

HiLetgo 2pcs JSN-SR04T Waterproof Ultrasonic Module Distance Measuring Transducer Sensor for Arduino

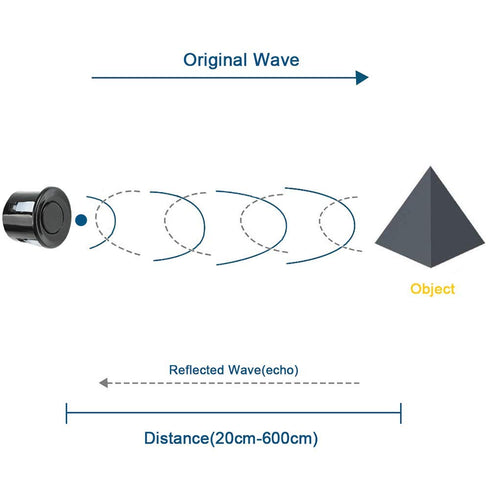

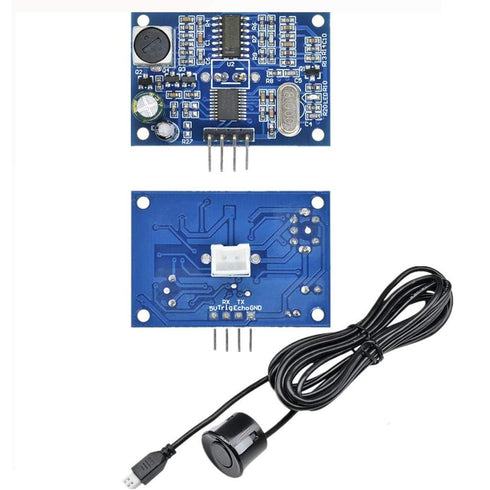

Specification: Electrical parameters: JSN-SR04T Wiring: + 5V (positive power supply) Trig (control side) RX Echo (the receiver) TX GND (negative) Module size: 41mm * 28.5mm Resolution: about 0.5cm Angle: less than 50 degrees Working temperature: -10 ~ 70 ? Storage temperature: -20 ~ 80 ? The basic working principle: (1) Using IO port TRIG trigger location, to the high level signal of at least 10us; (2) Module automatically sends 8 40KHz Fang Bo, automatic detecting whether a signal return; (3) A signal return, a high level is output through the IO port ECHO, the time duration of the high level is ultrasonic from launch to return. The test distance = (high level time * speed of sound (340M/S)) /2; This module uses the simple method, a control port with a 10US above high level, can wait for high level output at the receiving port. An output can drive the timer, when this port is low can read the timer value, this time for the location of the time, can be calculated distance. So constantly cycle test, that can achieve the measurement of the value of your mobile. Package Included: 2* JSN-SR04T Ultrasonic Distance Measuring Transducer Sensor Waterproof

Key Features

• ✅ With a waterproof sealed emitter. This sensor is suitable for outdoor applications such as car reversing sensors, security alarms, industrial inspection, etc.

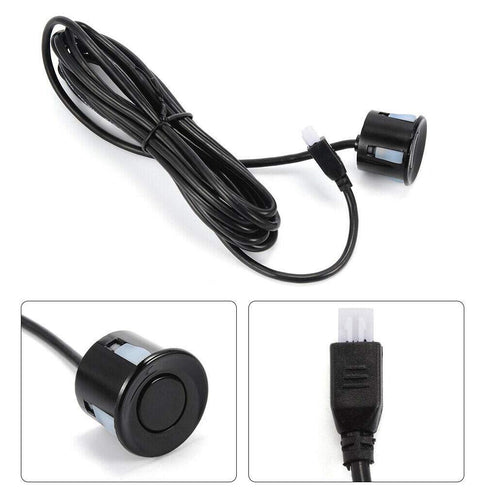

• ✅ Integrated with wire enclosed waterproof probe, suitable for wet, harsh measurement occasions. Please note that the device is waterproof, but it couldn't work underwater.
• ✅ Working voltage:DC 5V, Static current:5mA, Total current work: 30mA. Working range: 25cm-4M, Working frequency: 40KHZ, Detecting angle: 70 degree.
• ✅ The module has a variety of modes that can be modified manually, suitable for testing and teaching experiments in different occasions.
• ✅ Application: Horizontal distance messurement,Obstacle avoidance, automatic control, Traffic control, Security, industrial control.
