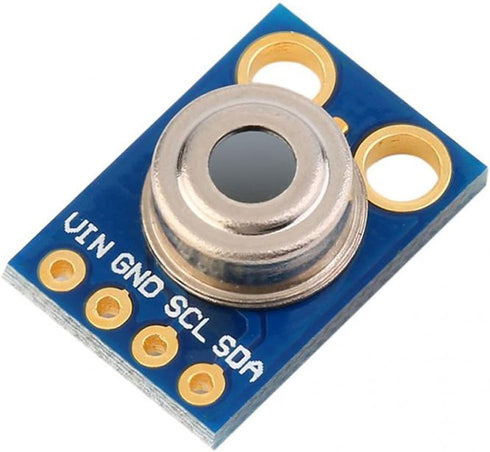

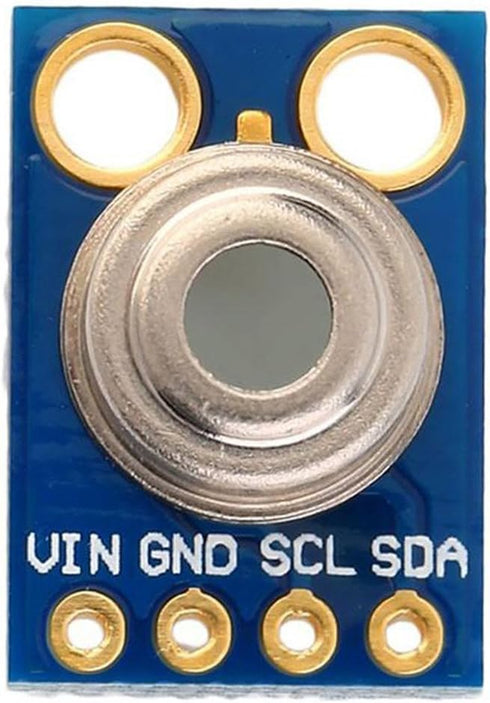

HiLetgo GY-906 MLX90614ESF Non-contact Infrared Temperature Sensor Module IIC I2C for Arduino

HiLetgo GY-906 MLX90614ESF Non-contact Infrared Temperature Sensor Module IIC I2C Serial for Arduino

HiLetgo GY-906 MLX90614ESF Non-contact Infrared Temperature Sensor Module IIC I2C for Arduino

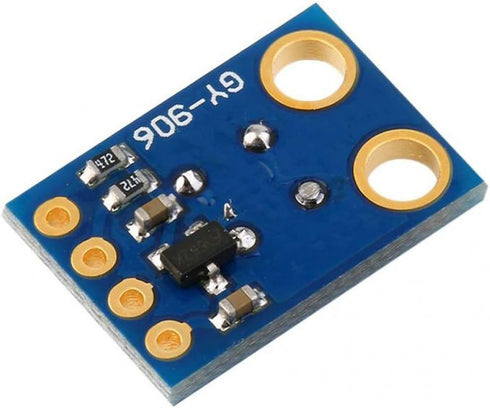

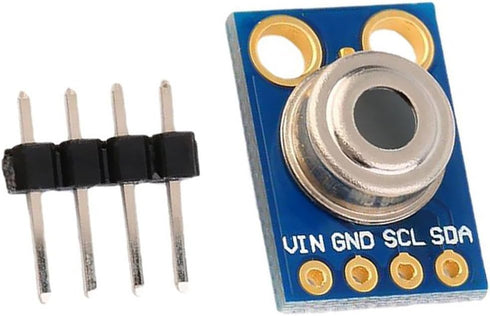

Features and Benefits: *Small size, low cost *Mounted on a breakout board with two types of pins *10k Pull up resistors for the I2C interface with optional solder jumpers *Easy to integrate *Factory calibrated in wide temperature range: *-40…+125°C for sensor temperature and *-70…+380°C for object temperature. *High accuracy of 0.5°C over wide temperaturerange (0…+50°C for both Ta and To) High (medical) accuracy calibration *Measurement resolution of 0.02°C *Single and dual zone versions *SMBus compatible digital interface *Customizable PWM output for continuousreading *Simple adaptation for 8…16V applications *Sleep mode for reduced power consumption *Different package options for applications andmeasurements versatility *Automotive grade Applications Examples: *High precision non-contact temperaturemeasurements *Thermal Comfort sensor for Mobile AirConditioning control system *Temperature sensing element for residential,commercial and industrial building airconditioning Windshield defogging *Automotive blind angle detection *Industrial temperature control of moving parts *Temperature control in printers and copiers *Home appliances with temperature control *Healthcare *Livestock monitoring *Movement detection *Multiple zone temperature control – up to 127sensors can be read via common 2 wires *Thermal relay / alert *Body temperature measurement Package included: 1* MLX90614 Infrared Temperature Sensor Module NOTE:Please contact us if you need the Datasheet.

Key Features

• ✅ MLX90614 is an infrared thermometer for non-contact temperature measurements.
• ✅ Both the IR sensitive thermopile detector chip and the signal conditioning ASIC are integrated in the same TO-39 can.
• ✅ Integrated into the MLX90614 are a low noise amplifier, 17-bit ADC and powerful DSP unit thus achieving high accuracy and resolution of the thermometer.
• ✅ The thermometer comes factory calibrated with a digital SMBus output giving full access to the measured temperature in the complete temperature range(s) with a resolution of 0.02°C.
• ✅ The user can configure the digital output to be pulse width modulation (PWM). As a standard, the 10-bit PWM is configured to continuously transmit the measured temperature in range of -20 to 120°C, with an output resolution of 0.14°C.

✅ Color: Blue
