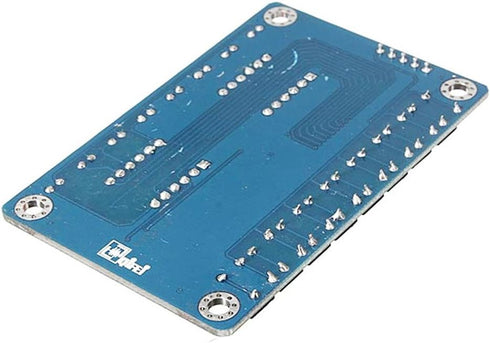

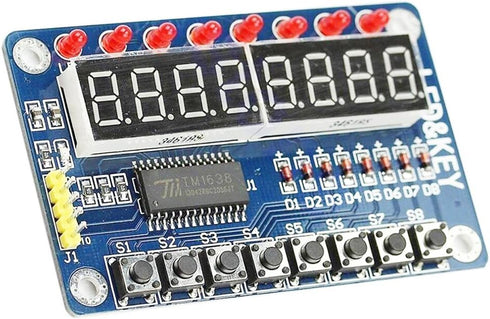

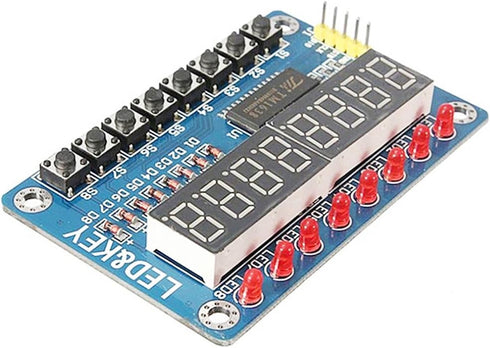

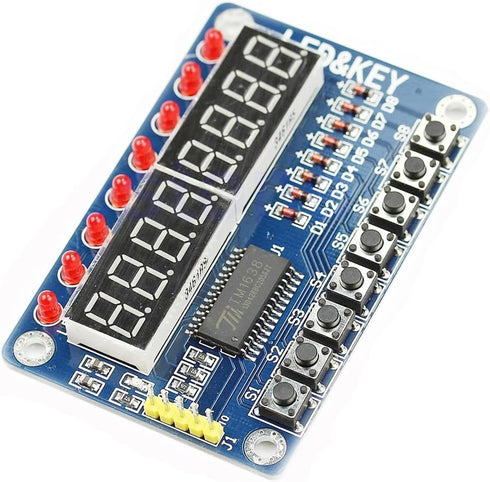

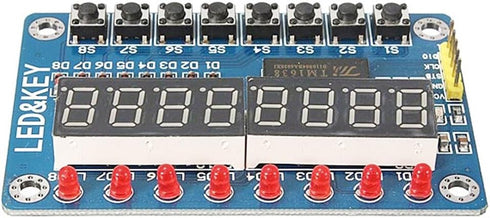

HiLetgo TM1638 8 Bits Digital LED Tube Display Module with 8 LEDs and 8 Button Keys
SKU: PGABL1151972
VENDOR: HiLetgo
You Save: $1.30 (10%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.
HiLetgo TM1638 8 Bits Digital LED Tube Display Module with 8 LEDs 8 Button keys for AVR Arduino ARM
HiLetgo TM1638 8 Bits Digital LED Tube Display Module with 8 LEDs and 8 Button Keys
Features: 8 Bits, 8 keys, 8 LEDs, 8 digital tubes, common cathode LED digital tube. With TM1638 Chip, this module gather more than three common SCM peripheral circuits. The advantage is only three IO ports will be occupied when it drives. SCM doesn't need to work for scaning display and key scaning. It only need to read the relevant register to send display data or test button so it save MCU resources effectively. Keys are sensitive and display effectively. Specification: Weight: 28g Material: Glass fiber reinforced plastic, PBT shell, PA blades How to connect: VCC GND 5V power supply, STB CLK DIO SCM IO port. Package included: 1*8-Bit LED TM1638 Display module
Key Features
- ✅ TM1638 is a LED (light-emitting diode display) driver control circuit with a keyboard scan interface, the internal set Into a MCU digital interface, data latch, LED high-voltage driver, keyboard scanning circuit.
- ✅ Power CMOS process;Display mode 10 segments × 8 digits;Key scan (8 × 3bit).
- ✅ Brightness adjustment circuit (adjustable duty cycle 8);Serial Interface (CLK, STB, DIO).
- ✅ Oscillation method: RC oscillation (450KHz + 5%);Built-in power-on reset circuit;Available in SOP28 package.
- ✅ Mainly used in refrigerators, air conditioners, home theater products such as high-segment display driver.
Shipping & Guarantees
- ✅ FREE standard shipping within the United States (3–6 business days)
- ✅ 100% money-back guarantee for lost or damaged items
- ✅ Secure checkout with encrypted payment processing
- ✅ Shipping via UPS, FedEx, and USPS
- ✅ Ships to lower 48 states only (no PO Boxes / APO / FPO)
Returns
- ✅ 30-day hassle-free returns
- ✅ Items must be unused and in original packaging
- ✅ Full refund if item is not delivered
- ✅ Guaranteed delivery within 6–7 business days
Payment Methods
✅ Credit Cards, PayPal, Shop Pay, Apple Pay, Google Pay, Amazon Pay, Meta Pay
Customer Support
✅ Questions? Contact us at Support@GiftAbay.com
We respond within 24 hours on business days.
SEO Title:
Keywords:
Category: Industrial & Scientific
Subcategories: Industrial Electrical, Optoelectronic Products, Optoelectronic Displays, LED Segment Displays
