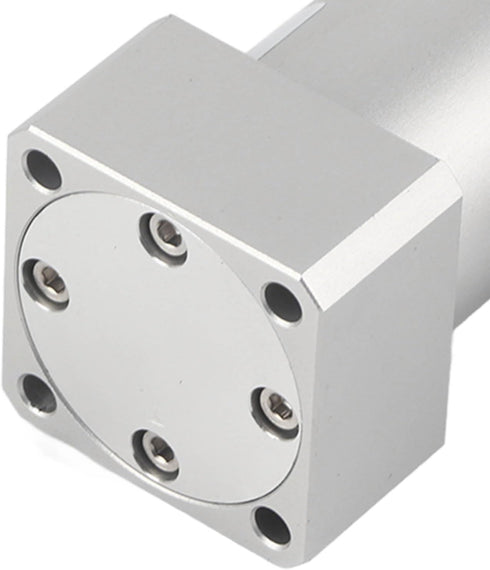

Hilitand Rotary Air Pneumatic Cylinder, 90 Degree Angle Compound Action Type (ACK25-90R)

Hilitand Rotary Air Pneumatic Cylinder, 90 Degree Angle Compound Action Type Corner Press Rotation Swing Pneumatic Components 0.15-1.0MPa(ACK25-90R)

Hilitand Rotary Air Pneumatic Cylinder, 90 Degree Angle Compound Action Type (ACK25-90R)

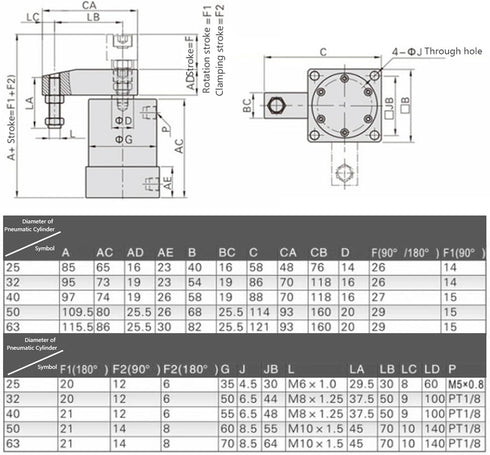

Specification: Condition: 100% Brand New Item Type: Rotary Pneumatic Cylinder Color: As Pictures Shown Material: Aluminium Alloy Inner Diameter: Approx. 25mm/0.98in Outer Diameter of Piston Rod: Approx. 14mm/0.6in Action Type: Compound ActionType Working Medium: Air (filtered through a filter above 40µm) Service Pressure Range: 0.15-1.0mpa (22~145psi) Guaranteed Pressure Resistance: 1.5MPa (215psi) Working Temperature: -20-80 Operating Speed Range: 50-200mm/s Range of Travel Tolerance: 1.0 Rotation Angle Tolerance Range: ±1.5° Buffer Type: None Pipe Diameter: M5x0.8 Installation and Use 1. When the cylinder clamps the workpiece, it must be performed within the clamping stroke, and the clamping operation cannot be performed within the rotation stroke. 2. The clamping plane must be perpendicular to the cylinder axis. After the workpiece is clamped, please do not move the workpiece. 3. Before piping the cylinder, the debris in the pipe must be removed to prevent debris from entering the cylinder. 4. The medium used in the cylinder should be filtered by a filter element above 40µm before use. 5. When the cylinder is removed and not used for a long time, pay attention to anti-rust on the surface, add anti-dust blocking caps to the intake and exhaust ports, and apply anti-rust oil to the piston rod end. Package List: 1 x Rotary Pneumatic Cylinder

Key Features

• ✅ ?90 degree rotation? The double-acting cylinder with an inner diameter of 25mm has a small appearance, can be rotated 90 degrees, has a small size and a simple structure, which can be easily carried and installed within a few minutes.
• ✅ ?High speed operation? The surface of the M5x0.8 rotary pneumatic cylinder is oxidized to extend its service life, and the composite action type cylinder can run at high speed.
• ✅ ?Aluminum alloy? The pneumatic cylinder is made of aluminum alloy, with high density and strength, and can withstand high load for a long time.

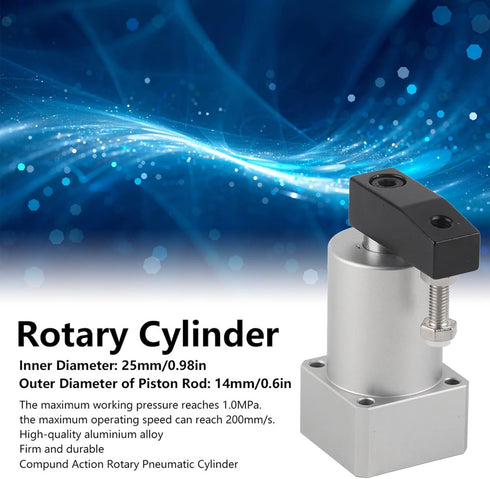

• ✅ ?Work pressure? The cylinder inner diameter is about 25 mm/0.98 inches, the piston rod outer diameter is about 14 mm/0.6 inches, the working pressure range is 0.15-1.0mpa (22~145psi), and the maximum operating speed can reach 200mm per second.
• ✅ ?Use? Before use, filter the medium used in the cylinder with a filter element above 40µm. Before piping the cylinder, remove debris from the pipe to prevent it from entering the cylinder.

✅ Product Dimensions: 0.39 x 0.39 x 0.39 inches
