IndusTec Wired 20A 12V DC Motor Polarity Reversing Rocker Switch, 3 Position DPDT Momentary Automatic Reset

IndusTec Wired 20A 12V - DC Motor Polarity Reversing Rocker 3 Position DPDT Momentary Automatic Reset Switch (On)-Off-(On) 6 Pin DPDT Double Pole Double Throw

IndusTec Wired 20A 12V DC Motor Polarity Reversing Rocker Switch, 3 Position DPDT Momentary Automatic Reset

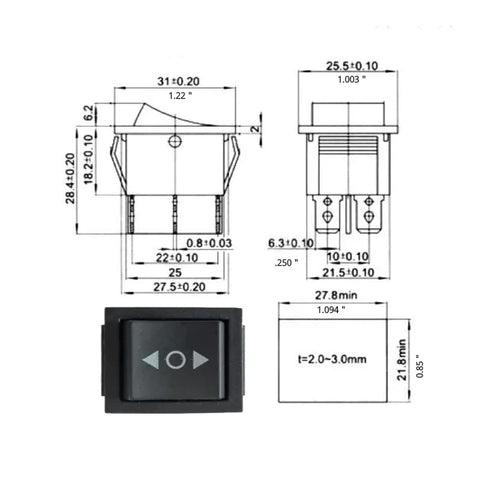

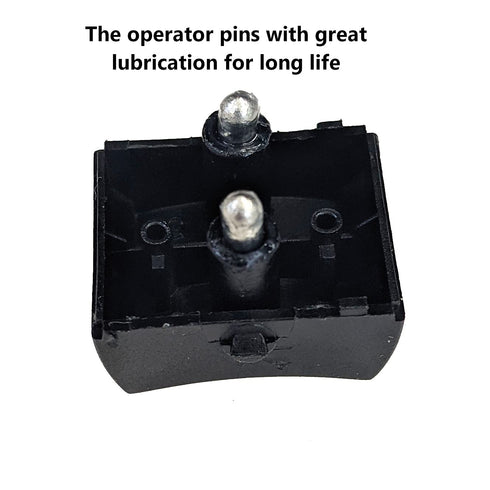

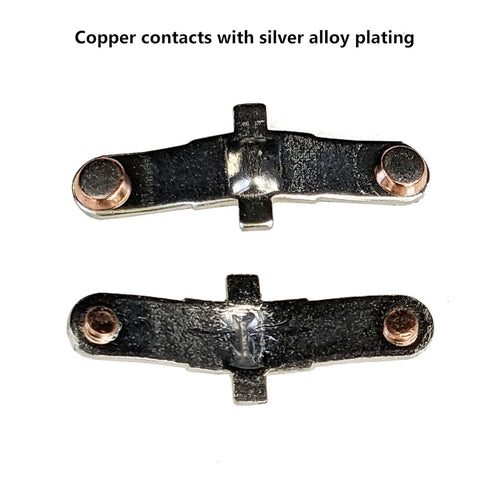

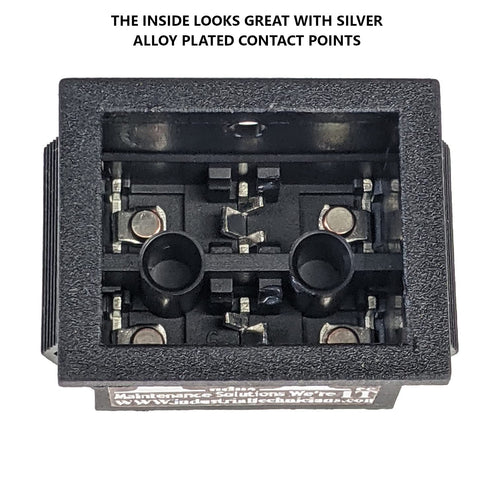

#12 gauge wires with female .250 plugs crimped and installed. Hole size is 7/8" X 1-1/16" or 22mm X 27mm. 16 Amps at 250V AC and 20 Amps at 125V AC. 20 Amps at 12V DC and 10 Amp at 24V DC. 6 Pins. Three positions. A rocker switch is a type of electrical device that is actuated by pushing a button back and forth to open or close an electric circuit. Not Waterproof. Has copper contacts with silver allow plating this switch is SURE to last! The pins on this switch are lubricated for a longer durable life. Choose Industec for all your maintenance solutions we're IT! Copper with silver alloy plating contacts The operator ITS2236RMPRW Inside the momentary or maintained To clear up voltage ratings on switches Most manufacturers print a voltage rating on the switch at the factory. Due to limited space, they normally print the highest voltage at which the switch should be used for on a continuous basis under normal conditions. Now this is a very controversial statement because not everyone's normal is the same. Lets just say dust and debris not visible, Moisture not high and no extreme temperatures that would affect the insulation or mechanical properties of the components. It needs to be said here that the switch is good for any voltage below that rating all the way to zero volts. Under the same conditions no matter whose definition of normal you use. So if the connecting device says 600V on it it is also good for 12 VDC or 24 VDC or 125 VAC and 250 VAC and so on at any value between 0 and 600 AC or DC. To clear up Amperage ratings on switches That does not mean that the amperage rating on the switch applies to all voltages and types of current. As a matter of fact it only is supposed to apply to the voltage and type stated on the switch. If you apply ohms law to voltage and amperage it would indicate that if the voltage were half the amperage could double. I Current (amperage) = Voltage divided by Resistance. Changing the voltage of the circuit does not change the resistance. However that is not true with alternating current. So you can not use ohms law to determine the amperage value for AC. And there are many more mechanical factors for both DC and AC that have profound affects on arching outside the scope of this discussion. Like materials,speed, pressure, sliding, bouncing, and so on. So it is very important to reach out to the manufacturer of any switch for amperage ratings for the voltage type and levels you need in the circuit. Maintained and Momentary explained A Maintained switch is noted several ways in different industries On Off On or Latched or Latching or Locking It is going to Latch Lock in position you or someone else places it. Used for non jogging operations like pumps fans or lights A momentary switch denoted in several ways also is (On) Off (On) or Resetting or automatic reset or springing This term means it will return spring reset to a position (usually off) when you release it. For jogging operations like lift hoist winch or door What does Pole and Throw refer to Consider pole to indicate the number of Isolated (individual) Inputs. Throw would be the number of outputs for each pole. Do not confuse the throws with positions. Any single throw switch can only have 2 positions On Off if you think about it. But a double throw switch can have 2 or 3 positions. If a double throw switch has 3 positions it is sometimes referred to as On Off On, and will probably have off as one of the positions. ( usually in the center ). If a double throw switch has only 2 positions then it will always have the input connected to one of the outputs and will not have an off position for all outputs at same time. This is sometimes referred to as On On.

Key Features

• ✅ This switch will turn itself off when released. Used for applications that require bumping or moved into place. Jogging operations like Up Down, or right left, extend retract.
• ✅ Great Replacement parts for all sorts of DC motor reversing applications such as Camper Trailer Jack, RV Controls, in and out operation, open and close for doors, up and down for windows and liftgates. Also good to slide awning. Can be used for accessories on most vehicle. Momentary / Mom / Resetting / Springing / Temporary switch is used for jogging operations such as lift, hoist, winch, door, or window resets automatically (returns to center off position) when released. Forward Reverse Switch.
• ✅ #12 wires with female .250 plugs crimped and installed. Hole size is 7/8" X 1-1/16" or 22mm X 27mm. 16 Amps at 250V AC and 20 Amps at 125V AC. 20 Amps at 12V DC and 10 Amp at 24V DC. 6 Pins. Three positions. Excellent quality and an easy simple installation. A switch is an electrical component which can make or break an electrical circuit. A rocker switch is a type of electrical device that is actuated by pushing a button back and forth to open or close an electric circuit. Not Waterproof.

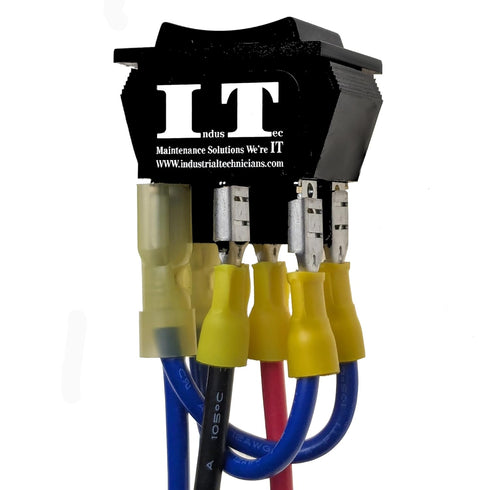

• ✅ To wire up hook red and black to 12 VDC power then use 2 blue wires for DC motor

✅ Product Dimensions: 9.5 x 1.37 x 1 inches; 0.71 ounces
