ITO (Indium Tin Oxide) Coated Conductive Glass Slides 50×50mm, Resistance 7 ohm/sq (8 Pcs)

ITO (Indium tin Oxide)Coated Conductive Glass Slides 50×50mm Resistance 7 ohm/sq (8 Pcs)

ITO (Indium Tin Oxide) Coated Conductive Glass Slides 50×50mm, Resistance 7 ohm/sq (8 Pcs)

Welcome to Qunguan, we are specializing in transparent conductive materials for laboratory use. We are your trusted supplier. 1,Photovoltaic Research 2, Liquid Crystal Display Research 3,Organic Optoelectronic Device Research 4,Sensor Development 5,Conductive Coating Research 6.Optical Component Research 7, Electrochemical Experiments 8,Biosensor Development 9,Conductive Film Preparation Regarding ITO patterning (Fabricate devices via photolithography, wet etching and lift-off), we can provide you with customized processing. It has a wide range of uses, *Transparent conductive electrodes, *Electrode arrays, *Interdigital transducers, *Radio frequency (RF) devices Etching (patterning, precision can reach 20 microns); Laser precision cutting; Precision drilling; High precision trenching;Ultra-low or ultra-high resistance customization etc. We have been providing customized machining services for top-tier global laboratories and rapidly producing samples. Customized ITO Conductive Glass Products We can also laser etch ito & fto glass or ITO-PET film. The products of the above specifications are all cut by CNC or laser, the size is accurate, and it is suitable for Lab R&D,such as electrochemical polymerization (ECP) You can also provide engineering drawings, we will customize processing for you, laser etching, laser surface notching,laser drilling, ITO has been used to mount cryosections of mouse brain and heart, ITO coverslips can be used to seal digital microfluidic devices, and some other uses that have been reported are: An aqueous solution of 20% hydrochloric acid, 5% nitric acid and a few drops of liquid detergent to promote wetting of the ITO surface will remove ITO. If this solution is heated to 55°C, it will typically etch 100 ohm ITO coating in 30-60 seconds, or if the etching is carried out at room temperature, it will take six to ten minutes. Differences in the morphology of the coating, the thickness of the coating (more conductive coatings will be thicker), and changes in the purity or concentration of the acid solution will effect the time required to remove the ITO. Please be advised that ITO coatings can be lost if they come into direct contact with mineral acids and strong organic acids. Therefore, direct contact with these agents should be avoided. After the etching process is complete, the slides should be immediately rinsed in a 10% aqueous solution of sodium carbonate to neutralize any residual acid. To avoid water spotting, blow dry the slides with pure nitrogen gas. Regarding the application of indium tin oxide (ITO), The F-22 canopy is tinted yellow is because it has a special coating that reduces its radar visibility and protects the pilot from harmful electromagnetic waves. The coating is made of a material just is indium tin oxide (ITO), which has both transparent and conductive properties, Interested friends can do similar research. The ito glass slide is made with soda lime float glass. Molten glass is floated on a pool of liquid tin under a nitrogen/hydrogen atmosphere. This high volume process results in glass which does not require grinding or polishing to achieve a high-quality finish. Float glass will typically have a strain point of 523°C, a CTE of 77-85 x 107 / °C, and a refractive index of 1.517. Typical composition of float glass is 72.6% SiO2, 0.8% B2O3, 1.7% Al2O3, 4.6% CaO, 3.6% MgO, and 15.2% Na2O. During the production, packaging and transportation of conductive glass, the surface of the glass may be contaminated by impurities such as dust and grease. Ultrasonic cleaning is generally carried out in the order of: toluene ? two ethanol ? deionized water The oil on the surface of the glass is insoluble in water, but it is soluble in organic solvents such as toluene, acetone, and ethanol. Among them, toluene has the strongest degreasing ability, so it is first washed with toluene, but toluene cannot remain on the glass surface. Since toluene is soluble in acetone, it can be washed with acetone. Not only can the residual grease be washed away, but toluene is also dissolved. Similarly, acetone does not remain on the surface of the glass. Since acetone is easily soluble in ethanol, it can be washed with ethanol. Ethanol and water are mutually soluble in any ratio, and finally ethanol is dissolved in a large amount of decompressed water. ITO/FTO conductive glass should be stored at room temperature, humidity below 65%, and stored dry; the glass should be placed vertically when stored. And conductive glass sheets should be separated by a sheet of paper to prevent sodium ions from penetrating into the IT0 conductive layer of the next sheet (see glass structure) ,while preventing the glass sheets from sticking to each other.

Key Features

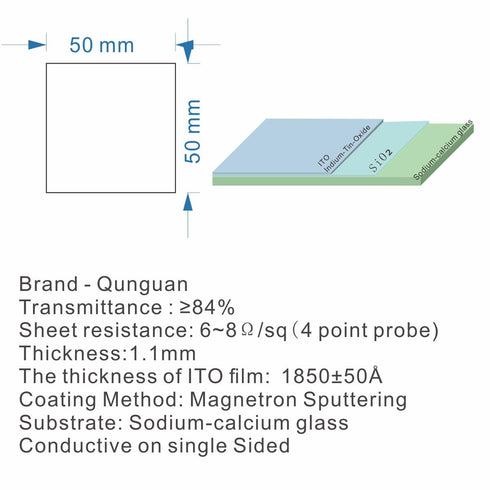

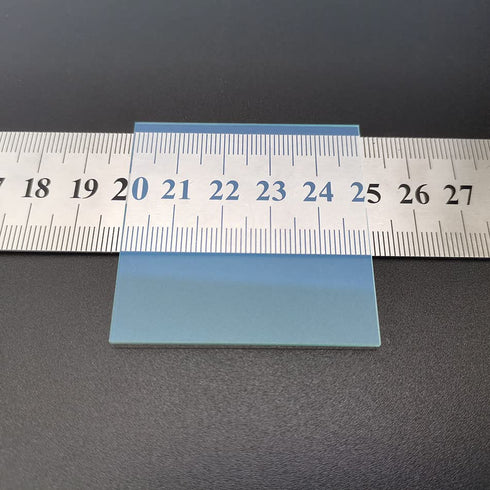

• ✅ ??Size:50mm×50mm×1.1mm,Linear molecular formula: In2O3 · (SnO2)x ,

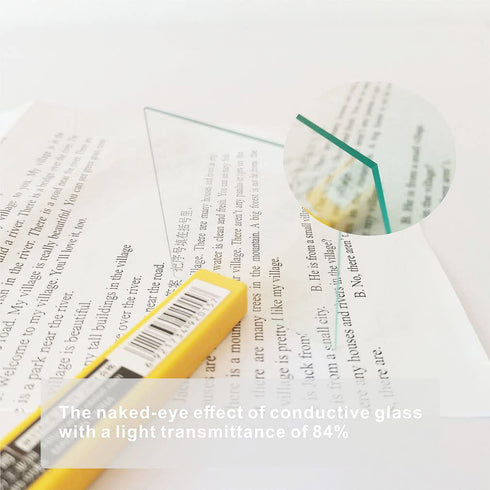

• ✅ ??Sheet resistance: 6~8 ohm/sq(4 point probe) , CAS number : 50926-11-9 ; The working temperature is lower than 600?;Transmittance: =84% , Coating Thickness: 1850Å. This product is standard size, please contact us, we can also customize the size for you, such as laser drilling, laser etching, circular cutting, about ITO/FTO glass, please tell us your requirement.
• ✅ ??ITO conductive glass, also known as Indium Tin Oxide glass, is a type of transparent conductive glass that finds extensive applications in various electronic devices and optoelectronic systems. It is a critical component in the development of modern touchscreens, liquid crystal displays (LCDs), organic light-emitting diodes (OLEDs), and other flat-panel display technologies.
• ✅ ??Processing instructions: 8 pieces of laser-cut products. The surfaces are fully conductive, making them high-quality transparent conductive materials suitable for laboratory use. ITO glass serves as a substrate for depositing thin-film solar cells due to its electrical properties and transparency. It is an excellent material for thin-film photovoltaics.
• ✅ ??Mass production process:through Magnetron sputtering to make the coating uniform and smooth,stable and firm, And perfect packaging to protect the coating and avoid breakage. It is good slide or coverslip material. ITO coated glass is widely used in mobile phone screens, OLED, electrochromic devices, electromagnetic shielding, photocatalysis, solar cells, biological experiments, Gas sensor,electrochemical experiments (electrodes),such as electrochemical polymerization (ECP) .etc
