JESSINIE 2Pcs RP-L Film Pressure Sensor Pressure Detector Flexible

2Pcs RP-L Film Pressure Sensor Pressure Detector Flexible

JESSINIE 2Pcs RP-L Film Pressure Sensor Pressure Detector Flexible

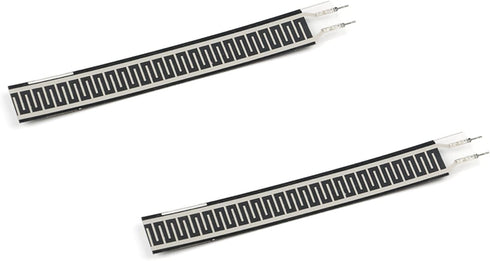

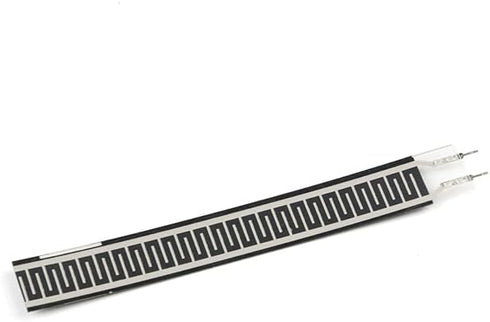

At JESSINIE, we providing a wide range of development board modules, displays, sensors, electronics, power accessories, and DIP sockets Power Your Projects with JESSINIE Development Boards Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Visit the Store Product Description RP-L resistive varistor is a flexible film sensor whose resistance value decreases as the pressure acting on the sensing zone increases. The single sensing zone sensor is equivalent to a dual-port variable resistor whose resistance value is controlled by pressure, and it is also equivalent to a switch with a certain threshold value, which is determined by the pressure and the equipment parameter setting. RP-L flexible film pressure-sensitive sensor is composed of polyester film with excellent comprehensive mechanical properties, highly conductive materials and nano-scale pressure-sensitive materials. The top layer is a flexible film and a pressure-sensitive layer composite on it, and the bottom layer is a flexible film and composite on it Conductive circuit. The two are attached by double-sided adhesive tape and the sensing area is isolated. When the sensing region is compressed, the lines disconnected from each other at the bottom layer will be conducted through the pressure-sensitive layer of the top layer, and the resistance output value of the port changes with the pressure.

Brand: JESSINIE

flexible, test measure, pressure, detector flexible, inspect, flexible industrial, 2pcs, pressure sensor, sensor, scientific, sensor pressure, scientific test Industrial & Scientific Test, Measure & Inspect Pressure & Vacuum Pressure Probes & Sensors

Key Features

• ✓ Trigger force: less than 20g, trigger when the default resistance value is less than 200k; Pressure sensing range: 20g ~ 10kg or more
• ✓ Pressure mode of action: static or dynamic (frequency within 10Hz); Resistance when not triggered: greater than 10M
• ✓ Activation time: less than 0.01S; Operating temperature:-40 ~ 85 ; Durability: more than 1 million times
• ✓ Static/dynamic pressure sensing, fast response speed, long durability life
• ✓ In-bed off-bed monitoring, sleep state monitoring, intelligent running shoes: record the intensity and frequency of pressure, intelligent switch: set the force identification to prevent misoperation, counter: record the number of times of pressure
