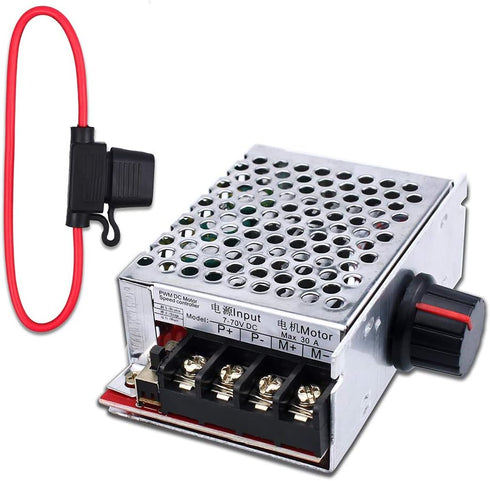

KeeYees 7-70V 30A PWM DC Motor Speed Controller Switch for 12V 24V 36V 48V with 30 Amp Fuse

KeeYees 7-70V 30A PWM DC Motor Speed Controller Switch Control 12V 24V 36V 48V with 30 Amp Fuse

KeeYees 7-70V 30A PWM DC Motor Speed Controller Switch for 12V 24V 36V 48V with 30 Amp Fuse

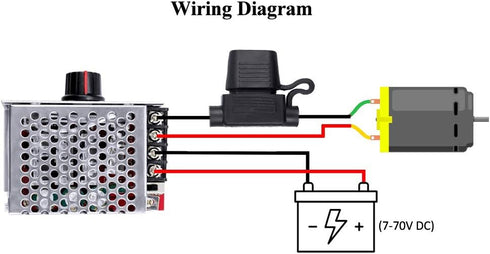

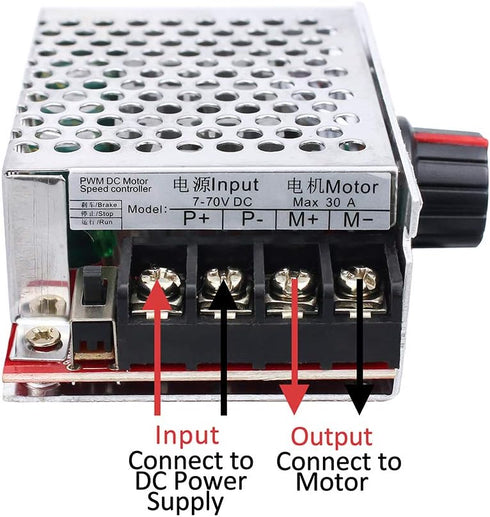

**This speed controller can only drive brushed motors, not brushless motors.** Precautions: ?The module is a DC motor speed controller and cannot be connected to AC power. ?The power of the input power supply must be greater than 1.5 times the rated power of the motor to make the motor work (note: the input voltage and the rated voltage of the motor must be consistent). Modification for Children's Car If the product is used in the modification of children's car, the output end of the speed controller can be connected with a Forward and Reverse Switch to realize the function of forward and reverse control. If there is a forward and reverse circuit regulator on the children's car, please be sure to connect the speed controller in front of the forward and reverse circuit regulator (In other words: between the power supply and the forward and reverse circuit regulator) of the children's car. Otherwise, the speed controller may be damaged. Specification: DC Motor Speed Controller Applicable voltage range: DC 7-70V Drive current: max. 30A (Please refer to the following "Control power (recommended)" for actual use current) Control power (recommended): -- 12V: within 250W -- 24V: within 350W -- 48V: within 450W -- 60V: within 500W Duty cycle adjustable range: about 1% -100% PWM frequency: 12KHz Shell size: 85mm * 58mm * 32mm Fuse: Current: 30A max Wire diameter: 2.5mm2 / 0.4cm diameter / 12AWG Length of wire: 26cm (total length including seat 30cm) Product List: 1 x DC Motor Speed Controller 1 x 30A Fuse KeeYees: Best choice in various Electronic Modules & Components, DIY Parts and Tools to support your work and design challenges from Home, School to Industrial applications!

Key Features

• ✅ ?Wide Voltage?: Wide voltage input 7-70V, maximum output current 30A (Please refer to the recommended power range for actual use current. It is recommended that 12V within 250W, 24V within 350W, 48V within 450W, and 60V within 500W. )

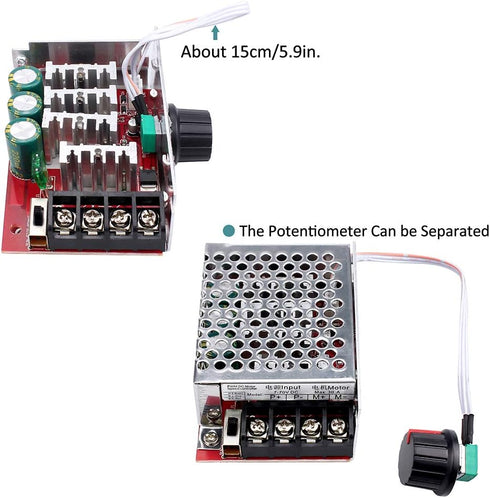

• ✅ ?Speed Control Knob?: The knob has a switch function, which can control the motor speed from 0% to 100%. Adjustable potentiometer flexible cable can be separated, the cable length is 15CM.

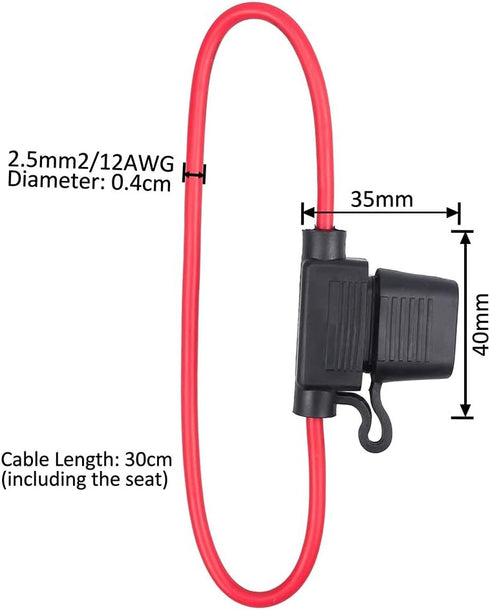

• ✅ ?30A Fuse?: This set contains a 30A fuse to prevent shorting of the motor interface. Double protection of your Motor and Motor Speed Controller.
• ✅ ?Note 1?: The power of the input power supply must be greater than 1.5 times the rated power of the motor to make the motor work (note: the input voltage and the rated voltage of the motor must be consistent).
• ✅ ?Note 2?: If there is a forward-reverse circuit regulator on the children's car, please be sure to connect the speed controller between the power supply and the forward -reverse circuit regulator of the children's car. Otherwise, the speed controller may be damaged.
