Kingston KMBVM Series Brass Mini Ball Valve, Lever, 1/4" NPT Male x NPT Female

Kingston KMBVM Series Brass Mini Ball Valve, Lever, 1/4" NPT Male x NPT Female

Kingston KMBVM Series Brass Mini Ball Valve, Lever, 1/4" NPT Male x NPT Female

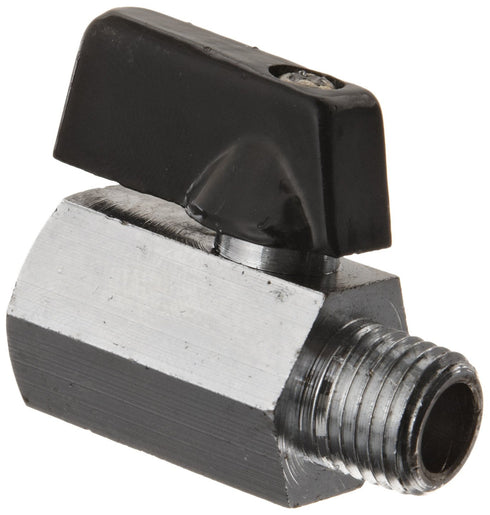

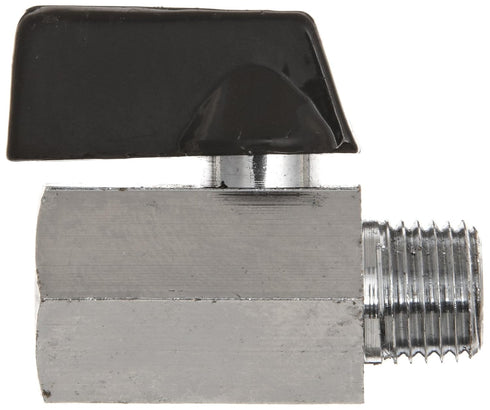

This Kingston KMBVM Series mini ball valve is made of chrome-plated brass for higher corrosion resistance than regular brass or steel, and has a lever handle for on/off manual control, and full port flow for higher operating efficiency than standard port. This inline valve has 1/4" male and female National Pipe Taper (NPT) threads for connecting a female threaded pipe and a male threaded pipe going in the same direction. This full port ball valve is pressure rated to 400 pounds per square inch (psi) at a maximum operating temperature of 400 degrees F, and is suitable for use in air, water, or inert gas applications. Ball valves use a spherical disc to control the flow between pipes, tubes, or hoses. Flow is allowed when the hole that pierces the ball-shaped disc is in line with the inlet and outlet of the valve and is blocked when the ball is horizontally swiveled 90 degrees, so that the hole of the ball is perpendicular to the opening of the valve. Ball valves can be referred to as full port or reduced port (also known as regular or standard port) depending on the inner diameter or the valve. A ball valve is full port if the hole of the ball is the same size as the inner diameter of the connecting pipeline (resulting in lower friction) and termed reduced port if the hole of the valve is one pipe size smaller than the pipe, resulting in less flow through the valve than through the shaft of the pipe. Ball valves may have a handle or lever that aligns with the ball’s position (open or closed) for manual operation. They are primarily used in air, gas, liquid, and steam applications. Kingston manufactures safety valves, check valves, and flow control valves for industrial applications. The company, founded in 1908, is headquartered in Torrance, CA.

Key Features

• ✅ Chrome-plated brass for higher corrosion resistance than regular brass or steel
• ✅ Lever handle for on/off manual control
• ✅ Full port flow for higher operating efficiency than standard port
• ✅ Inline valve for connecting two pipes going in the same direction
• ✅ Female and male NPT threads for connecting male threaded pipe fittings to female threaded pipe fittings
