LCLCTC 12V 24V M18;Input(10-30VDC), 4 8-50cm; HG18-D50P3, Laser Sensor photoelectric Switch PNP NO + NC Wires;

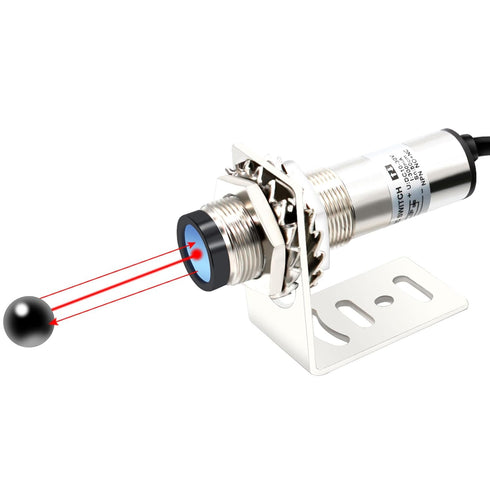

LCLCTC12V 24V Laser Sensor photoelectric Switch PNP NO + NC M18;Input(10-30VDC), 4 Wires; Detection Distance 8-50cm; HG18-D50P3, Normally Open and Normally Closed

LCLCTC 12V 24V M18;Input(10-30VDC), 4 8-50cm; HG18-D50P3, Laser Sensor photoelectric Switch PNP NO + NC Wires;

HG-18-50P3, PNP NO+NC, detection distance 80cm-500cm/3.15in-19.7in The laser photoelectric switch is a kind of photoelectric switch using the principle of laser, which detects the position and distance of the object through the detection of the laser beam. A laser photoelectric switch usually consists of a laser, a lens and a receiver. The laser emits a laser beam, which is focused by the lens and irradiates the receiver. When the laser beam is blocked by an object, the signal strength received by the receiver changes, and the trigger circuit sends out a signal or controls the circuit. Compared with traditional photoelectric switches, laser photoelectric switches have higher detection accuracy and sensitivity, and can detect very small object movement and occlusion. At the same time, the laser photoelectric switch also has higher reliability and stability, and can work normally in harsh environments. Laser photoelectric switches are widely used in robots, industrial automation equipment, automobile manufacturing, aerospace and other fields to detect the position, distance and motion state of objects

Brand: LCLCTC

distance, photoelectric, 50cm, photoelectric switch, input, hg18, switch pnp, m18, normally, d50p3 normally, lclctc12v 24v, scientific Industrial & Scientific Industrial Electrical Sensors Photoelectric Sensors

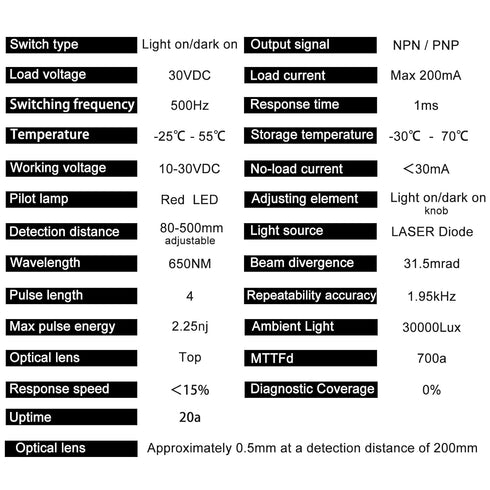

Key Features

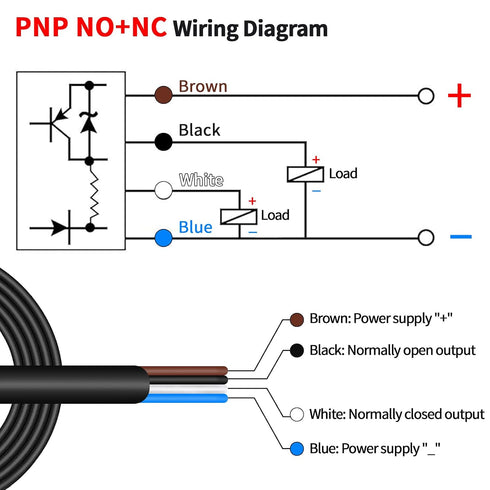

• ✓ This model is PNP NO+NC,4 wire,No or nc can be used alone or together
• ✓ Response speed: 1ms ;High sensitivity: The laser photoelectric switch has higher sensitivity and can detect extremely small changes in optical signals, and is suitable for application scenarios that require high sensitivity.

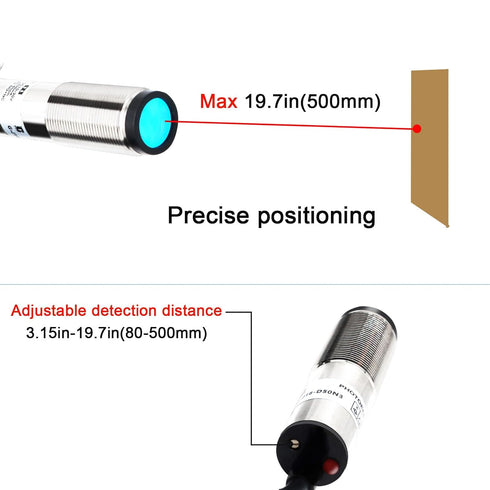

• ✓ Detection distance: 0-500mm/0-196.85in; adjustable
• ✓ With short circuit protection, reverse polarity protection, open collector
• ✓ No-load current <30mA; load voltage 30VDC; maximum load current 200mA, switching frequency: 500HZ

Product Details

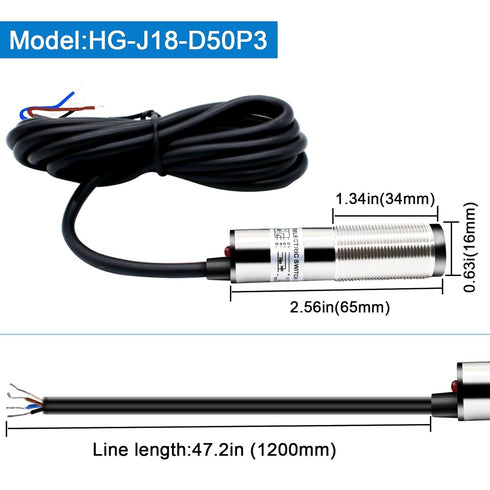

• ✓ Product Dimensions: 2.56 x 0.63 x 0.63 inches
• ✓ Item Weight: 5 ounces
