M18 Infrared Photoelectric Switch Sensor NPN NO, Easy to Install with 5M Detection Range DC 6-36V

M18 Infrared Photoelectric Switch Sensor NPN NO Easy to install Detect Accurate 5M Detection Range DC 6-36V Through-Beam Photoelectric Sensors for Arduino Robot Car

M18 Infrared Photoelectric Switch Sensor NPN NO, Easy to Install with 5M Detection Range DC 6-36V

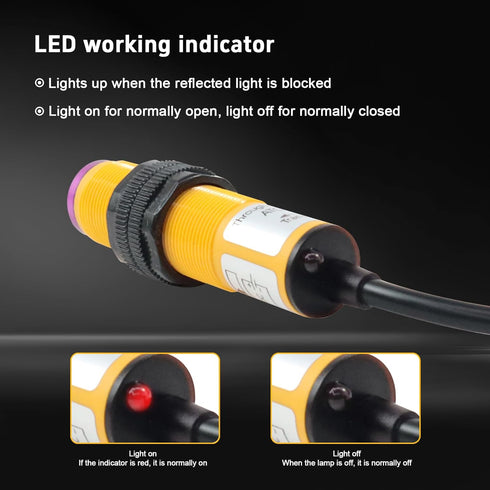

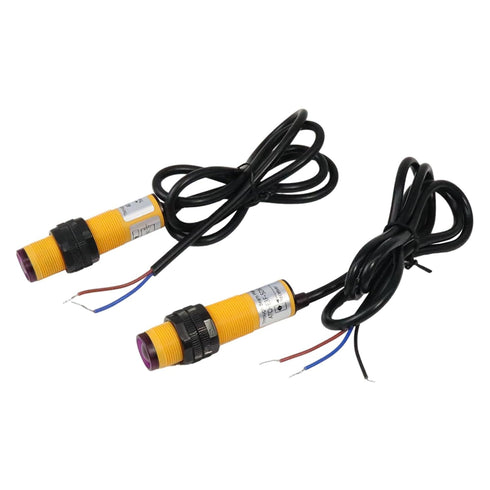

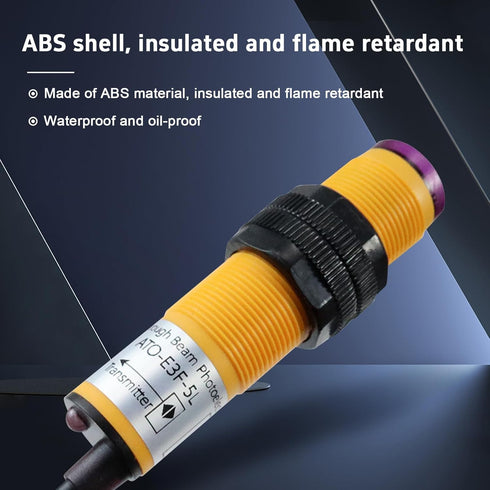

We provide a complete spectrum of industrial automation solutions, from standard to customized products such as photoelectric sensors, relays, DC transformers, waterproof brushless DC motors, and air-cooled spindle motors. Our customers are our main concern. If you have any questions or problems with our products, we are always here to answer them. Visit the Store Visit the Store Package List: 1 Pairs*M18 Infrared Photoelectric Switch Obstacle Avoidance Sensor When the reflected light is blocked, the light is on and off. Durable wire Tip: the product does not light up, this is the effect of the picture Good performance, tensile strength and bending resistance PMMA light transmittance for accurate detection and more sensitive response. Insulation and flame retardant, waterproof and oilproof, durable and anti-interference ability. When light shines onto the photoelectric switch sensor, the photosensitive component inside (typically a photodiode or a photoresistor) generates an electrical signal. The intensity of this signal depends on the intensity of the light. When an object blocks the light, the intensity of light received by the photosensitive component decreases, resulting in a change in the electrical signal. The photoelectric switch detects this change in the electrical signal and triggers corresponding actions or controls. Photoelectric switches are commonly used in automatic control systems to detect the position, distance, or presence of objects. For example, they can be employed in automatic door controls, object counting, packaging machinery, automatic lighting systems, and more.

Key Features

• ✅ ?Accurate Detection?Photoelectric switch sensor utilizes a beam blocked or reflected by the test object, detected via synchronous loop gating circuit. M18 Proximity Switch detects all objects capable of reflecting light.

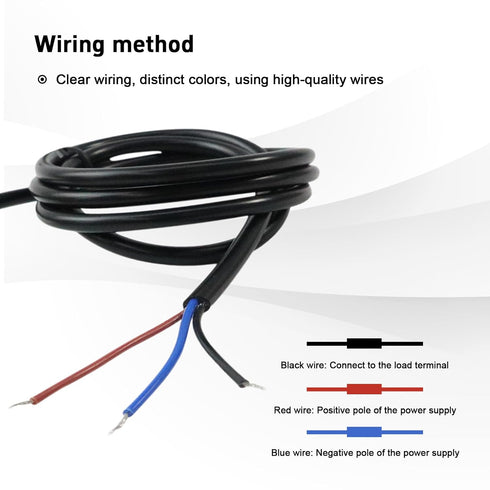

• ✅ ?Specification?Output Form: 3 Wires; Voltage: DC 6-36V; Output State: NPN NO; Detection range: 5m±10%(198in±10%); Detection range regulation: Fixed; Response time: 1ms; Connection delay: 1.5ms; Light source: Infrared light 660nm
• ✅ ?Application?Through-beam photoelectric sensors for automation, robot obstacle avoidance, assembly lines, 3D printers, limit, positioning, counting and speed testing in light industry, etc.
• ✅ ?Features?This is a photoelectric sensor integrating transmission and reception, featuring a large detection range, low interference from visible light, easy assembly, easy use, less susceptible to interference, and long service life.
• ✅ If you receive a damaged product or other problems, please contact us, we will replace it free of charge and patiently solve your problem!
