Makerfire 200A Upgraded Watt Meter with Longer Wire, High Precision Power Analyzer, Battery Tester, Voltage Amp

Makerfire 200A Upgraded Watt Meter with Longer Wire, High Precision Power Analyzer Battery testers Voltage Amp Consumption Performance Monitor with LCD Backlight Screen for RC,Solar,Wind Power,Ebike

Makerfire 200A Upgraded Watt Meter with Longer Wire, High Precision Power Analyzer, Battery Tester, Voltage Amp

Makefire professional aeromodelling equipment manufacturer, to provide you with a full set of aeromodelling equipment. Wondering how much electricity your solar system produces but don't have the right tools? A power meter is an excellent choice for you! If you simply connect this device to your solar system, you will be able to evaluate how efficiently the system is operating. 16*2 LCD backlit LCD yellow screen with black fonts, the display is clearer, and the direct sunlight does not affect the viewing data. The 12AWG soft silicone cable lengthened to 22cm can be more free to DIY the analysis, testing and troubleshooting of your DC power supply projects. Accurate measurement hardware and software program calibration can make our product voltage and current error within the range of 0.1. The wire is made of high-quality tinned copper core, which has strong carrying capacity and low resistance. The core is wrapped by soft silicone. The wattmeter has a heat dissipation hole design, which can dredge the internal heat to the outside, and ensure the stable output of the device for a long time. This is an 8-in-1 tester, which can be used in many fields such as the detection of solar cells and model aircraft batteries. When the input voltage of the power meter (such as lower than 9V) cannot be displayed on the screen, you can connect an external DC power supply with a voltage of about 12V through PIN1 and PIN2 to supply power to the power meter and let its display display test data. (PIN1 is negative, PIN2 is positive)

Key Features

• ✅ MULTIFUNCTIONAL RC WATTMETER Evaluate RC battery charging efficiency. Measure power and energy consumption of any battery powered device. It is convenient to calculate the voltage, current, power, discharge amount and discharge time of the aircraft, and calculate the force effect of the multi-rotor aircraft. Predict model aircraft flight time and choose the best propeller/most efficient motor. Check wiring and connector power loss.
• ✅ REAL-TIME READING DC current: 0-200A, resolution 0.01A, continuous current 50A; working voltage: 8-60V (when the test voltage is less than 8v, it needs external 12v power supply), resolution 0.01V; measurement power: 0-6554W, resolution 0.1W; measurement power: 0-6554Wh, resolution 0.01Wh. The current determines the battery capacity, the continuous current determines the discharge time, and the maximum instantaneous current determines the internal structure protection circuit of the battery.

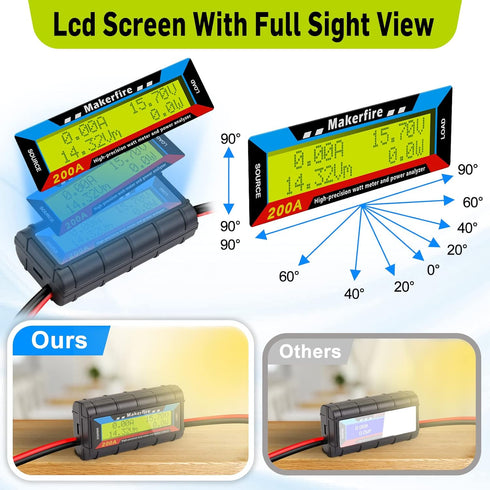

• ✅ UPGRADED BACKLIGHT LCD SCREEN The improved power analyzer uses a combination of 16*2 yellow LCD backlight screen and black text, and the contrast is more vivid. Even under direct sunlight, all parameters of the power analyzer can be clearly seen, no need to worry about Test anywhere.
• ✅ COOLING EXHAUST PORT A plug-in auxiliary battery, the wattmeter has an exhaust port design, which can dredge the internal heat to the outside. Using high-quality tin-copper core, strong load capacity and low resistance.

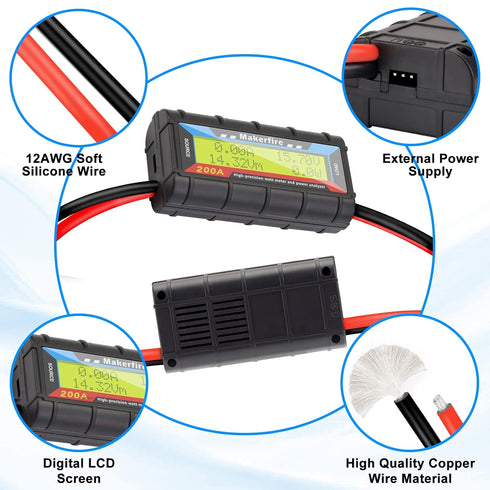

• ✅ LONGER CABLE AND WIDER APPLICATION The new power meter is equipped with longer 12AWG flexible silicone wire (12cm+10cm), no longer limited by wire length during analysis, testing and troubleshooting of DIY DC power projects. Not only Suitable for your RC drone flight (aircraft) battery, and a professional tool for DC circuits, solar systems, boats, RVs and battery backup systems.

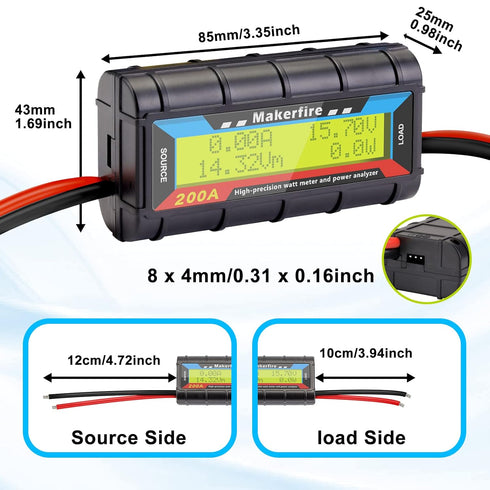

✅ Product Dimensions: 3.35 x 1.69 x 0.98 inches; 3.84 ounces
