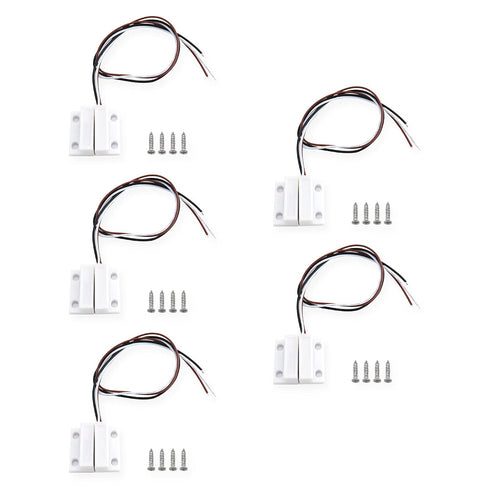

MC-38 5pcs Magnetic Reed Switch NC NO COM Surface Mount Wired Door Window Contact Sensor with Adhesive Paper for Home

Magnetic Reed Switch NC NO COM Surface Mount Wired Door Window Contact Sensor with Adhesive Paper for Home Security and Burglar Alarm Systems MC-38 5pcs

MC-38 5pcs Magnetic Reed Switch NC NO COM Surface Mount Wired Door Window Contact Sensor with Adhesive Paper for Home

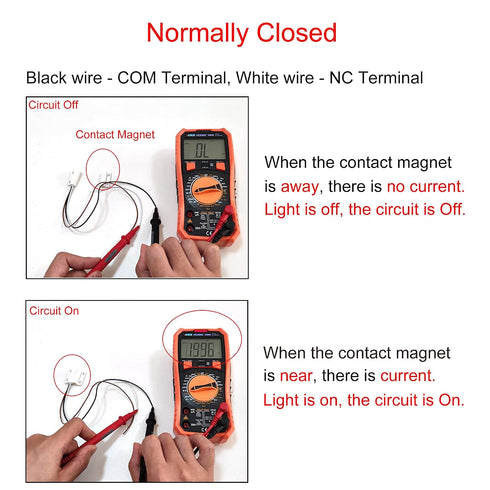

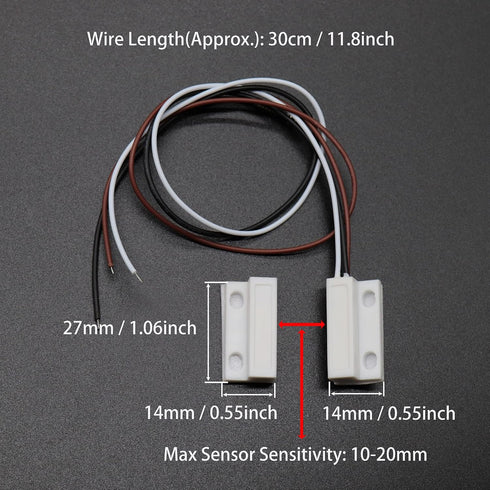

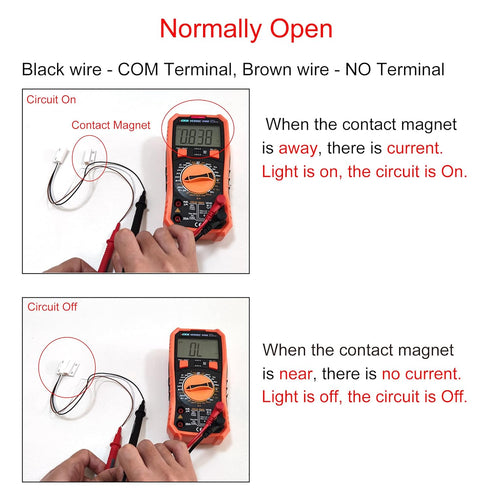

Differences of NC, NO, NC/NO Normally Closed(NC): When the switch is close to the magnet, the circuit is conductive(light on); when the switch is separated from the magnet, the circuit is not conductive(light off). Normally Opened(NO): When the switch is separated from the magnet, the circuit is conductive(light on); When the switch is close to the magnet, the circuit is not conductive(light off). NC/NO Combined: The switch has 3 contact types: NC/NO/COM, you can choose to connect two of the contacts(NC-COM or NO-COM). PLEASE NOTE A magnetic door contact can only provide a switching signal to the device. It cannot directly load the power supply and cannot be directly connected to the lamp. Specifications: Model: MC-38 Contact Type: NC/NO/COM Maximum Sensor Sensitivity: 10-20mm Load Current: 150mA Withstand Voltage: DC 0-36V Working Voltage: DC 0-24V Mounting Hole Distance: 18mm / 0.71inch Size(Approx.): 27 x 14 x 8mm / 1.06 x 0.55 x 0.31inch (L*W*H) Each Wire Length(Approx.): 30cm / 11.8inch Wire Type: 1007#/24#320mmUL Housing Material: ABS Package Content: 5pcs x Magnetic Door Switch 20pcs x Mounting Screws

Brand: VictorsHome

switch com, burglar alarm, magnetic reed, magnetic, wired door, scientific, sensor, switch, window contact, scientific industrial, mount wired, 5pcs Industrial & Scientific Industrial Electrical Controls & Indicators Industrial Switches Reed Switches

Key Features

• ✓ MATERIAL - The switch housing is made of ABS flame retardant material and the reed switch is resistant to high temperature and deformation.
• ✓ NORMALLY CLOSED/NORMALLY OPENED - This switch has 3 contact types: NC/NO/COM, you can choose to connect two of the contacts according to your need.
• ✓ ACTUATION DISTANCE - 10-20mm transmitting distance. The contact has fast reflection and accurate detection.
• ✓ WORKING CONDITIONS - When the magnetic door is energized, the voltage is controlled at DC 0V-24V and the load current cannot exceed 150mA.

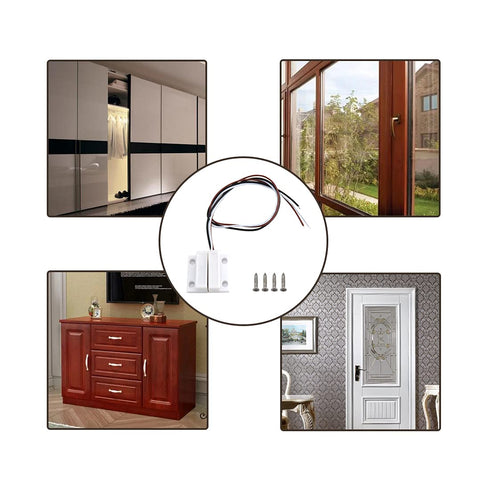

• ✓ WIDE APPLICATIONS - Work with all access control and burglar alarm systems. Can be installed in wooden or aluminum alloy doors and windows.

Product Details

• ✓ Wattage: 3.6 watts
• ✓ Material Type: Acrylonitrile Butadiene Styrene
