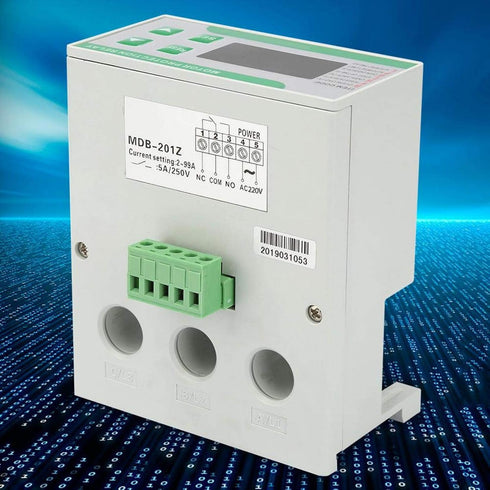

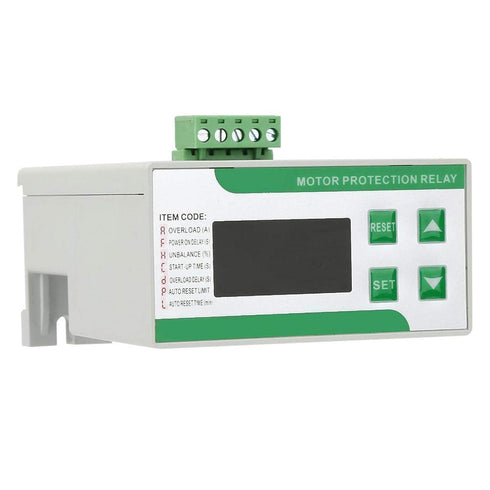

MDB-201Z Motor Relay, Digital Electric Motor Protector with Three Reset Mode, Overload Phase Loss Protector

MDB-201Z Motor Relay, Digital Electric Motor Protector with Three Reset Mode, Overload Phase Loss Protector 220V AC/380V AC(AC380V)

MDB-201Z Motor Relay, Digital Electric Motor Protector with Three Reset Mode, Overload Phase Loss Protector

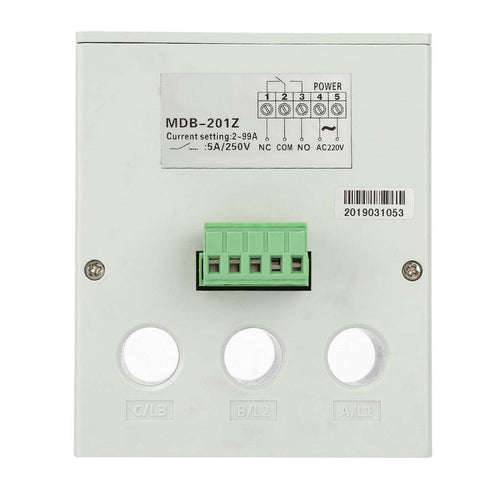

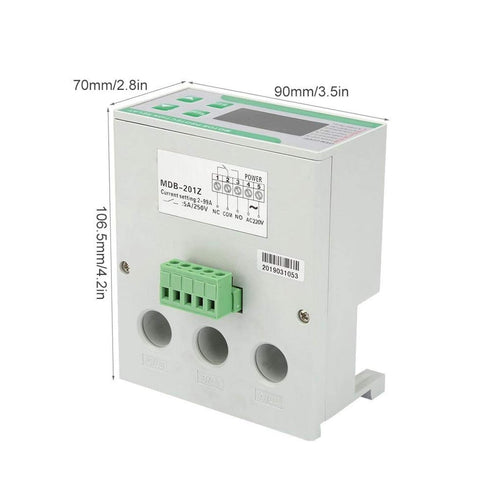

Specification: Model: MDB-201Z Structure type: integrated Rated voltage: 220V AC; 380V AC(Optional) Frequency: 50/60Hz Current range: 2-99A, ±2% Power-on delay: 0-999s Unbalance: 0-40% (0 is off) Startup time: 1-30s Overload delay: 1-30s Number of automatic resets: 0-99 times (0 is off) Automatic reset time: 1-99 minutes Indication mode: Three-phase current display in real time, LED light indicates each fault Setting method: Direct digital setting (accurate, high precision) Reset mode: manual reset, automatic reset, power-off reset form: 1 set of normally open normally closed passive contacts capacity: 5A/250VAC Dimension: (length * width * depth): 90*70*106.5mm (display part) Installation method: 35mm rail Package list: 1 * Motor Protector Note: The actual product color may deviate from the photo due to light. There may be a slight deviation in the measurement of product.

Key Features

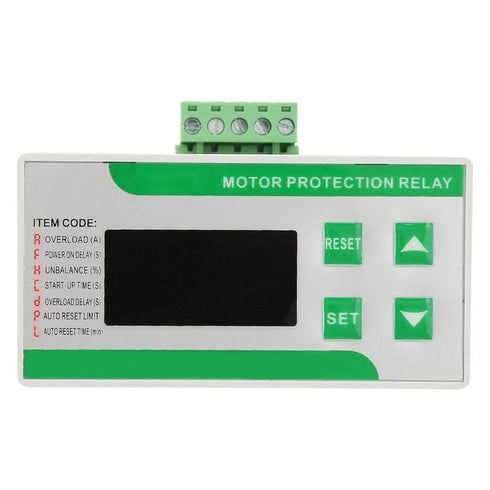

• ✅ INTELLIGENT DIGITAL DISPLAY MOTOR PROTECTOR: Intelligent digital display motor protector is a kind of electrical equipment with compact and integrated structure, which is suitable for 35mm rail installation. This protector adopts LED digital tube display, which can display three-phase current in real time, and supports 50/60Hz frequency.

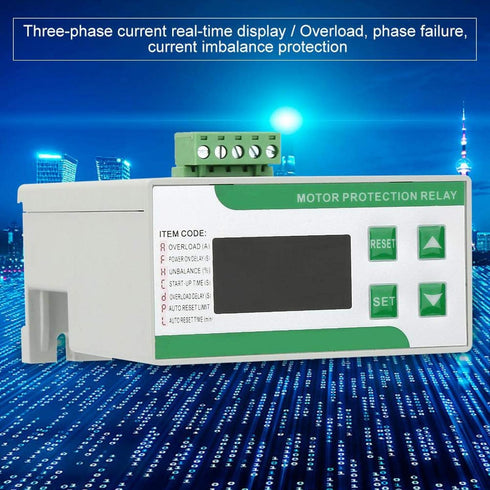

• ✅ FUNCTION: In addition to the digital display function, the intelligent digital display motor protector also has a variety of important functions, such as overload , phase failure and current unbalance . These functions can better ensure the operation of the equipment.
• ✅ MULTIPLE RESET METHODS: After a fault or equipment shutdown, the user can choose to reset manually or automatically. In addition, the size of the intelligent digital display motor protector is about 90 x 40 x 106.5 mm/3.5 x 1.6 x 4.2 inches (display part), which is compact in size and easy to install.
• ✅ WIDE RANGE OF APPLICATIONS: Due to its reliability and versatility, intelligent digital display motor protector is widely used in many fields. Especially in equipment such as water pumps, cranes, elevators and machine tools, this kind of protector can play an important role in protecting the normal operation of the equipment and prolonging its service life.
• ✅ MULTIFUNCTIONAL: Intelligent digital display motor protector is a compact, reliable and multifunctional electrical device, suitable for 35mm rail installation. It has LED digital tube display, all-round functions and multiple reset methods to choose from.
