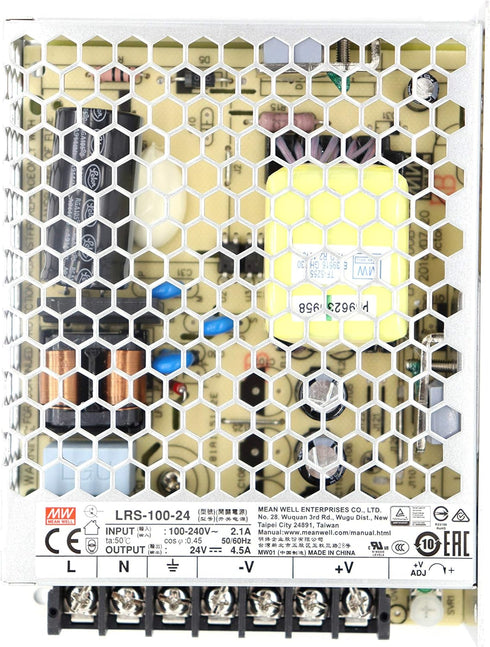

MEAN WELL LRS-100-24 AC/DC Switching Power Supply, 108W 24V 4.5A for 3D Printer, Lab Equipment, LED Stripe

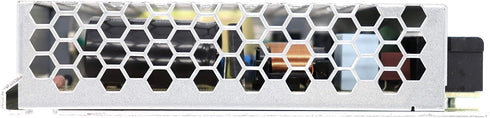

MEAN WELL LRS-100-24 AC/DC Switching Power Supply 108W 24V 4.5A Single Output for 3D Printer, Lab Equipment, LED Stripe and Industrial Applications

MEAN WELL LRS-100-24 AC/DC Switching Power Supply, 108W 24V 4.5A for 3D Printer, Lab Equipment, LED Stripe

MEAN WELL LRS Series LRS-100-24 is the 108W 4.5A 24V power supply, be used on LED stripes, 3D Printer and Camera System. EU RoHS: Compliant ECCN (US): EAR99 Type: Switching Style: Enclosed Input/Output Type: AC/DC Number of Outputs: 1 Output Type: Fixed Output Voltage (V): 24 Output Current (A): 4.5 Output Power (W): 108 Minimum AC Input Voltage (V): 85 Maximum AC Input Voltage (V): 264 Minimum DC Input Voltage (V): 120 Maximum DC Input Voltage (V): 373 Minimum Isolation Voltage: 3750VAC Line Regulation: 0.5% Load Regulation: 1% Maximum Input Current (A): 1.9(Typ) Input Frequency (Hz): 47 to 63 Tolerance (%): ±2 Efficiency (%): 90(Typ) Configurable: No Input Connector Type: Screw Terminal Block Output Connector Type: Screw Terminal Block Power Indicator: Yes Ripple & Noise: 100mV(Max) Medical: No Minimum Operating Temperature (°C): -30 Maximum Operating Temperature (°C): 70 Product Weight (g): 340 Pin Count: 7 Mounting: Screw Package Height: 30mm Package Length: 129mm Package Width: 97mm About the quotation for batch order, please contact with the seller directly.

Key Features

• ✅ Universal AC Input / Full range, Output Voltage: 24V; Rated Current & Rated Power: 4.5A, 108W
• ✅ High OperatingTemperature Up to 70?
• ✅ Protections: Short Circuit / Overload / Over Voltage
• ✅ Compliance to IEC/BS EN/EN 60335-1 and IEC/BS EN/EN61558-1, -2-16 for household appliances
• ✅ Non-PFC, most economical models

✅ Product Dimensions: 5.12 x 3.74 x 1.18 inches
