Midzoo 1.5 inch 128128 16-bit 65K Communicate Pi/STM32 RGB OLED Module Pixels Colors Embedded SPI Interface Controller

1.5 inch RGB OLED Module 128128 Pixels 16-bit 65K Colors Embedded SPI Interface Controller Communicate for Raspberry Pi/STM32

Midzoo 1.5 inch 128128 16-bit 65K Communicate Pi/STM32 RGB OLED Module Pixels Colors Embedded SPI Interface Controller

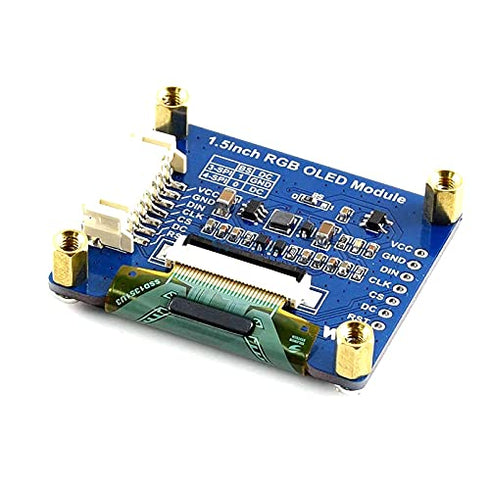

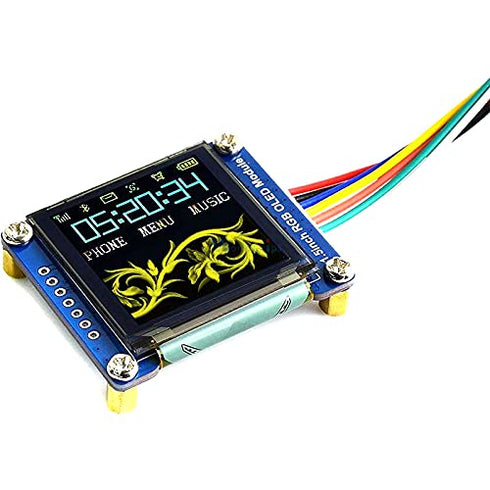

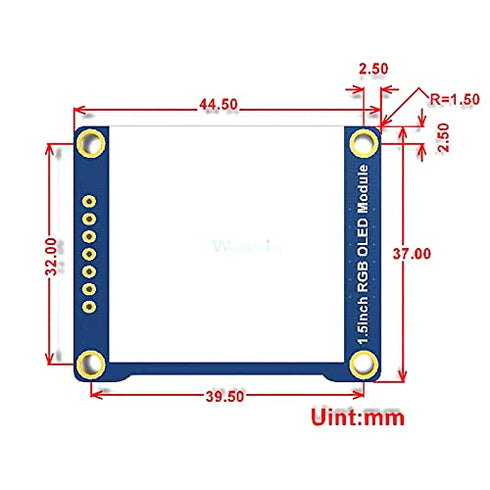

1.5 inch RGB OLED Module 128128 Pixels 16-bit 65K Colors Embedded SPI Interface Controller Communicate for Raspberry Pi/STM32 This is a general RGB OLED display Module, 1.5inch diagonal, 128x128 pixels, 16-bit high color (65K colors), with embedded controller, communicating via SPI interface. Features: 128x128 high resolution, 65K colors, clearly displays colorful images Supports 4-wire SPI OR 3-wire SPI interface, configured via onboard resistor Specifications: Driver: SSD1351 Interface: 4-wire SPI, 3-wire SPI Display color: RGB, 65K colors Resolution: 128x128 Viewing angle: >160 Operating voltage: 3.3V / 5V Dimension: 44.5 x 37 (mm) Interface: Port: Description VCC: Power (3.3~5V input) GND: Ground DIN: Data input CLK: Clock data input CS: Chip selection, low active DC: 4-wire SPI: Data/Command selection (high for data, low for command) 3-wire SPI: Connects to GND, keeps low RST: Reset, low active There are two available drive interfaces for this RGB OLED module: 4-wire SPI (default) and 3-wire SPI: BS DC 4-wire SPI 0 DC 3-wire SPI 1 Connects to GND Package Includes: 1 X 1.5inch OLED Display Module 1 X PH2.0 7P dupond cable

Brand: Midzoo

colors, bit, 65k, midzoo, embedded spi, industrial scientific, oled, interface controller, rgb oled, spi interface, colors embedded, bit 65k Industrial & Scientific Industrial Electrical

Key Features

• ✓ 1.5 inch RGB OLED Module 128128 Pixels 16-bit 65K Colors Embedded SPI Interface Controller Communicate for Raspberry Pi/STM32
