Mini Linear Actuator 10mm Stroke 40N 12V Force 9lbs Electric Motion Actuators for Robotics with Mounting Brackets

Stroke 10mm 40N 0.4 Inch Mini Linear Actuator 12V Force 9lbs Electric Linear Motion Actuators High Speed 0.6"/sec for Robotics,Home Automation with Mounting Brackets

Mini Linear Actuator 10mm Stroke 40N 12V Force 9lbs Electric Motion Actuators for Robotics with Mounting Brackets

The interior of the aircraft adopts powder metallurgy technology for a longer lifespan. ? How to select a push rod: ? 1: Confirm if the installation space is sufficient; 2: How long does it take to travel (retract range); 3: Choose the appropriate speed based on the weight of the object being pushed.

Key Features

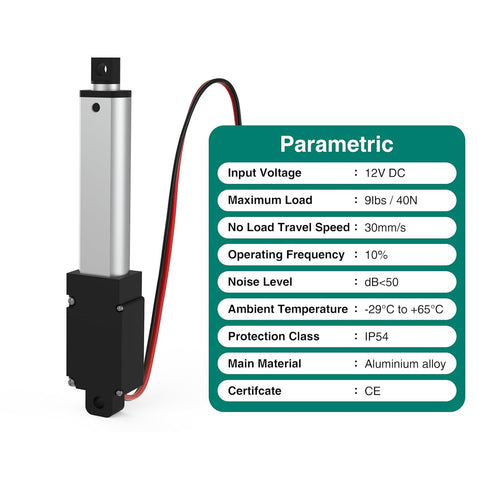

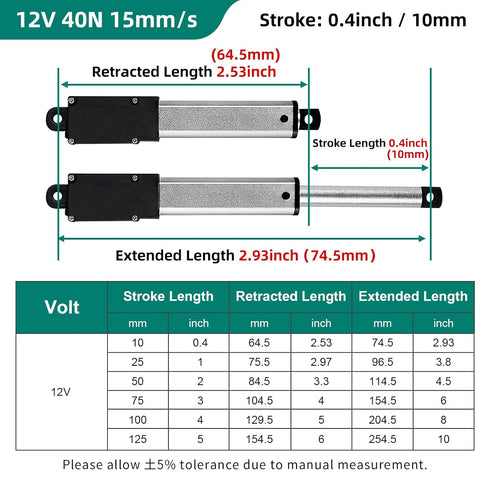

• ✅ ?Specification?: 12 Volt Electric Micro Stroke Linear Actuator Stroke length = 10mm(0.4"); Retracted length =64.5mm(2.53"); Extended Length= 74.5mm(2.93"); Travel speed =0.6 inches/sec (15 mm/s);Maximum current draw = 2.5Amps; Maximum Load = 9lbs(40N).

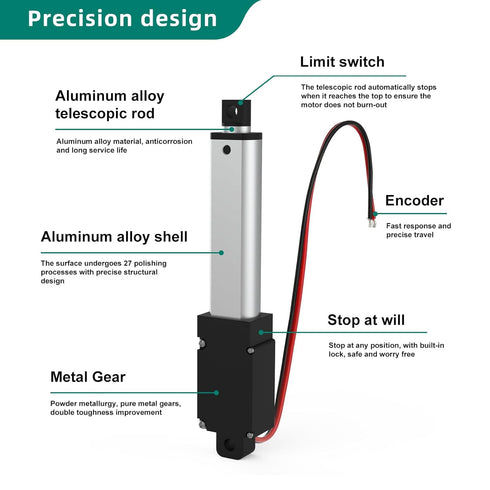

• ✅ ?Durable and Sturdy? Made of high quality aluminum alloy material and equipped with high-performance motor; Built in limit switch, stop at any position, automatically stop at the top, with IP54 protection, short circuit protection, and reliable.

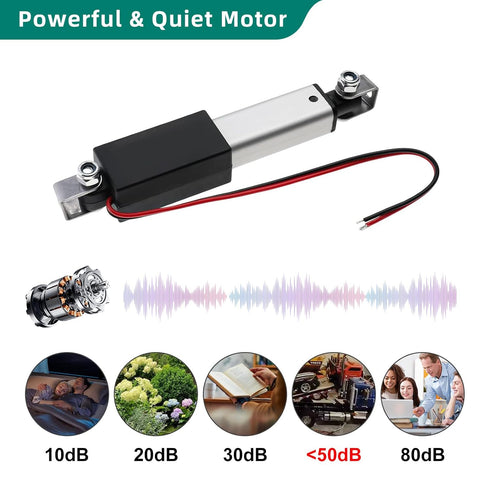

• ✅ ?Low Noise Design?The Linear Actuator adopt low noise motor, the noise level below 50 dB, This makes it suitable for use in hospitals, massage centers, and other noise-sensitive environments.
• ✅ ?Wide Application?Widely used in electric lifting systems, Intelligent Range Hood, Fan Blades, Cabinets, Window Opener, Robotics, and Home Automation. electric recliners, Ideal for medical chairs, electric equipment, camera racks, electric sofas, cameras, etc.

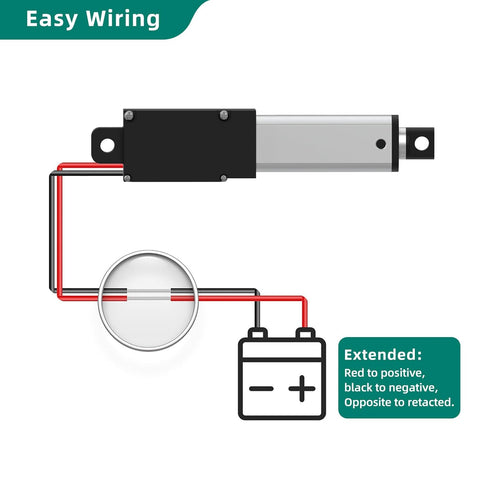

• ✅ ?Easy Install & Safe?Quick mounted by using brackets, and easy connect the actuator to your 12-volt safe power supply. Package contains 1 mini linear actuator and 2 bracket sets.
