N C MORIN 31/pc 61/pc (10) or Kit Hurricane Shutter Bolt Storm Panel Anchoring System

31/pc or 61/pc Kit Hurricane Shutter Bolt Storm Panel Anchoring System (10)

N C MORIN 31/pc 61/pc (10) or Kit Hurricane Shutter Bolt Storm Panel Anchoring System

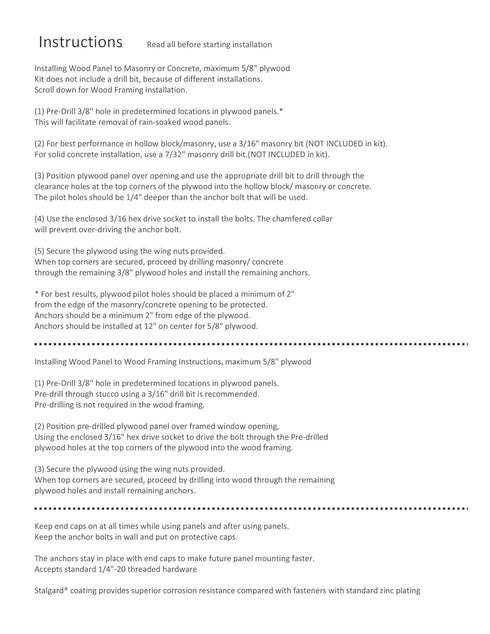

Installing Wood Panel to Masonry or Concrete, maximum 5/8" plywood Kit does not include a drill bit, because of different installations. Scroll down for Wood Framing Installation. (1) Pre-Drill 3/8" hole in predetermined locations in plywood panels.* This will facilitate removal of rain-soaked wood panels. (2) For best performance in hollow block/masonry, use a 3/16" masonry bit (NOT INCLUDED in kit). For solid concrete installation, use a 7/32" masonry drill bit.(NOT INCLUDED in kit). (3) Position plywood panel over opening and use the appropriate drill bit to drill through the clearance holes at the top corners of the plywood into the hollow block/ masonry or concrete. The pilot holes should be 1/4" deeper than the anchor bolt that will be used. (4) Use the enclosed 3/16 hex drive socket to install the bolts. The chamfered collar will prevent over-driving the anchor bolt. (5) Secure the plywood using the wing nuts provided. When top corners are secured, proceed by drilling masonry/ concrete through the remaining 3/8" plywood holes and install the remaining anchors. * For best results, plywood pilot holes should be placed a minimum of 2" from the edge of the masonry/concrete opening to be protected. Anchors should be a minimum 2" from edge of the plywood. Anchors should be installed at 12" on center for 5/8" plywood. Installing Wood Panel to Wood Framing Instructions, maximum 5/8" plywood (1) Pre-Drill 3/8" hole in predetermined locations in plywood panels. Pre-drill through stucco using a 3/16" drill bit is recommended. Pre-drilling is not required in the wood framing. (2) Position pre-drilled plywood panel over framed window opening, Using the enclosed 3/16" hex drive socket to drive the bolt through the Pre-drilled plywood holes at the top corners of the plywood into the wood framing. (3) Secure the plywood using the wing nuts provided. When top corners are secured, proceed by drilling into wood through the remaining plywood holes and install remaining anchors.

Brand: N C MORIN

bolt storm, storm panel, scientific, anchors, industrial scientific, anchoring system, kit, panel, storm, shutter, fasteners, shutter bolt Industrial & Scientific Fasteners Anchors Bolt Anchors

Key Features

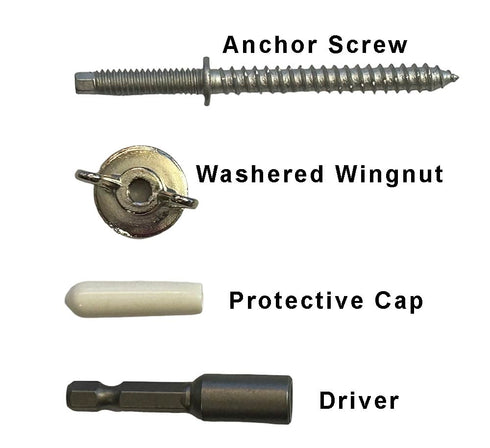

• ✓ 10 Kit includes 10 DeWALT bolts anchors, 10 wing nuts, 10 protector caps and 1 driver
• ✓ 20 Kit includes 20 DeWALT bolt anchors, 20 wing nuts, 20 protector caps and 1 driver
• ✓ Install instruction and information shown below and on a left image.
• ✓ Made of Carbon Steel w/ Silver Stalgard Coating
• ✓ Keep end caps on at all times while using panels and after using panels. Keep the end caps on at all times while using panels and after using panels.
• ✓ The anchors stay in place with end caps to make future panel mounting faster.

Product Details

• ✓ Color: Silver
• ✓ Material Type: Carbon Steel
