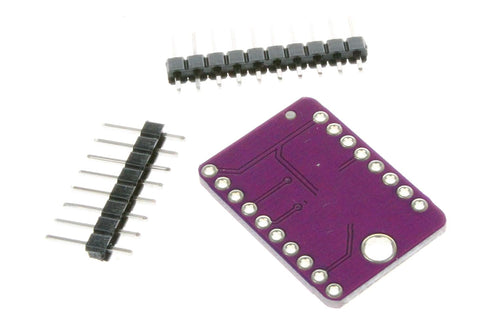

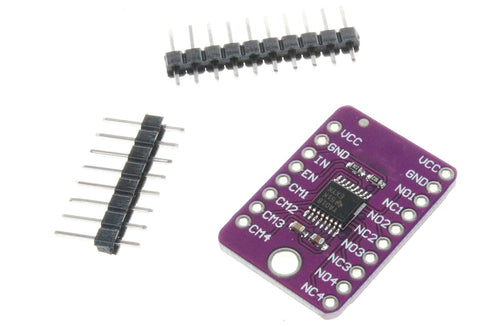

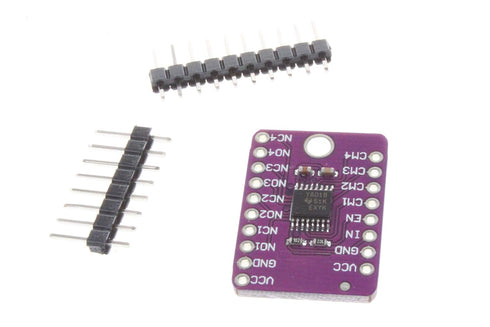

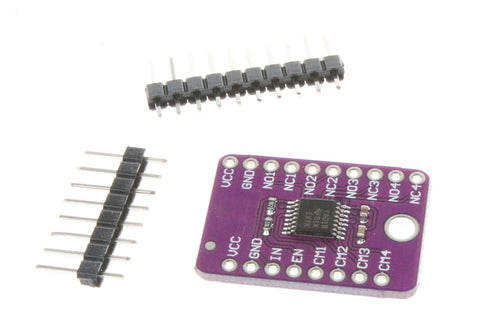

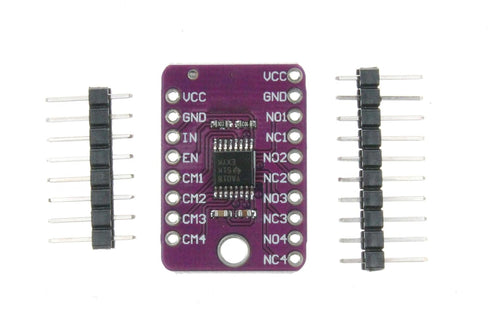

NOYITO TS3A5018 10Ohm Quad Channel SPDT Analog Switch Module
SKU: PGABL1009140
VENDOR: NOYITO
You Save: $1.40 (10%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.
NOYITO TS3A5018 10Ohm Quad Channel SPDT Analog Switch Module
NOYITO TS3A5018 10Ohm Quad Channel SPDT Analog Switch Module
Features Low ON-State Resistance (10 O) Low Charge Injection Excellent ON-State Resistance Matching ON-state resistance (ron): 7 Ohm ON-state resistance match (ron): 0.3Ohm ON-state resistance flatness (ron(flat)): 5Ohm Low Total Harmonic Distortion (THD) 2.3-V to 3.6-V Single-Supply Operation Control Inputs are 5-V Tolerant Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II Turn-on/turn-off time (tON/tOFF) :3.5 ns/2 ns Charge injection (QC): 2 pC Bandwidth (BW): 300 MHz OFF isolation (OISO): -48 dB at 10 MHz Crosstalk (XTALK): -48 dB at 10 MHz Total harmonic distortion (THD): 0.2% Leakage current (ICOM(OFF)): +/-5 µA Power-supply current (I+) : 2.5 µA Applications Sample-and-Hold Circuit Battery-Powered Equipment Audio and Video Signal Routing Communication Circuits Package Inclucded: 1pcs NOYITO TS3A5018 10O Quad Channel SPDT Analog Switch Module
Key Features
- ✅ The TS3A5018 is a quad single-pole double-throw (SPDT) analog switch that is designed to operate from 2.3 V to 3.6 V. This device can handle both digital and analog signals, and signals up to V+ can be transmitted in either direction.
- ✅ Low ON-State Resistance (10 O)
- ✅ Low Charge Injection
- ✅ Excellent ON-State Resistance Matching
- ✅ Low Total Harmonic Distortion (THD) ,2.3-V to 3.6-V Single-Supply Operation
- ✅ NOYITO TS3A5018 10O Quad Channel SPDT Analog Switch Module Doucement
