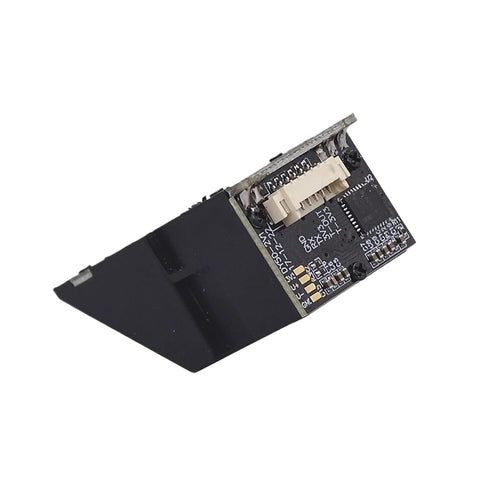

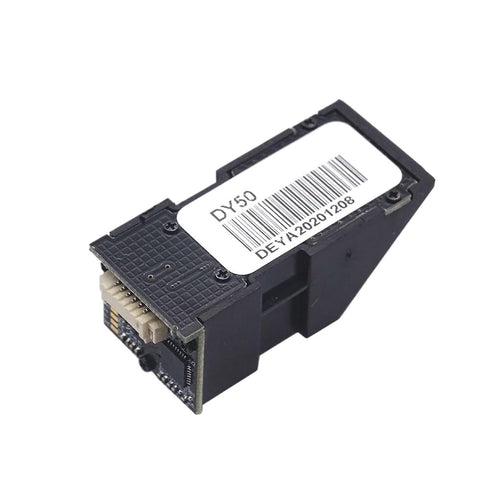

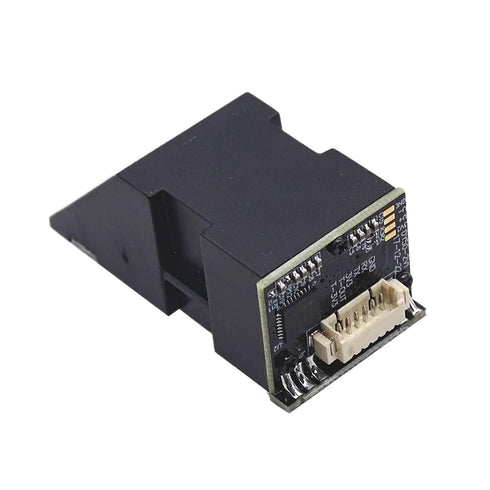

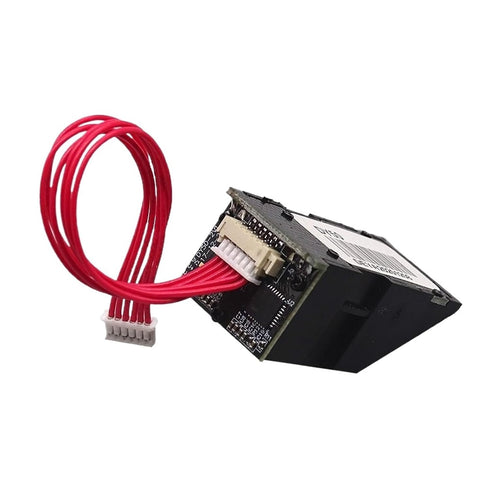

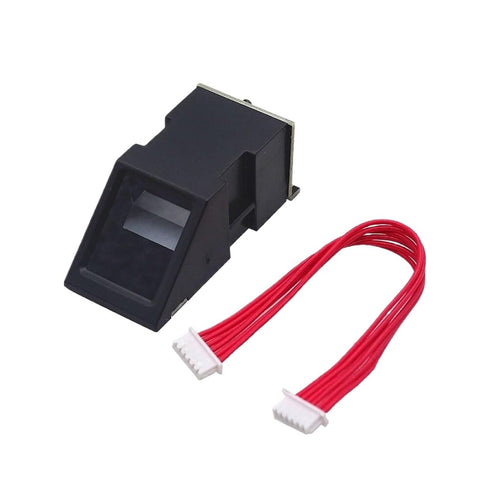

NXGCKQIK AS608 STM3251 Optical Fingerprint Identification Module for MCU Board attendance Access

AS608 Optical Fingerprint Identification Module for STM3251 MCU Board attendance Access Development/Fingerprint Acquisition

NXGCKQIK AS608 STM3251 Optical Fingerprint Identification Module for MCU Board attendance Access

Sensor Blocks Item DescriptionSupply voltage: DC 3.6 ~ 6.0V / 3.3V Supplying <;120mA <;140mA <;1.0 seconds Window size: 14 18 mm Matching mode: Match mode (1:1) Search mode (1: N) Signature File: 256 bytes Template files: 512 bytes Storage capacity: 1,000 Safety level: five (from low to high: 1,2,3,4,5) <;0.001% (security level 3) <;1.0% (security level 3) <;1.0 seconds (1:500, the mean) PC Interface: UART (TTL logic level) or USB2.0 / USB1.1 Communication baud rate (UART): (9600 N) bps where N = 1 ~ 12 (default value N = 6, ie 57600bps) Working environment: Temperature: -20 - +50 Relative Humidity: 40% RH-85% RH (non-condensing) Storage environment: Temperature: -40 - +85 <;85% H (non-condensing) Dimensions (L W H): Split: Fingerprint sensor: 56 20 21.5mm -One: 56 20 21.5mm Hardware connection: Module via a serial communication interface, directly with 3.3V or 5V power microcontroller communication: Module data transmission feet (2 Foot TD) connected to the data bit machine receiving end (RXD), data receiver module feet (3 feet RD) connected to the data sender bit machine (TXD). For the RS-232 level (for example: PC machine) for PC communication, increase the level conversion between the module and the host computer Circuitry (e.g.: MAX232 circuit)

Brand: NXGCKQIK

attendance access, acquisition, fingerprint acquisition, as608 optical, electrical wiring, mcu board, as608, mcu, access development, wiring, development fingerprint, identification module Industrial & Scientific Industrial Electrical Wiring & Connecting Terminal Blocks Sensor Blocks
