OG3 Dekatron Counting Tube for Counting Applications
SKU: PGABL1865704
VENDOR: 1UA
You Save: $7.99 (14%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.

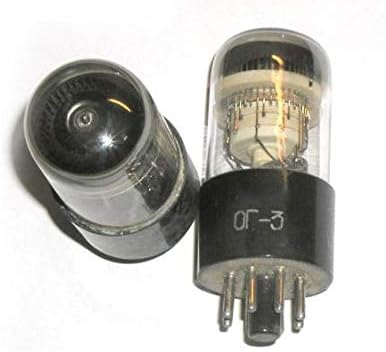

OG3 Dekatron Counting Tube
OG3 Dekatron Counting Tube for Counting Applications

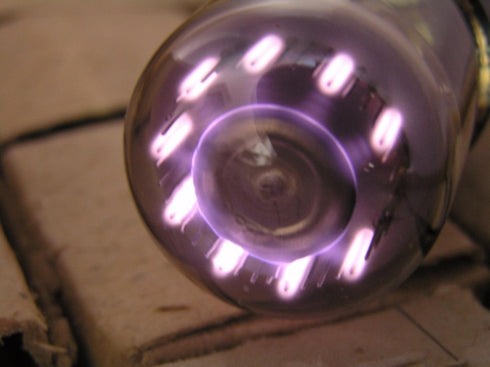

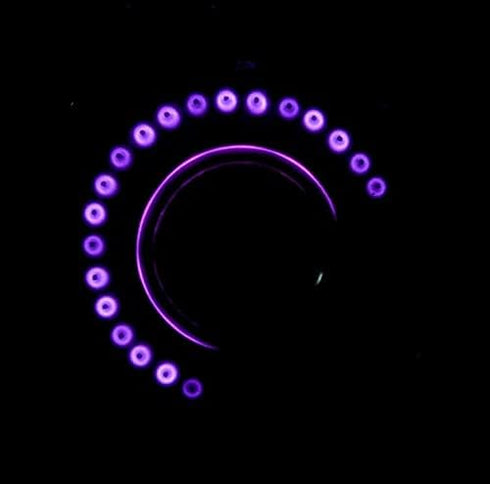

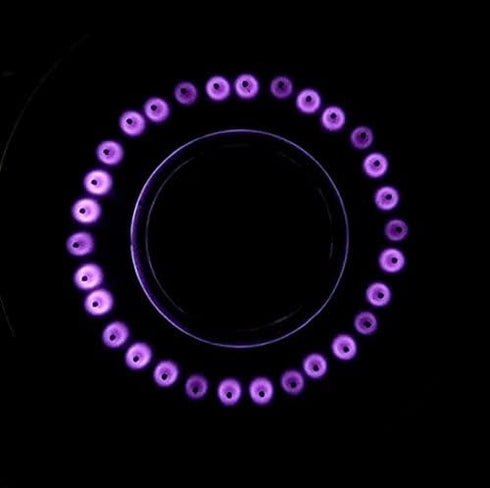

The OG-3 is a single-pulse dekatron with 40 cathodes and an unusual extra output cathode. 20 kHz counting speed, helium-hydrogen fill, octal base. Light color - PURPLE. Counting direction bidirectional Operation single pulse Sort counting tube Base K8A Socket K8A Zero position Pin 1 Counting steps 10 Number of guides 3 Gas filling Argon Tube diameter max. mm 33 Tube height max. mm 76 Max. counting speed kHz 20 Supply volt. min. V 420 Supply volt. typ. V 450 Maintaining voltage min. V 170 Maintaining voltage typ. V 190 Maintaining voltage max. V 210 Anode/cath. current min. µA 600 Anode/cath. current typ. µA 700 Anode/cath. current max. µA 800 Power supply power min. mW 315 Guide bias volt. min. V 40 Guide bias typ pulse op. V 40 Guide bias volt. max. V 50 Guide signal voltage pulse Vp 110-140 (125) Guide signal pulse duration min µs 17-22 Reset pulse duration min. µs 2-5 Pinout: PIN 01 G3 PIN 02 K1-9 PIN 03 G2 PIN 04 NC PIN 05 G1 PIN 06 A PIN 07 Guide3 (K0) PIN 08 K0 Bi-directional single-pulse decimal counting tube. Argon filled.
Key Features
- ✅ single-pulse dekatron with 40 cathodes
- ✅ 20 kHz counting speed
- ✅ helium-hydrogen fill
- ✅ octal base
- ✅ Light color - PURPLE
