OONO DIN Rail Mount 30A/300V, 2x12 Position Screw Terminal Block Distribution Module
SKU: PGABL1217514
VENDOR: CZH-LABS
You Save: $3.98 (13%)
Hurry! Only 10 Left in Stock!
Free Shipping Across the United States
All orders within the United States qualify for 100% free shipping.
Fast Processing & Dispatch
All orders are shipped within 1 business day after purchase.
30-Day Free Returns
Not satisfied? You can return your order for free within 30 days after delivery.

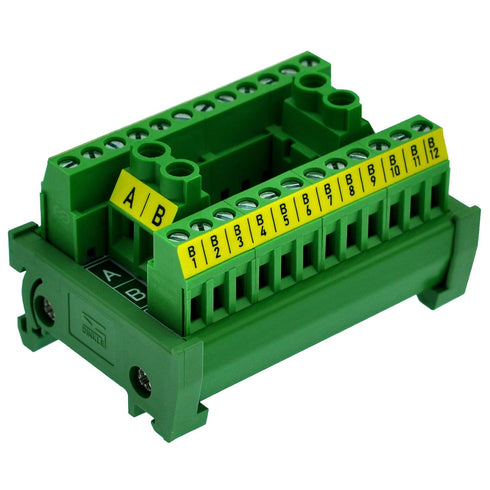

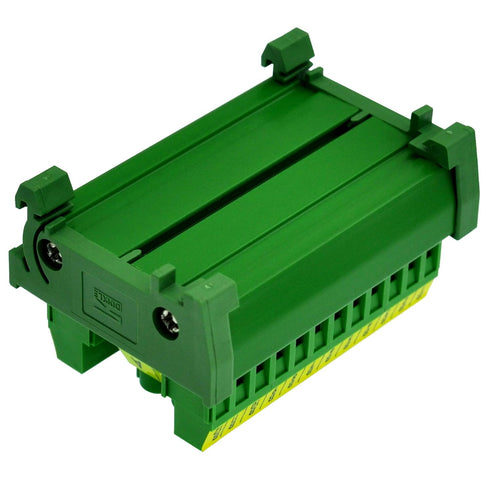

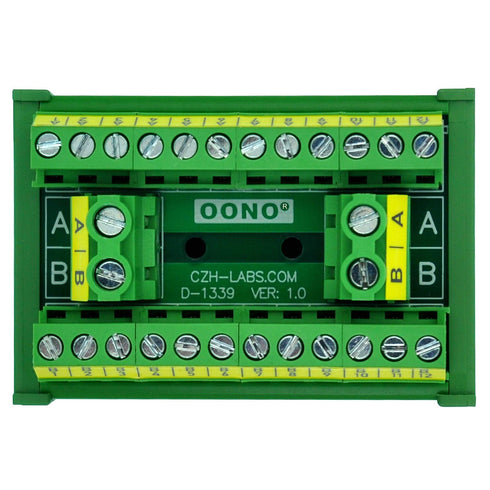

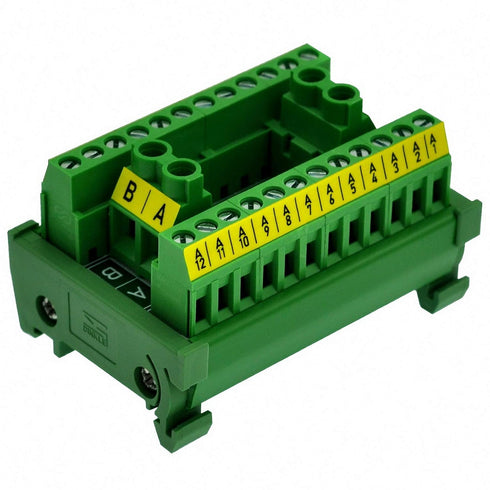

OONO DIN Rail Mount 30A/300V 2x12 Position Screw Terminal Block Distribution Module.
OONO DIN Rail Mount 30A/300V, 2x12 Position Screw Terminal Block Distribution Module
1, DIN Rail mount 30Amp 300V 2x12 position screw terminal block distribution module. Support for multiple module extension connections. 2, A / B position maximum current 30Amp(each position). A1~A12 total maximum current 30Amp(total positions). B1~B12 total maximum current 30Amp(total positions). A1~A12 / B1~B12 position maximum current 20Amp(each position). Maximum voltage 300V. 3, A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, Rated voltage 300V, rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. 4, A1~A12 / B1~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 20Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass. 5, High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
Key Features

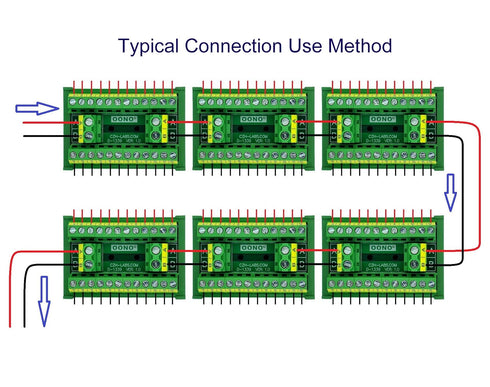

- ✅ DIN Rail mount 30Amp 300V 2x12 position screw terminal block distribution module. Support for multiple module extension connections.
- ✅ A / B position maximum current 30Amp(each position). A1~A12 total maximum current 30Amp(total positions). B1~B12 total maximum current 30Amp(total positions). A1~A12 / B1~B12 position maximum current 20Amp(each position). Maximum voltage 300V.
- ✅ A / B terminal blocks, Pitch 7.62mm/0.3", Wire range 26AWG ~ 10AWG / 4.0mm square, Rated voltage 300V, rated current 30Amp. Strip length 8mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.
- ✅ A1~A12 / B1~B12 terminal blocks, Pitch 5.0mm/0.197", Wire range 26AWG ~ 12AWG / 2.5mm square. Rated voltage 300V, rated current 20Amp. Strip length 7mm. Screws - M3,steel, Cr3+ Zn plated. Pin header and Cage - Brass.

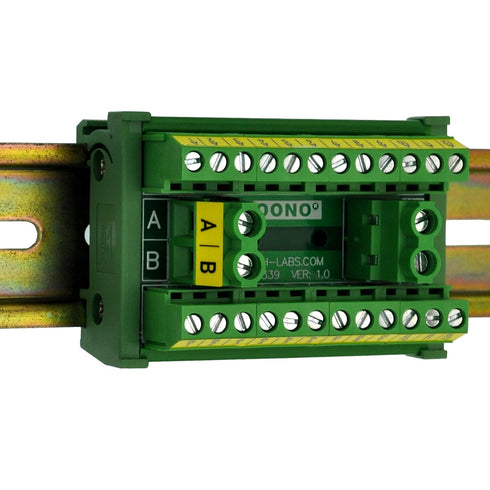

- ✅ High quality Taiwan DINKLE fireproof nylon material DIN rail mount carrier (not China low quality carrier), can support width 35mm rail.
Shipping & Guarantees
- ✅ FREE standard shipping within the United States (3–6 business days)
- ✅ 100% money-back guarantee for lost or damaged items
- ✅ Secure checkout with encrypted payment processing
- ✅ Shipping via UPS, FedEx, and USPS
- ✅ Ships to lower 48 states only (no PO Boxes / APO / FPO)
Returns
- ✅ 30-day hassle-free returns
- ✅ Items must be unused and in original packaging
- ✅ Full refund if item is not delivered
- ✅ Guaranteed delivery within 6–7 business days
Payment Methods
✅ Credit Cards, PayPal, Shop Pay, Apple Pay, Google Pay, Amazon Pay, Meta Pay
Customer Support
✅ Questions? Contact us at Support@GiftAbay.com
We respond within 24 hours on business days.
SEO Title:
Keywords:
Category: Industrial & Scientific
Subcategories: Industrial Electrical, Wiring & Connecting, Terminal Blocks, Ground Circuit Terminal Blocks
